Control Devices EDUS39-605
16 Controls
2.4 DCS302C71 Central Remote Controller

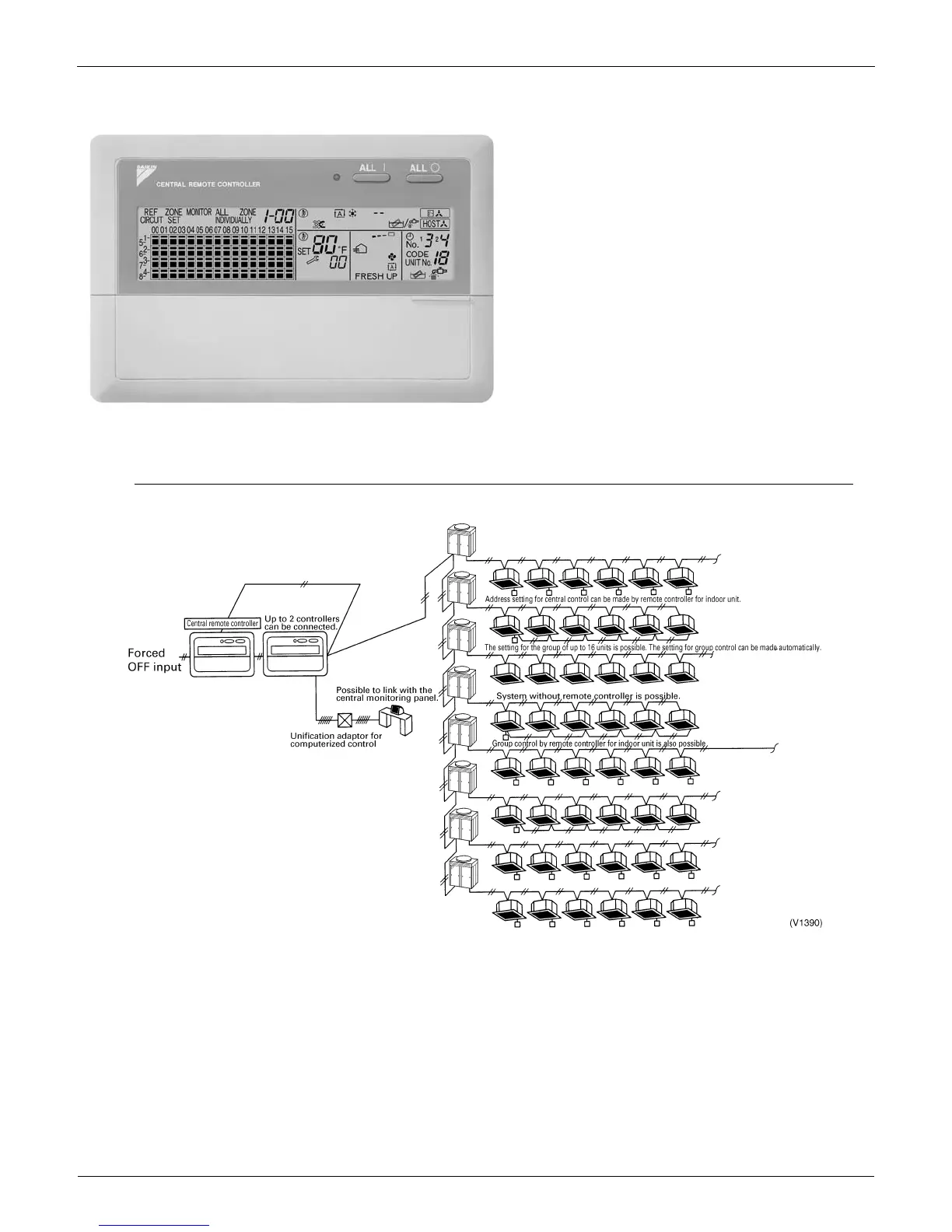

2.4.1 System Configuration
System Outline
You can connect up to 64 groups of indoor units
(maximum 128 units) and operate or monitor ON/OFF,
temperature settings, and so forth, by individual zone or
together.
Up to 2 units are connectable within 1 system and up to
4 units in case of the double central control mode.
Executes zone control for up to 64 zones and is
designed for operation efficiency.
Error contents are displayed in code so that
maintenance and inspections can be conducted
immediately.
1 schedule timer and up to 4 unified on/off controllers
can be connected to a single unit, and you can easily
extend the central control system according to building
size and purpose.
Applicable wiring methods include bus and star in
addition to series wiring.
