Daikin BRC1C71 - Part Names and Functions

EDUS39-605 Control Devices
Controls 65
2.8.5 Part Names and Functions
3P073677-15T
Be sure to use the touch pen for operation of the touch panel of the intelligent Touch Controller.
Operating with an object other than the touch pen provided may cause damage and failure.
Color LCD with Touch Panel
Provides a display for monitoring
and operation.
Be sure to use the touch pen
provided for operation.
PCMCIA Card Slot
Used when updating the
intelligent Touch Controller
software to a newer version.
Touch Pen
Use the touch pen for operation.
Be sure to use the touch pen for operation.
Use caution not to lose the touch pen.
When the pen is lost, contact the dealer
you purchased the product from.

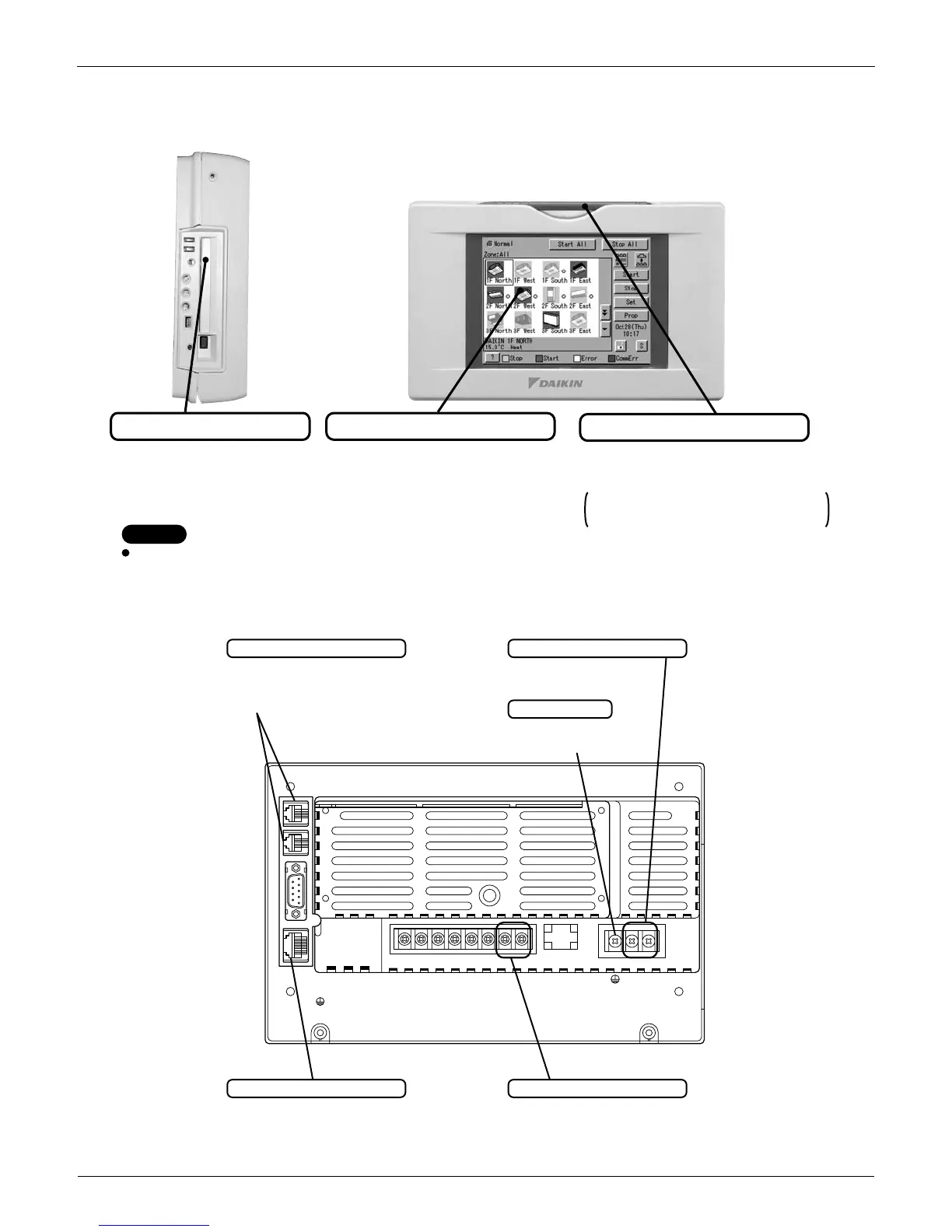

Front and Side View
NOTE
Terminals on the Back of intelligent Touch Controller
LINE
COM L0Dil Pi3 COM Pi2 Pi1 F2 F1 24
VAC
COM
24
VAC
PHONE
RS-232C LAN
Modem connector for AIRNET
When using AIRNET service,
connect it to the telephone line.
AIRNET service is not free, but a contract
for this service and an optional inner type
modem are required, separately.
Terminal block for power supply
Connect to AC24V power supply.
Terminal size is M4.
Terminal block for D3-NET communication
The terminal size of the terminal block
for communication with indoor units is
M3.5.
Ethernet connector for web
When monitoring and operating the indoor
units using the optional Web and E-mail
function software sold separately, connect
to LAN via Ethernet cable.
Earth terminal block
Securely connect the
earth wire.
Terminal size is M4.
