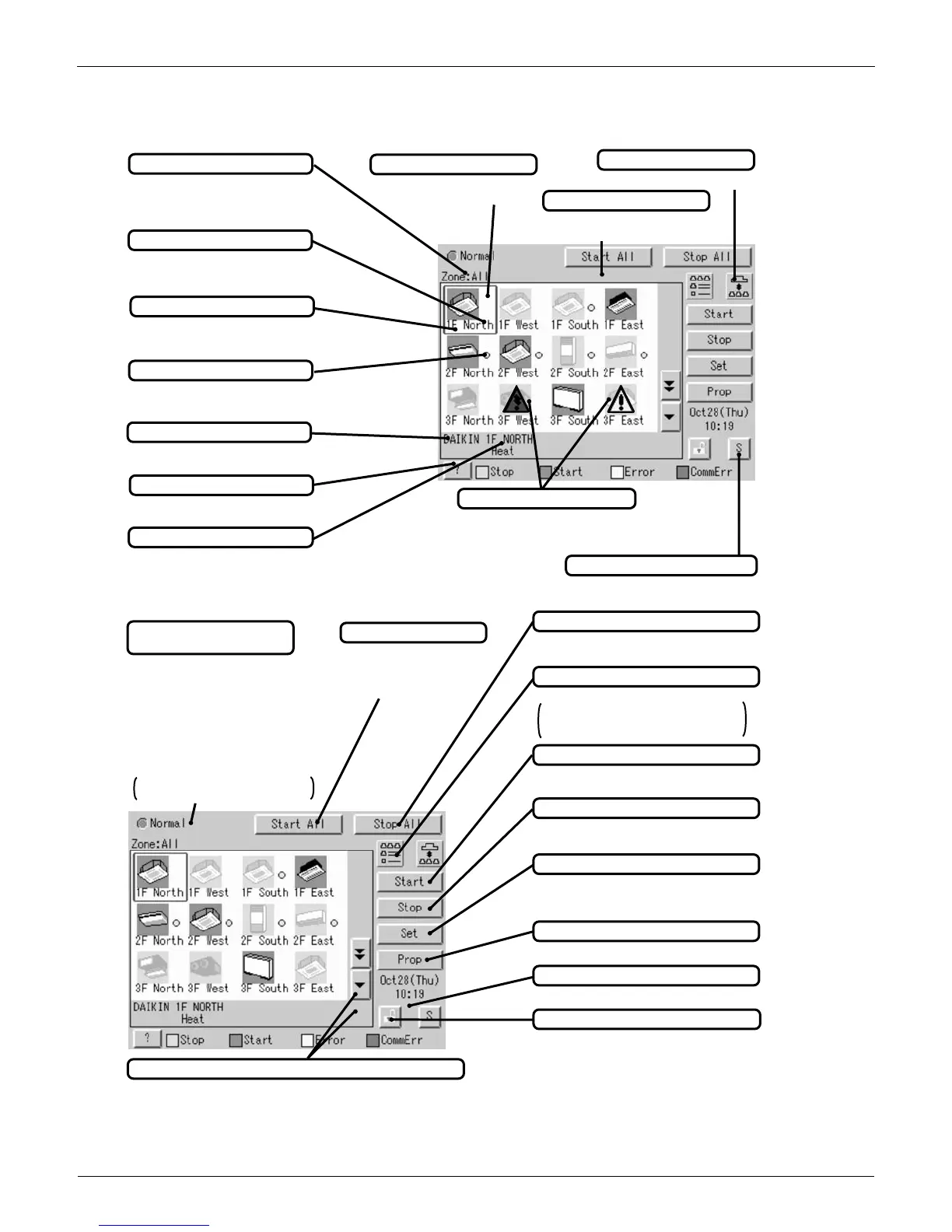

2.8.6 Monitoring Screen Labels and Functions
75˚F
Contents of the List Currently Displayed
yWhen Group List is displayed
“Zone: Zone Name”
yWhen Zone List is displayed
“Zone List Display”
Display Mode Selection
Select between Zone and Group.
Information on Zone/Group Currently Displayed
Generally, the temperature setting and the
operation mode are displayed. If any error
occurs in the air conditioner, the error code is
displayed.
Displayed Abnormality in Air Conditioner or Communication
Blue triangular mark shows communication abnormality in
air conditioner.
Yellow triangular mark shows abnormality in air conditioner.
Zone/Group Currently Displayed
The name of the zone/group currently
selected is highlighted in blue flame.
Zone/Group Name
Set the names in the Group Registration or
Zone Registration in the System Setup
Mode.
Filter/Element Sign
Displayed when there is any air conditioner
showing a filter or element sign in the zone
or the group.
Target of Automatic Control
Displayed when there is any air conditioner
with the registration of scheduled in the zone
or in the group.
Monitoring Screen Legend
Pressing the “?” button shows more detailed
legend.
Button to Switch to the System Setup Mode
Use this button for settings including the
time, group, zone and schedule.
Description of Zone/Group
Set the names in the Group Registration or
Zone Registration in the System Setup Mode.
System Condition Displayed Domain
Domain displaying system
condition (Compulsory Stop etc.)
Display for Collective Monitoring of Air
Conditioners Connected to intelligent Touch Controller
When operation is normal and any air
conditioner is in operation:
Red/Normal
When operation is normal and all air
conditioners are in stoppage:
Green/Normal
When there is any air conditioner generating
an error:
Yellow/Abnormal
When there is any air conditioner with
communication error:
Blue/Abnormal
Change in color of Start/Stop is possible by
Iconcolor Settings in System Settings.
Start All Button
Button to collectively start
all the air conditioners
connected to intelligent
Touch Controller.
Stop All Button
Button to collectively stop all the air conditioners
connected to intelligent Touch Controller.
Display Mode Selection
Select the mode among icon/list/detailed icon.
Displayed is List in the right figure.
List display in P469.
Detailed icon display is P468.
Group/Zone Start Button
Button to start operation of the group/zone
selected.
Group/Zone Stop Button
Button to stop operation of the group/zone
selected.
Group/Zone Set Button
Makes settings (temperature setting,
temperature control mode, etc.) and display of
the group/zone selected.
Current Time Display
Shows the current date and time.
Group/Zone Prop Button
Detailed display of the group/zone selected
Lock Setting/Cancel Button
Displays possibititiy of monitor operation.
Scroll Buttons
Up/Down scroll button used when monitoring zone/group which are not currently displayed.
Left/Right scroll button used when monitoring temperature and errors etc.
Which are not currently displayed.
