5. Control Mode Selector (DS2)

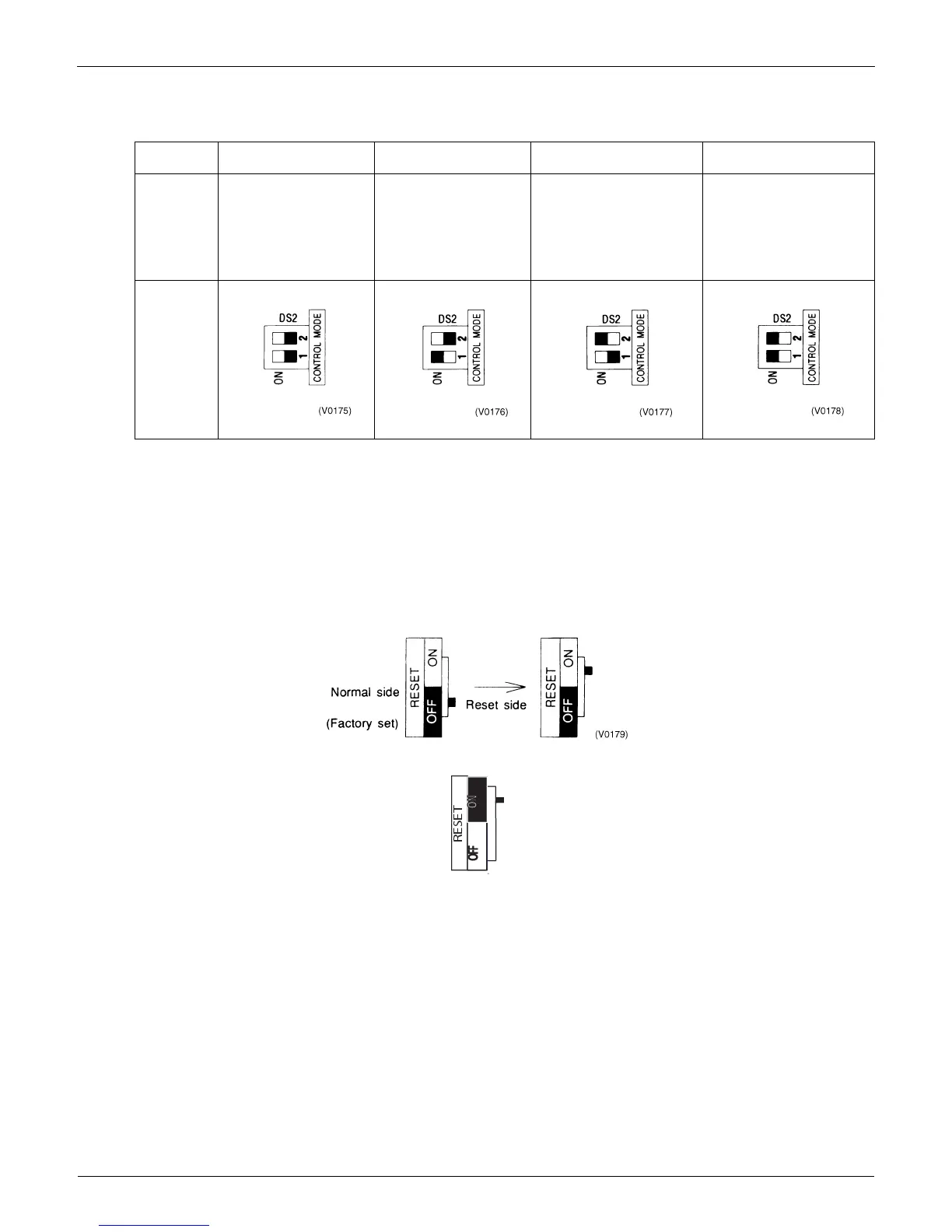

The following four patterns of control mode can be set:
Note:
Indicates the position of switches.
Set control mode before turning power supply ON.
When used in conjunction with central remote controller, the control modes of the central remote controller takes
priority.
6. Forced Reset Switch (SS1)
When changing the setting of the connectorwhen setting the master controller, you can reset simply by switching it
to the reset side and back again without turning the power OFF.
For normal operation, set the switch to the normal, or off position, side.
Control Mode Individual Centralized Timer Operation Possible by
Remote Controller
ON/OFF Control Impossible
by Remote Controller
Content Operation/stop is
controlled by both unified
ON/OFF controller and
remote controller.
After operation by unified
ON/OFF controller,
operation/stop is freely
controlled by remote
controller until stopped by
unified ON/OFF controller.
When used in conjunction
with the schedule timer,
operation/stop is controlled
freely by remote controller
during the set time but
operation is not available
when the schedule timer is
ON.
Operation/stop is controlled
by unified ON/OFF controller
only. This unit can not be
operated/stopped by remote
controller.
DS2 Setting
(Factory set)
