LOW VOLTAGE FIELD WIRING
DAX 090-120, 3PH
T1
T2 T3 T4 T5
R C G W1 W2 Y1 Y2 O
Y2
S1 S2 R C G W1 W2 Y1 Y2 O
T1
T2 T3 T4 T5
R C G W1 W2 Y1 Y2 O
1 TWO-STAGE CONDENSER UNIT
1 TWO-STAGE HEAT PUMP UNIT
S1 S2 R C G W1 W2 Y1 Y2 O
T1
T2 T3 T4 T5
R C G W1 W2 Y1 Y2 O
THERMOSTAT
2 ONE-STAGE CONDENSER UNITS
C
CONDENSER 1
CONDENSER 2

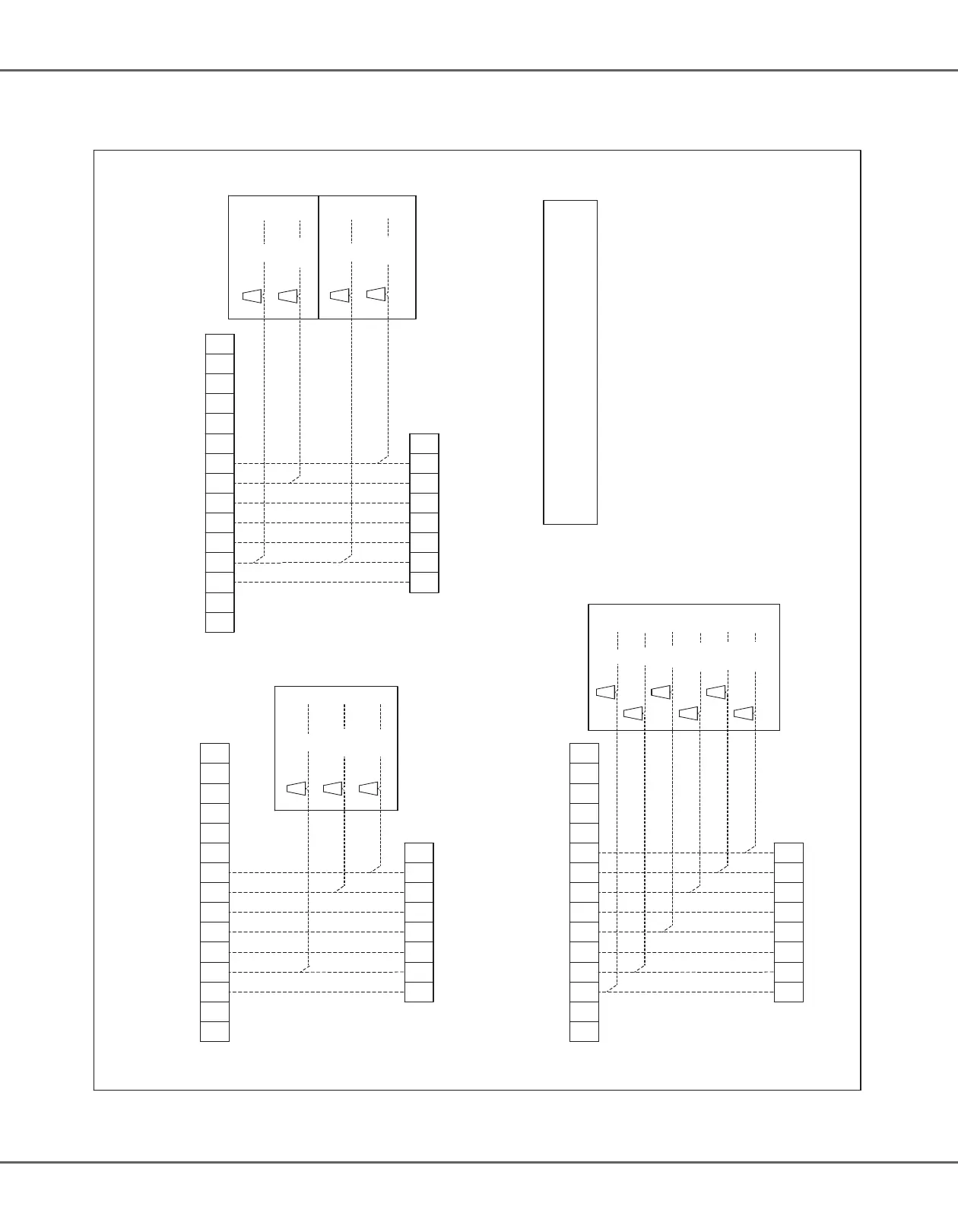

THIS IS A SYSTEM WIRING DIAGRAM SHOWING DAT MODEL SERIES WITH
FIELD CONNECTIONS. THIS DIAGRAM IS TO BE INCLUDED IN INSTALLATION
INSTRUCTIONS. A SEPARATE WIRING DIAGRAM IS CONTAINED INSIDE THE
CONTROL BOX FOR UNIT FACTORY WIRING.
THIS IS A SYSTEM WIRING DIAGRAM SHOWING DAX MODEL SERIES WITH
FIELD CONNECTIONS. THIS DIAGRAM IS TO BE INCLUDED IN INSTALLATION
INSTRUCTIONS. A SEPARATE WIRING DIAGRAM IS CONTAINED INSIDE THE
CONTROL BOX FOR UNIT FACTORY WIRING.
NOTE
:
THERMOSTAT
TERMINAL BLOCK - INDOOR UNIT
TERMINAL BLOCK - INDOOR UNIT
CONDENSER - TWO STAGE HP
THERMOSTAT
CONDENSER - TWO STAGE AC
TERMINAL BLOCK - INDOOR UNIT
Y1
PURPLE
C
PURPLEPURPLE
YELLOW
BLUE
BLUE
YELLOW
Y1
C
BLUE
PURPLE Y2
BLUE
WHITE
YELLOW
PURPLE
RED
ORANGE
R
C
W1
Y1
Y2
O
