Daikin DRC036 - Page 12

12
ϭ3

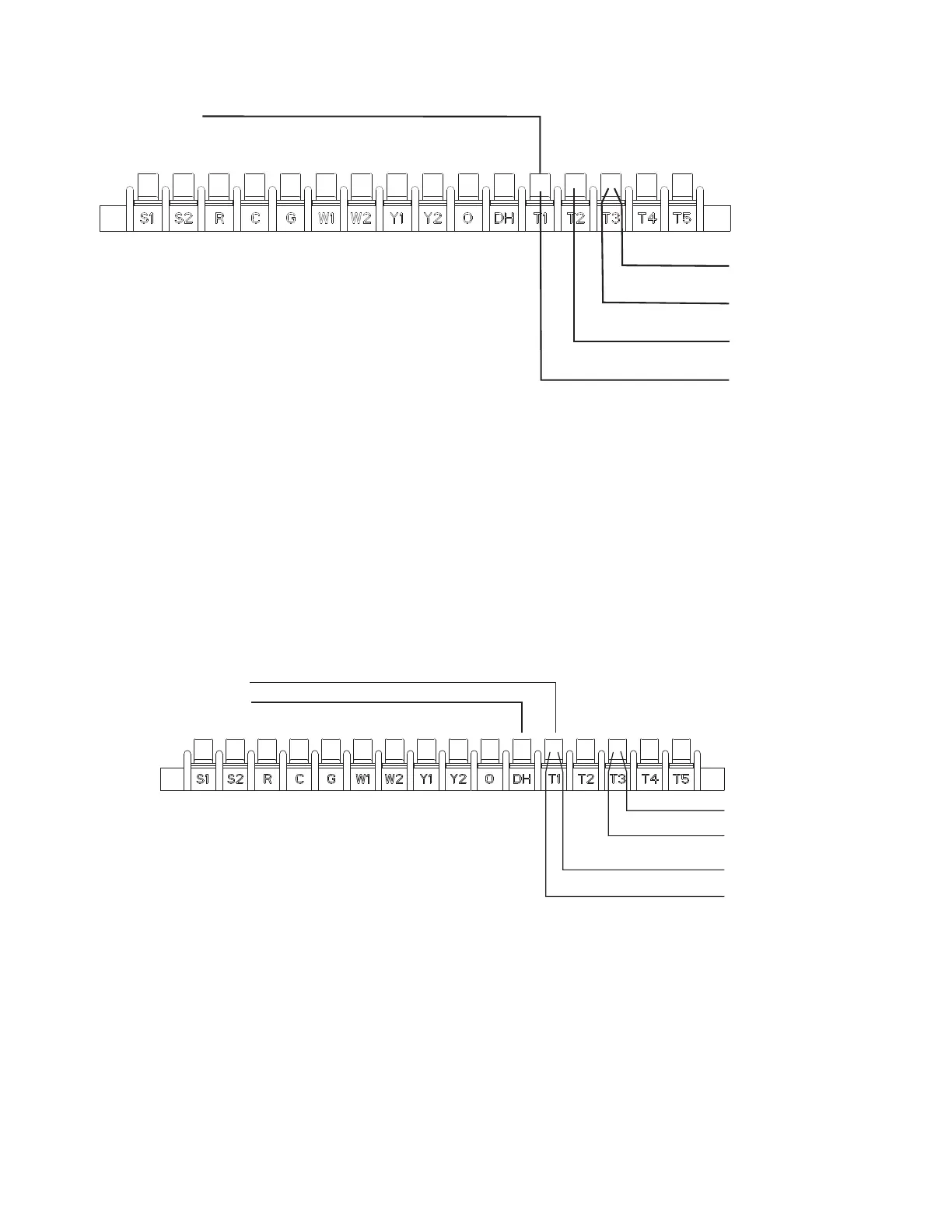

'5C/DRH0඗ඌඍඔ:එකඑඖඏ(Standard Static)
GR (FAN)
* Move YELLOW (YL) wire from TB1-T1 to T2 or T3 to change blower speed during cooling stage 1 operation. (Do not
move YL and PU on the same taps)
* Move WHITE (WH) wire from TB1-T2 to T3 to change blower speed during heating stage 1 operation. (Do not move
WH and BR on the same taps)
BR (Heating Stage 2)
PU (Cooling Stage 2)
WH (Heating Stage 1)
YL (Cooling Stage 1)
* Move BROWN (BR) wire from TB1-T3 to T4 or T5 to change blower speed during heating stage 2 operation. (Do not
move wire YL and PU to the same taps)
* Move PURPLE (PU) wire from TB1-T3 to T4 or T5 to change blower speed during cooling stage 2 operation. (Do not
move YL and PU on the same taps)
* Move YELLOW (YL) wire from TB1-T1 to T2 or T3 to change blower speed during cooling stage 1 operation. (Do not
move wire YL and PU to the same taps)
* Move WHITE (WH) wire from TB1-T2 to T3 to change blower speed during heating stage 1 operation. (Do not move
wire WH and BR to the same taps)
* Move PURPLE (PU) wire from TB1-T3 to T4 or T5 to change blower speed during cooling stage 2 operation. (Do not
move wire YL and PU to the same taps)
• Move YELLOW (YL) wire from TB1-T1 to T2 or T3 to change blower speed during cooling stage 1 operation.
(Do not move wires YL and PU to the same taps)
• Move WHITE (WH) wire from TB1-T2 to T3 to change blower speed during heating stage 1 operation.
(Do not move wires WH and BR to the same taps)
• Move PURPLE (PU) wire from TB1-T3 to T4 or T5 to change blower speed during cooling stage 2 operation.
(Do not move wires YL and PU to the same taps)
• Move BROWN (BR) wire from TB1-T3 to T4 or T5 to change blower speed during heating stage 2 operation.
(Do not move wires WH and BR to the same taps)
DRC/DRH Model Wiring (Hi Static)
GR (FAN)
Energized during Heat Mode
BR (Heating Stage 2)
PU (Cooling Stage 2)
WH (Heating Stage 1)
YL (Cooling Stage 1)
** TB1-DH is energized when the unit is in heat
mode. When TB1-DH is energized, the blower motor
operates at a new group of programmed speeds,
T6-T10, in place of T1-T5.
• Move YELLOW (YL) wire from TB1-T1 to T2 or T3 to change blower speed during cooling stage 1 operation.
(Do not move wires YL and PU to the same taps)
• Move WHITE (WH) wire from TB1-T6 to T7 to change blower speed during heating stage 1 operation.
(Do not move wires WH and BR to the same taps)
• Move PURPLE (PU) wire from TB1-T3 to T4 or T5 to change blower speed during cooling stage 2 operation.
(Do not move wires YL and PU to the same taps)
• Move BROWN (BR) wire from TB1-T8 to T9 or T10 to change blower speed during heating stage 2 operation.
(Do not move wires WH and BR to the same taps)
