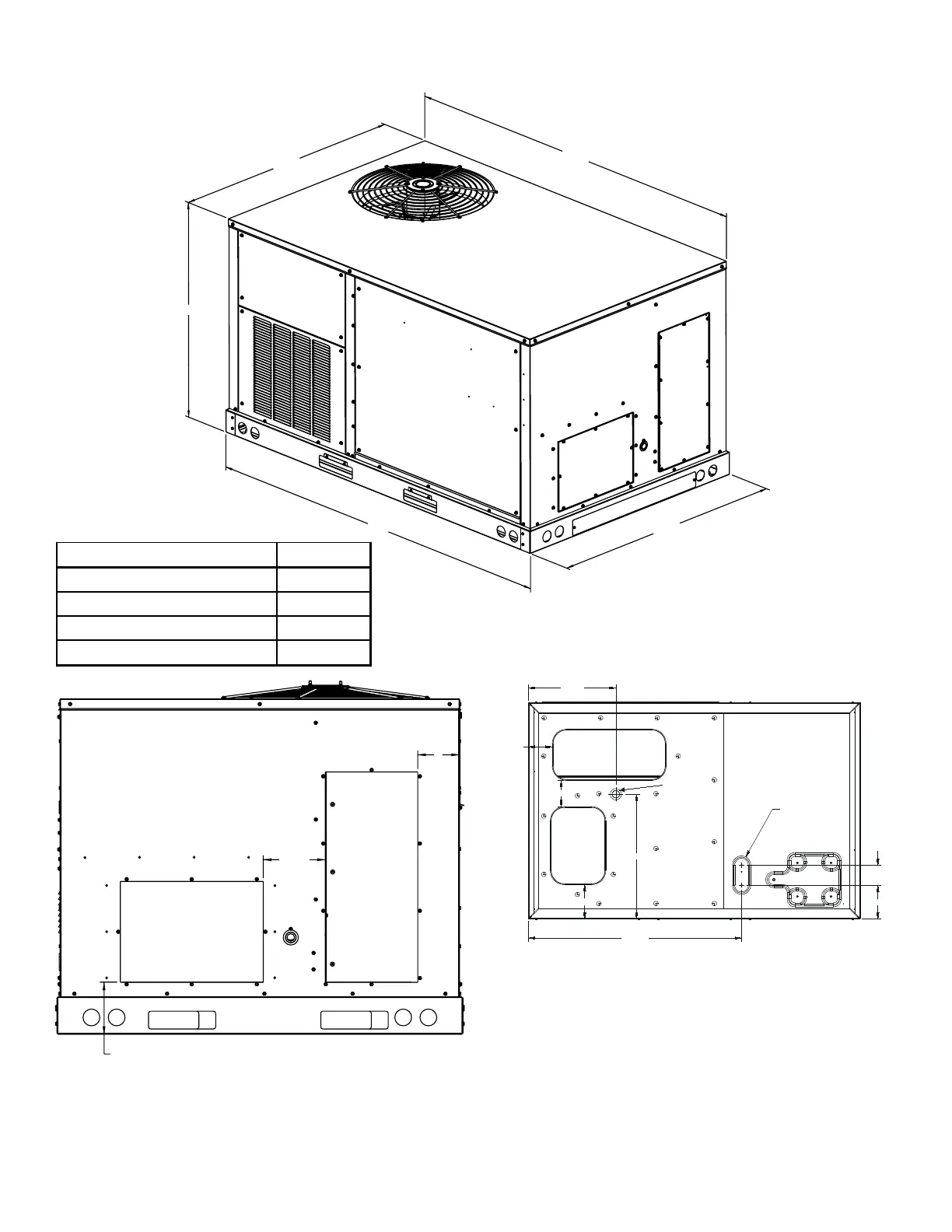

Daikin DRC036 - Appendix C Unit Dimensions

46



























48-5/16"
74"
"A"
47-5/8"
73-3/8"
Model 
3 ton AC 39-7/8"
3 ton Heat Pump 43-1/2"
4 & 5 ton AC and Heat Pump 43-1/2"
6 ton AC and Heat Pump
53-3/4"
5
6-3/16
7-3/8
SUPPLY
12" X 17"
RETURN
11" X 25"
