Prior to start-uP
IM 1049-9 24 www.DaikinApplied.com
Unit Size 042 (575/60/3)
The fan motor on unit size 042 for voltage 575/60/3 has
ave-positionterminalblockandisfactorywiredfor
high speed (Figure 23). Low speed can be achieved by
interchanging black terminal (3) with red terminal (5) and
the black and blue terminals (3 & 4) receive a jumper as
shown in Figure 24.

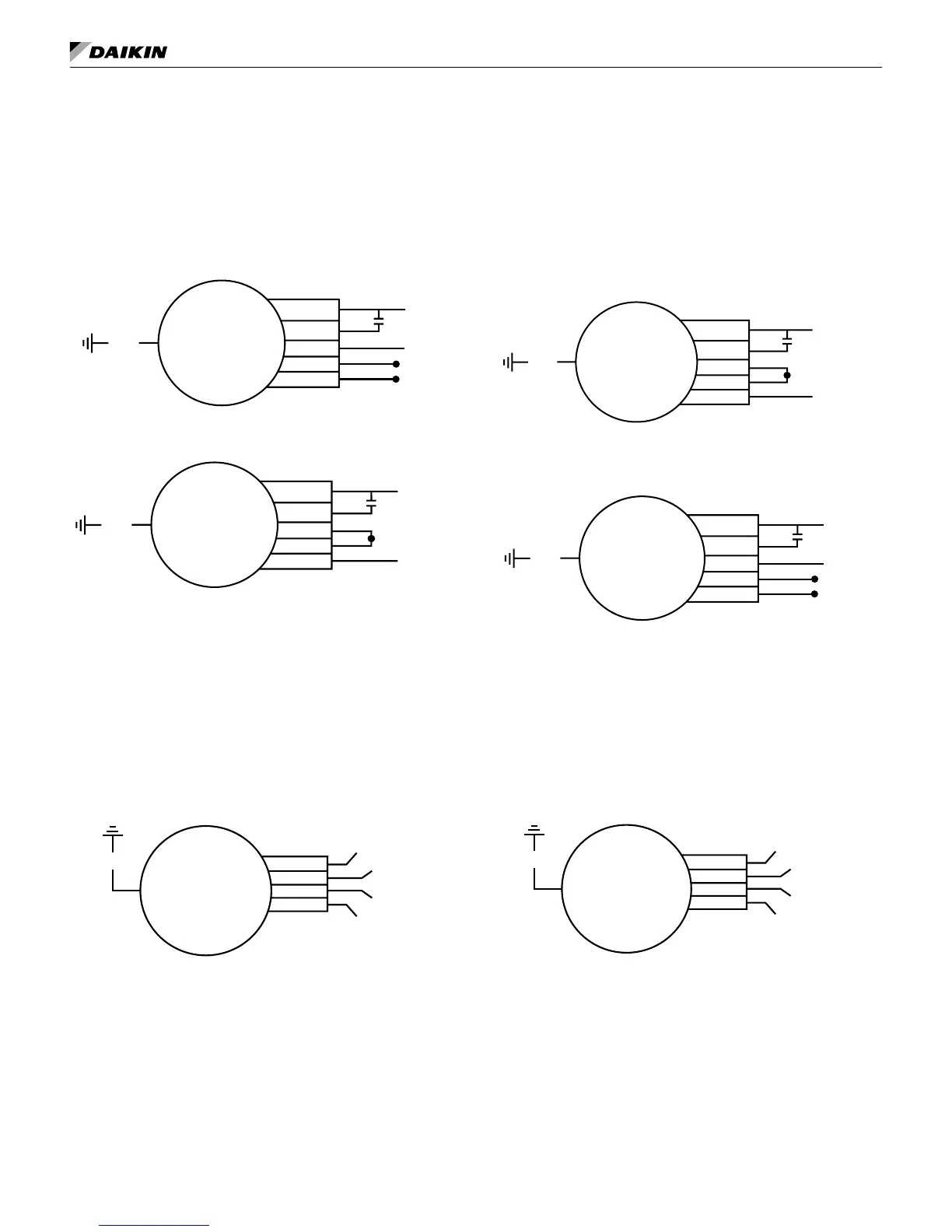

Figure 23: Size 042 (575/60/3) factory wired for high speed
1 (YEL)
2 (BRN)
3 (BLK)
4 (BLU)
5 (RED)
LINE
LINE
HIGH SPEED
FACTORY WIRED
GRN
CAPACIT
OR
FAN MOTOR
Figure 24: Size 042 (575/60/3) low speed
1 (YEL)
2 (BRN)
3 (BLK)
4 (BLU)
5 (RED)
LINE
LINE
LOW SPEED
JUMPER LEAD
GRN
CAPACITOR
FAN MOTOR
Unit Size 048 (208-230/60/1 and 208-
230/60/3)
The fan motor on unit size 048 for voltages 208/230/60/1
and 208-230/60/3 have a four-position terminal block and
are factory wired for low speed (Figure 25). High speed
can be achieved by interchanging black terminal (3) with
red terminal (4).
Figure 25: Size 048 (208-230/60/1 and 208-230/60/3) factory
wired for low speed
1 (YEL)
2 (BRN)
3 (BLK)
4 (RED)
LOW
FACTORY
WIRED
LINE
HIGH
GR /
YE
CAPACIT
OR
FAN MOTOR
Unit Size 048 (380/50/3, 460/60/3,
575/60/3)
The fan motor on unit size 048 for voltages 380/50/3,
460/60/3and575/60/3haveave-positionterminalblock
and are factory wired for low speed (Figure 26). High speed
can be achieved by interchanging black terminal (3) with
red terminal (5) as shown in Figure 27.
Figure 26: Size 048 (380/50/3, 460/60/3, 575/60/3) factory
wired for low speed
1 (YEL)
2 (BRN)
3 (BLK)
4 (BLU)
5 (RED)
LINE
LINE
LOW SPEED
FACTORY WIRED
JUMPER LEAD
GRN
CAPACITOR
FAN MOTOR
Figure 27: Size 048 (380/50/3, 460/60/3, 575/60/3) high
speed
1 (YEL)
2 (BRN)
3 (BLK)
4 (BLU)
5 (RED)
LINE
LINE
HIGH SPEED
GRN
CAPACIT
OR
FAN MOTOR
Unit Size 060 (208-230/60/1) & (208-
230/60/3)
The fan motor on unit size 060 in voltages 208-230/60/1
and 208-230/60/3 have a four-position terminal block and
are factory wired for high speed (Figure 28). Low speed
can be achieved by interchanging black terminal (3) with
red terminal (4).
Figure 28: Sizes 060 (208-230/60/1) and (208-230/60/3)
1 (YEL)
2 (BRN)
3 (BLK)
4 (RED)
LOW
LINE
HIGH
FACTORY
WIRED
GR /
YE
CAPACIT
OR
FAN MOTOR
