IM 1049-9 34 www.DaikinApplied.com

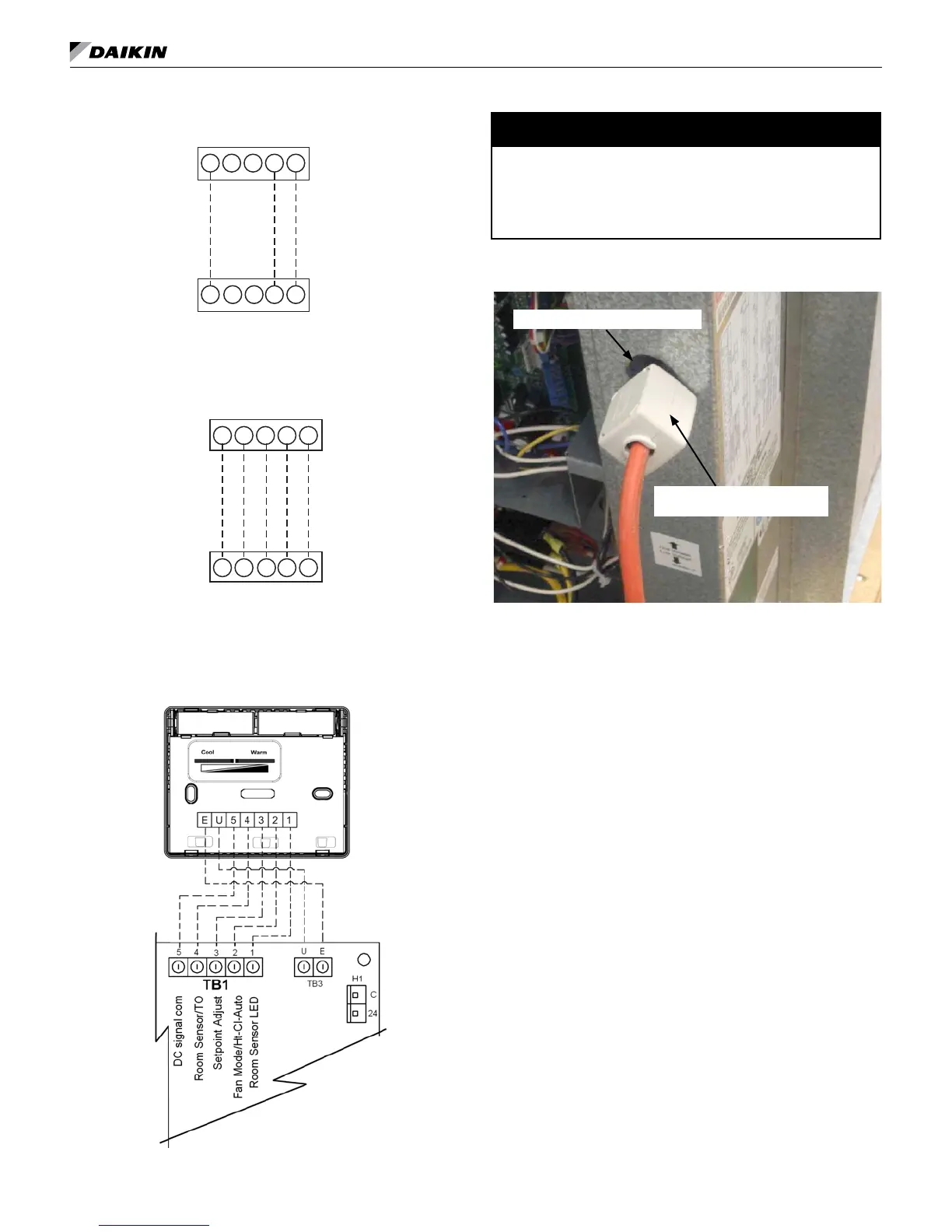

Figure 49: Basic sensor – P/N 910152149
32
5
MicroTech III Controller Terminals TB1
14
Basic Room Sensor (Part No.s 669529001, 910152149)
32
5
14
Figure 50: Room sensor with temperature adjustment wiring
32
5
MicroTech III Controller Terminals TB1
14
Room Sensor with Temperature Adjustment
(Part No.s 669529101, 669529201, 910121753)
32
5
14
Figure 51: Adjustable Cool/Warm with Occupancy Switch
– P/N 910121753
NOTICE
For 50Hz units, it may be necessary to install a Ferrite Core
Noise Suppresor on the thermostat cord cable where it enters
the unit “Low Voltage” opening (see Figure 52). The Installer
is responsible for checking local codes to determine if a Noise
Suppressor is necessary to meet CE compliance.
Figure 52: Ferrite Core Noise Suppressor on Thermostat
Cord Cable
Ferrite Core Noise Suppressor on
thermostat cable
Low voltage, themostat wiring entry
therMostats & Wall sensors
