Hydronic kit (optional)
The optional hydronic kit foreseen for this series of machines (except CU Model) can be composed of a single in-line
pump or a twin in-line pump. According to the choice made when ordering the machine, the kit could be configured as in
the following figure.

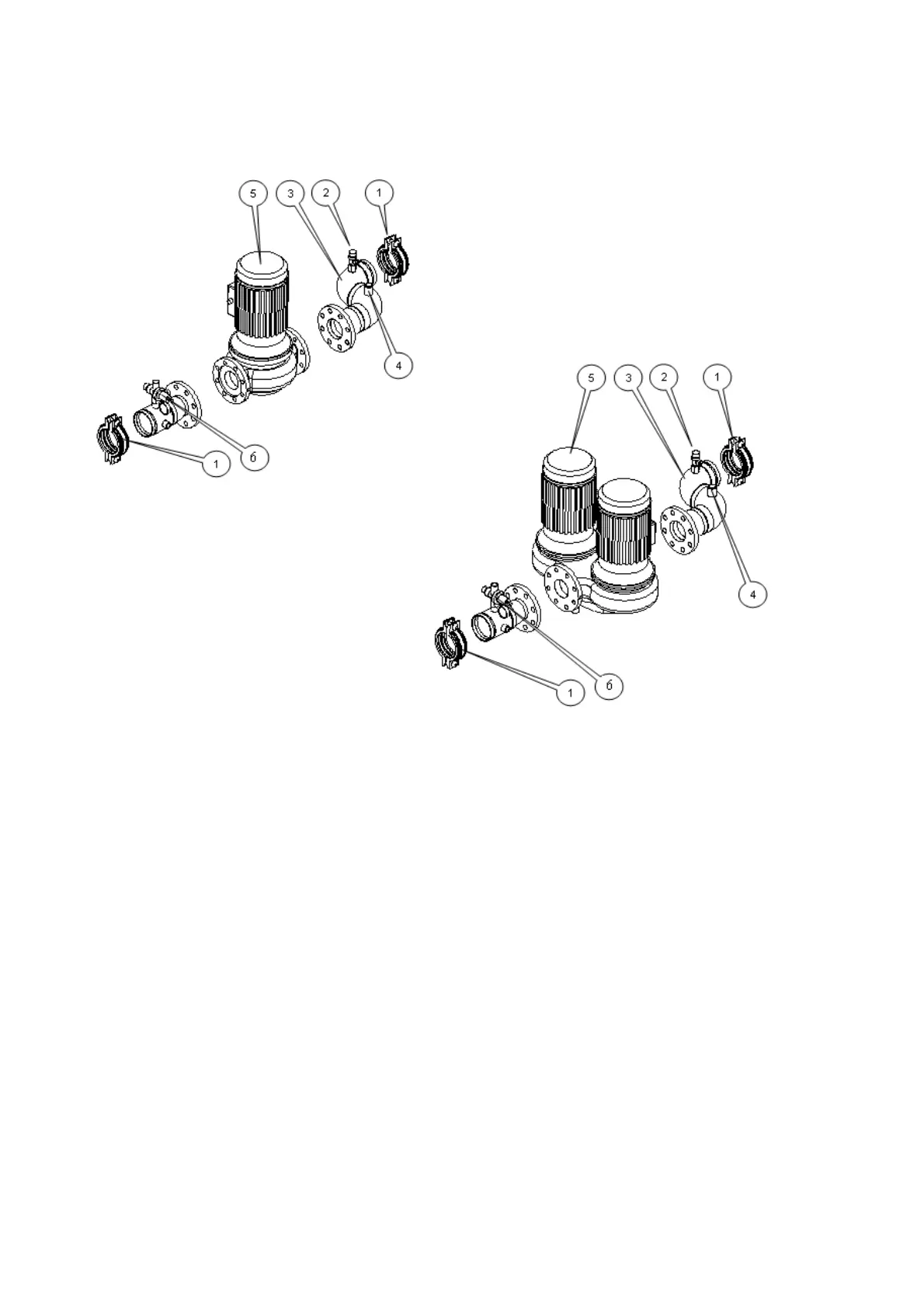

Figure 10 – Single and twin pump hydronic kit
1 Victaulic joint
2 Water safety valve
3 Connecting manifold
4 Anti-freeze electrical resistance
5 Water pump (single or twin)
6 Automatic filling unit
(*) An expansion tgank has to be installed in the plant. It is not included in the kit
N.B.: Components on some machines could be arranged differently.
N.B.: Twin pumps are available only for some models. Check the price list for available combination
