Daikin EWAD E-SS Series - Figure 11 - EWAD E SS;SL - Available External Lift for Water Pumps Kit (Option on Request) - Low Lift Single Pump; Figure 12 - EWAD E SS;SL - Available External Lift for Water Pumps Kit (Option on Request) - High Lift Single Pump

D–EIMAC00708-16EN - 26/76

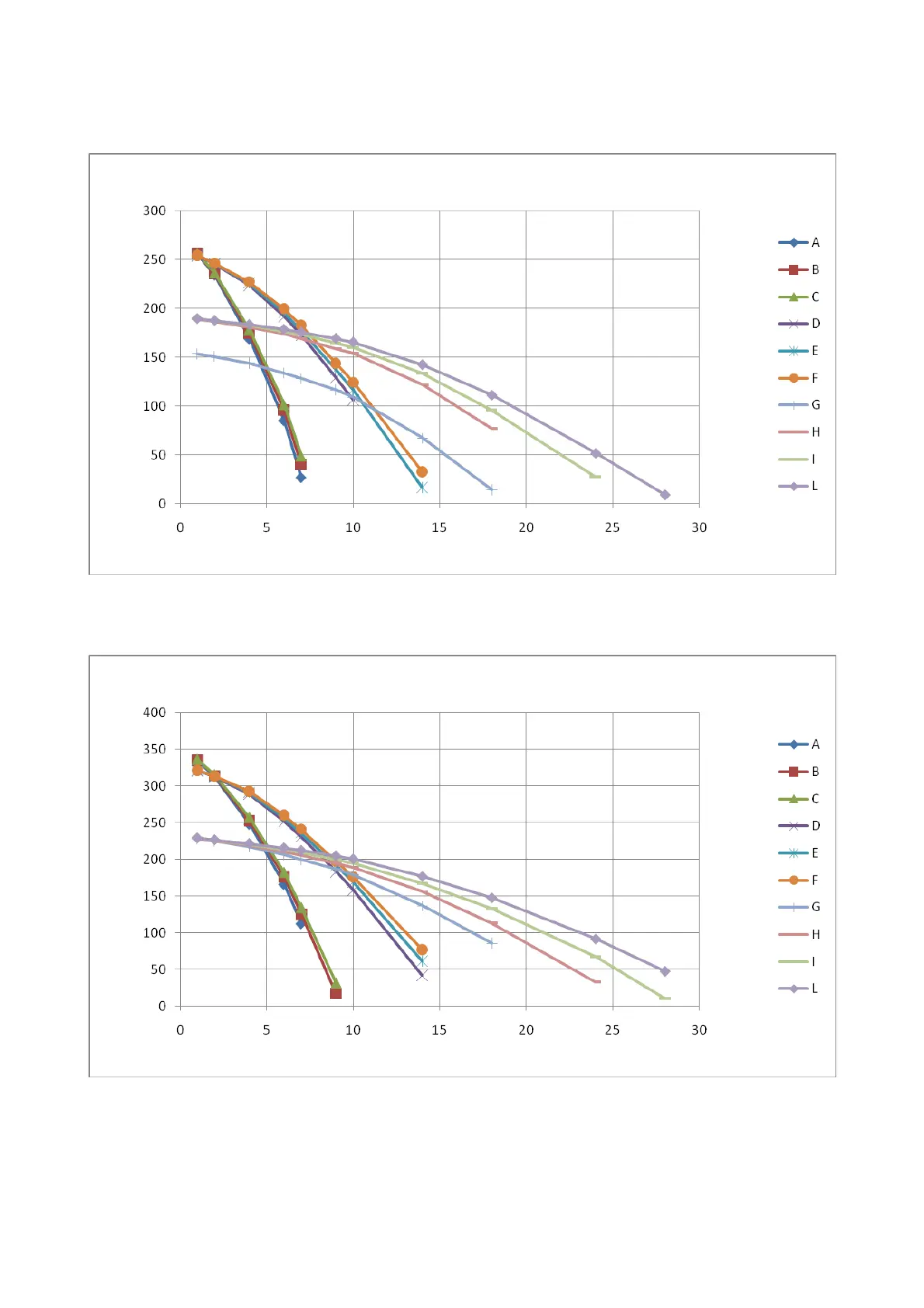

Figure 11 – EWAD E SS/SL - Available external lift for water pumps kit (option on
request) - Low lift single pump
Figure 12 – EWAD E-SS/SL - Available external lift for water pumps kit (option on
request) - High lift single pump
A. EWAD100E-SS / SL
B. EWAD120E-SS / SL
C. EWAD140E-SS / EWAD130E-SL
D. EWAD160E-SS / SL
E. EWAD180E-SS / SL
F. EWAD210E-SS / SL
G. EWAD260E-SS / EWAD250E-SL
H. EWAD310E-SS / EWAD300E-SL
I. EWAD360E-SS / EWAD350E-SL
L. EWAD410E-SS / EWAD400E-SL
Water flow rate (l/s)
Available lift (kPa)
Water flow rate (l/s)
Available lift (kPa)
