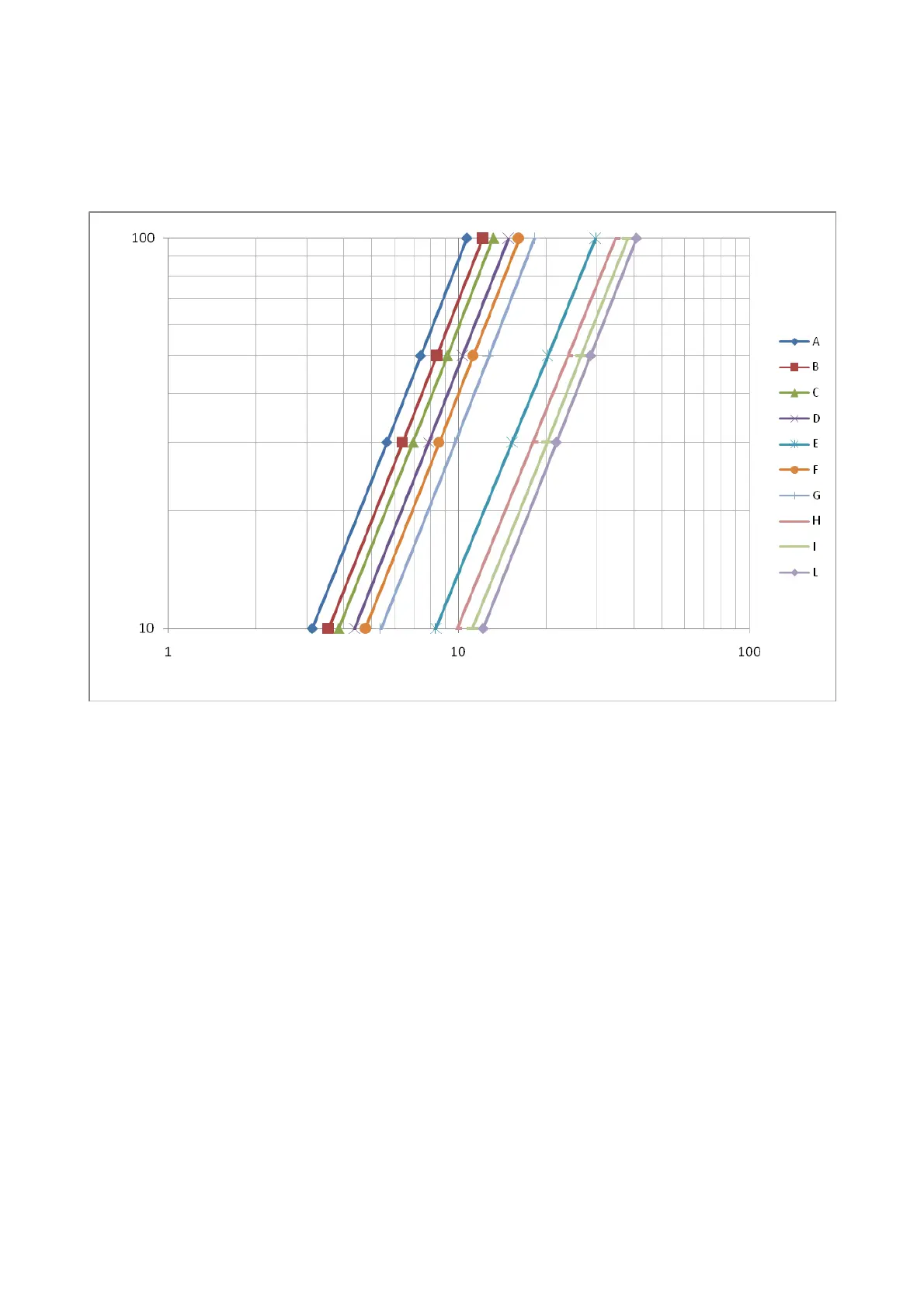

Figure 16 - Heat recovery pressure drop – EWAD E-SS/SL
S. EWAD100E-SS / SL
T. EWAD120E-SS / SL
U. EWAD140E-SS / EWAD130E-SL
V. EWAD160E-SS / SL
W. EWAD180E-SS / SL
X. EWAD210E-SS / SL
Y. EWAD260E-SS / EWAD250E-SL
Z. EWAD310E-SS / EWAD300E-SL
Å. EWAD360E-SS / EWAD350E-SL
N. EWAD410E-SS / EWAD400E-SL
Water flow rate (l/s)
Pressure Drops(kPa)
