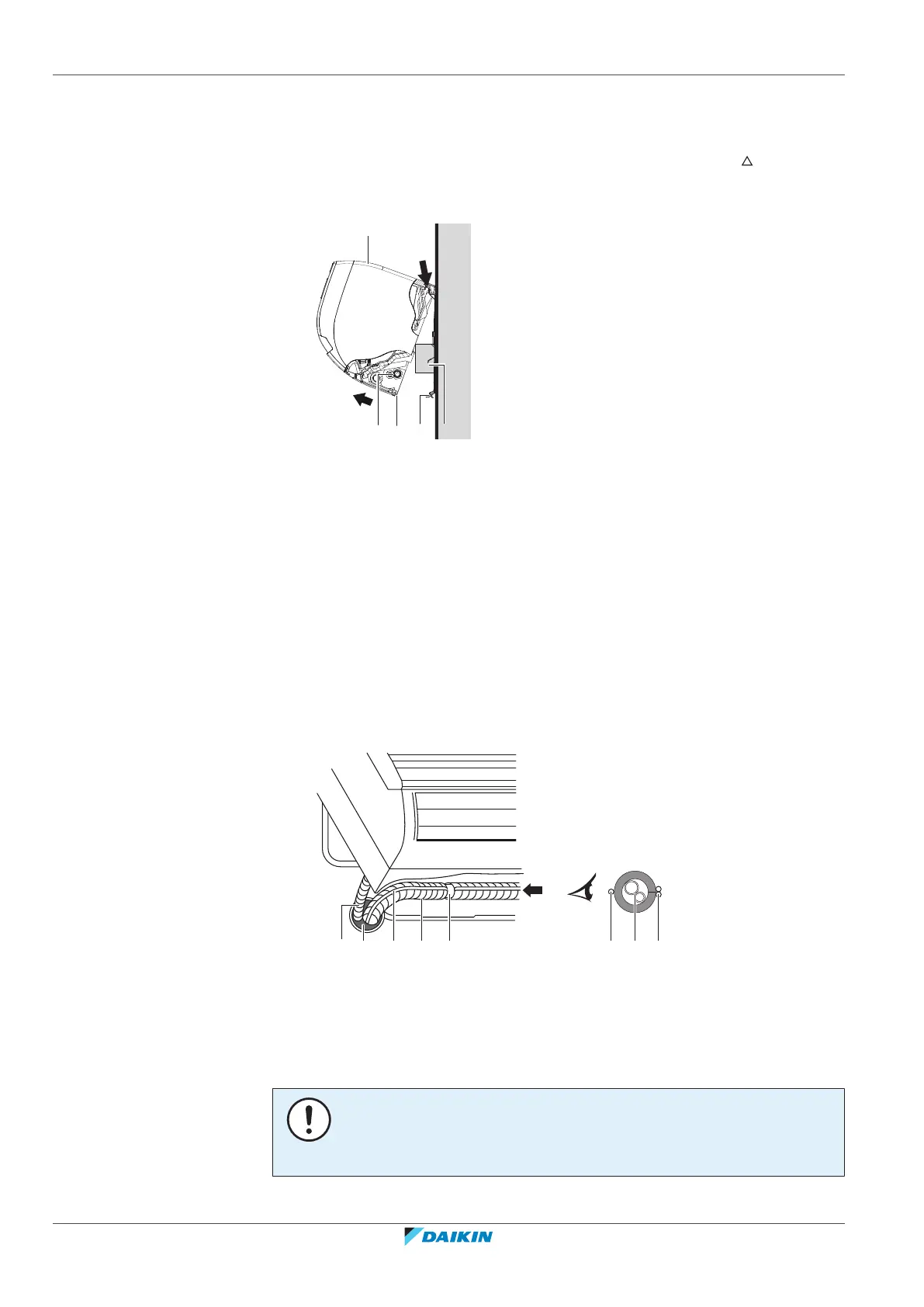

16.3.4 To hook the unit on the mounting plate
1 Remove the front panel ("16.2.1To remove the front panel"[452]).
2 Set the indoor unit on the mounting plate hooks. Use the " " marks as a
guide.
3 Place piece of packing material for support.
a
c
db e
a Front grille
b Refrigerant piping
c Tab 2×
d Mounting plate (accessory)
e Piece of packing material
16.3.5 To pass the pipes through the wall hole
1 Connect the drain piping "16.3.6To provide drainage"[459], the refrigerant
piping "17 Piping installation" [4 62] and the electrical wiring "18 Electrical
installation"[467].
2 Shape the refrigerant pipes along the pipe path marking on the mounting
plate.
3 Fix the electrical wiring and the refrigerant pipes together using vinyl tape
(field supply).
c
e f
b
d
a
A
A
c g
a Drain hose
b Wall hole
c Refrigerant piping
d Electrical wiring
e Vinyl tape (field supply)
f Power supply wiring
g Transmission wiring and user interface wiring
NOTICE
▪ Do NOT bend refrigerant pipes.
▪ Do NOT push the refrigerant pipes onto the bottom frame or the front grille.
