Daikin FBQ-C - 6 Piping Diagram

• Split Sky Air • Indoor Units
11
• Indoor Units • R-410A • FBQ-C7VEB

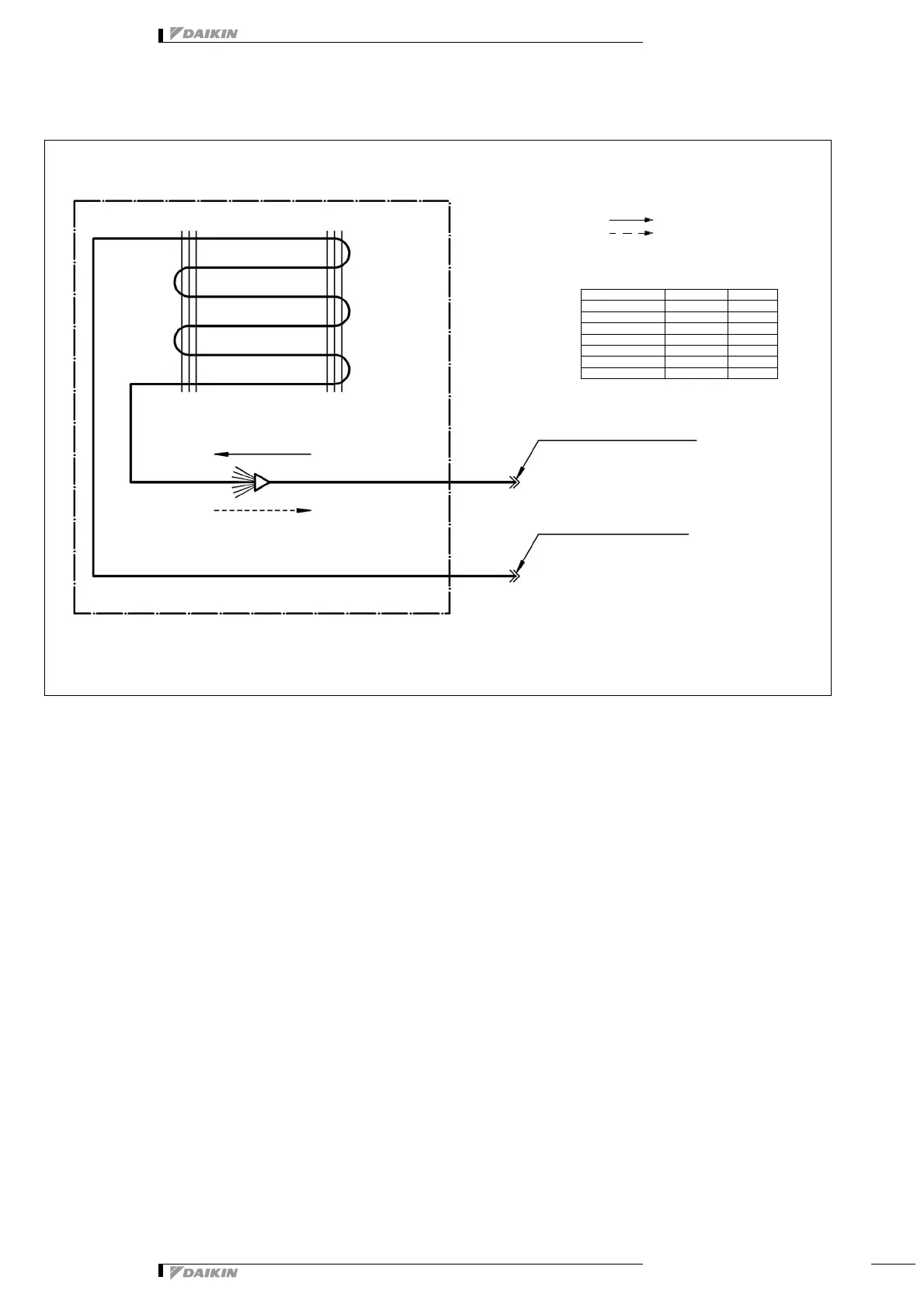

6 Piping diagram
FBQ35-140C
3TW31275-1
Heat exchanger
Liquid pipe connection port
Gas pipe connection port
Refrigerant flow
Cooling
Heating
Refrigerant pipe connection port diameters
Model Gas Liquid
FBQ35C 9.52 6.35
FBQ50C 12.70 6.35
FBQ60C 12.70 6.35
FBQ71C 15.90 9.52
FBQ100C 15.90 9.52
FBQ125C 15.90 9.52
FBQ140C 15.90 9.52
