• Split Sky Air • Indoor Units
7
• Indoor Units • R-410A • FBQ-C7VEB

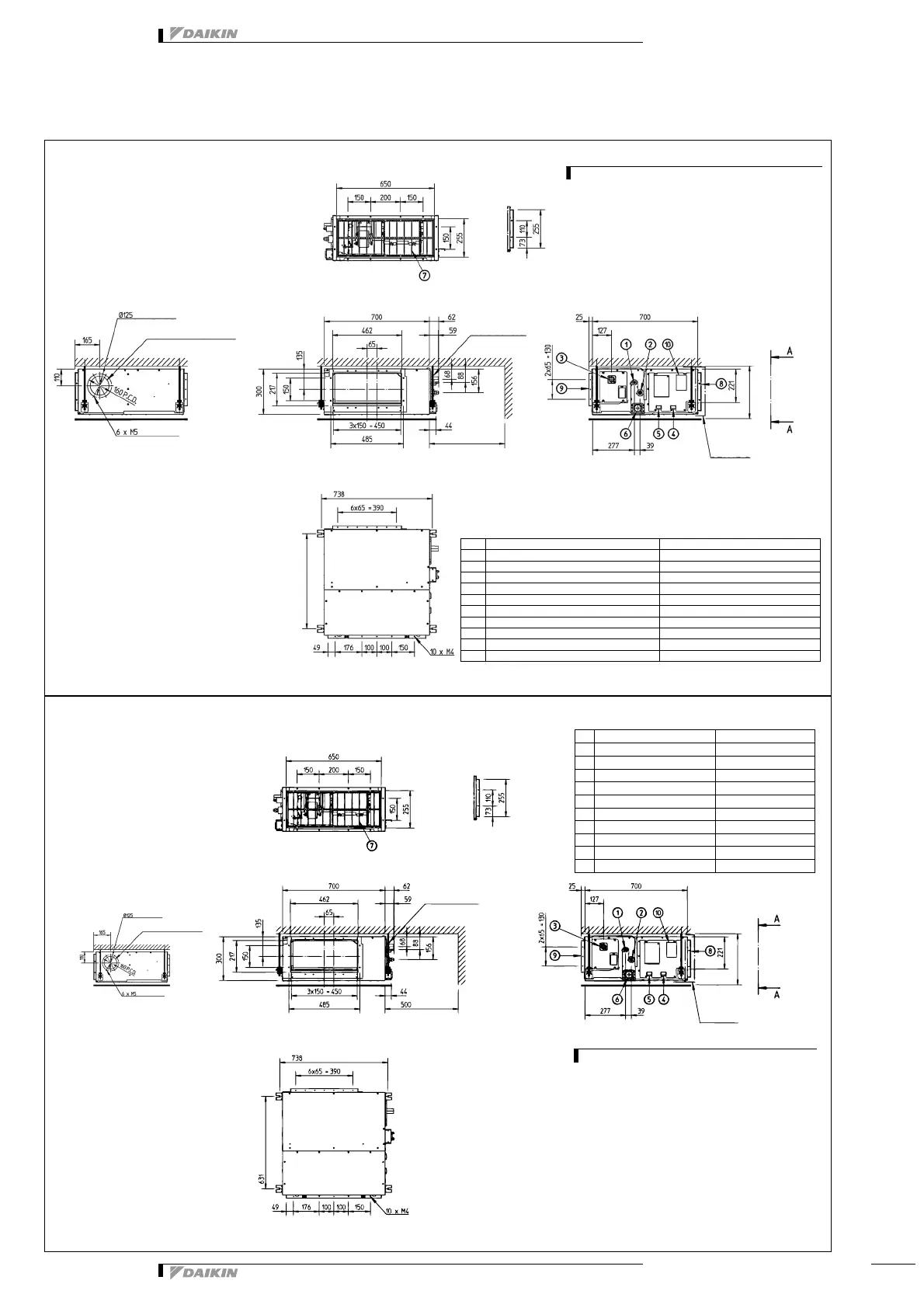

5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
631 (suspension position)
suspension bolt
(Suspension position)
500 or more
(service space)
(service space)
75 or more
View A-A
Detail B
Detail B
Item Name Description
1 Liquid pipe connection Ø6.35 flare connection
2 Gas pipe connection Ø9.52 flare connection
3 Drain pipe connection VP25 (OD Ø32, ID Ø25)
4 Remote control wiring connection -
5 Power supply connection -
6 Drain hole VP25 (OD Ø32, ID Ø25)
7 Air filter -
8 Air suction side -
9 Air discharge side -
10 Nameplate -
NOTES
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing
Fresh air intake position
(Knock out hole)
(On circumference)
NOTE
1 Refer to ‘outlook drawing for installing optional
accessories’ when installing optional accessories.
2 The required ceiling depth varies according to the
configuration of the specific system.
3 For maintenance of the air filter, it is necessary to
provide a service access panel.
Refer to the ‘filter installation method’ drawing.
View A-A
Detail B
Suspension bolt
(Service space)
Detail B
350 or more
(Service space)
(Suspension position)
or more
Nr Name Description
1 Liquid pipe connection ø 6.35 flare (connection)
2 Gas pipe connection ø 12.70 (flare connection)
3 Drain pipe connection VP25 (O.D. ø 32 /I.D. ø 25)
4 Remote control wiring connection
5 Power supply connection
6 Drain hole VP25 (OD
ø 32 /I.D. ø 25
)
7Air filter
8 Air suction side
9 Air discharge side
10 Nameplate
(Suspension position)
Fresh air intake position
(Knock out hole)
(On circumference)
