Daikin FBQ-C - Filter Installation Method

• Split Sky Air • Indoor Units
21
• Indoor Units • R-410A • FBQ-C7VEB
10 Installation
10 - 2 Filter installation method
FBQ35-140C
3TW31184-4

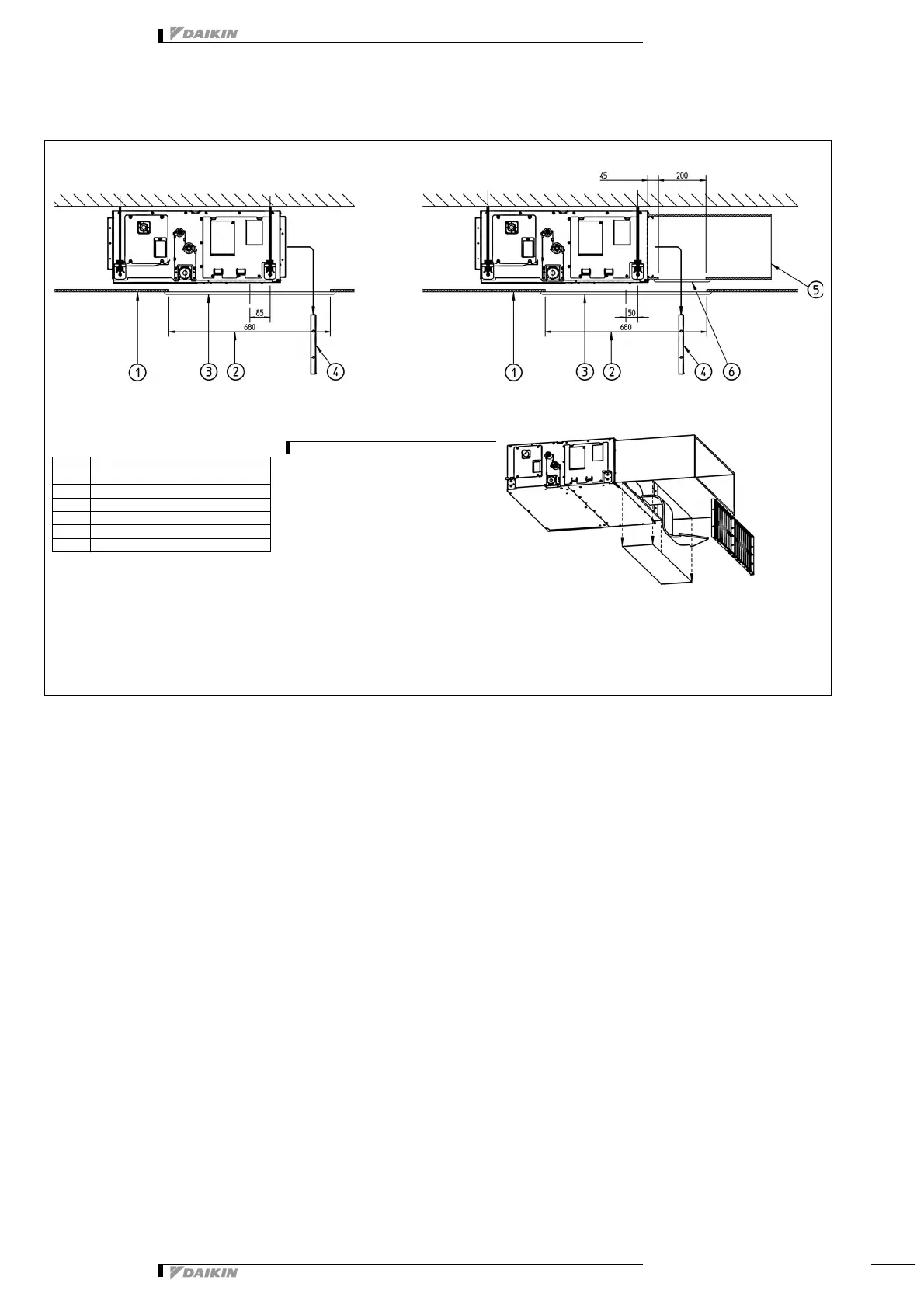

Installation without air inlet duct Installation with air inlet duct
(or less)
NOTES
Nr. Description 1 When installing the unit with rear
suction, a service opening is
necessary for the maintenance of
the air filters.
2 When installing the unit with a
suction duct. A service opening
must be provided in the duct.
1 Suspended Ceiling
2 Ceiling opening
3 Service access panel (optimal)
4 Air filter
5 Air inlet duct
6 Duct service opening
