9 Fan characteristics
FBQ140C
3TW31268-1

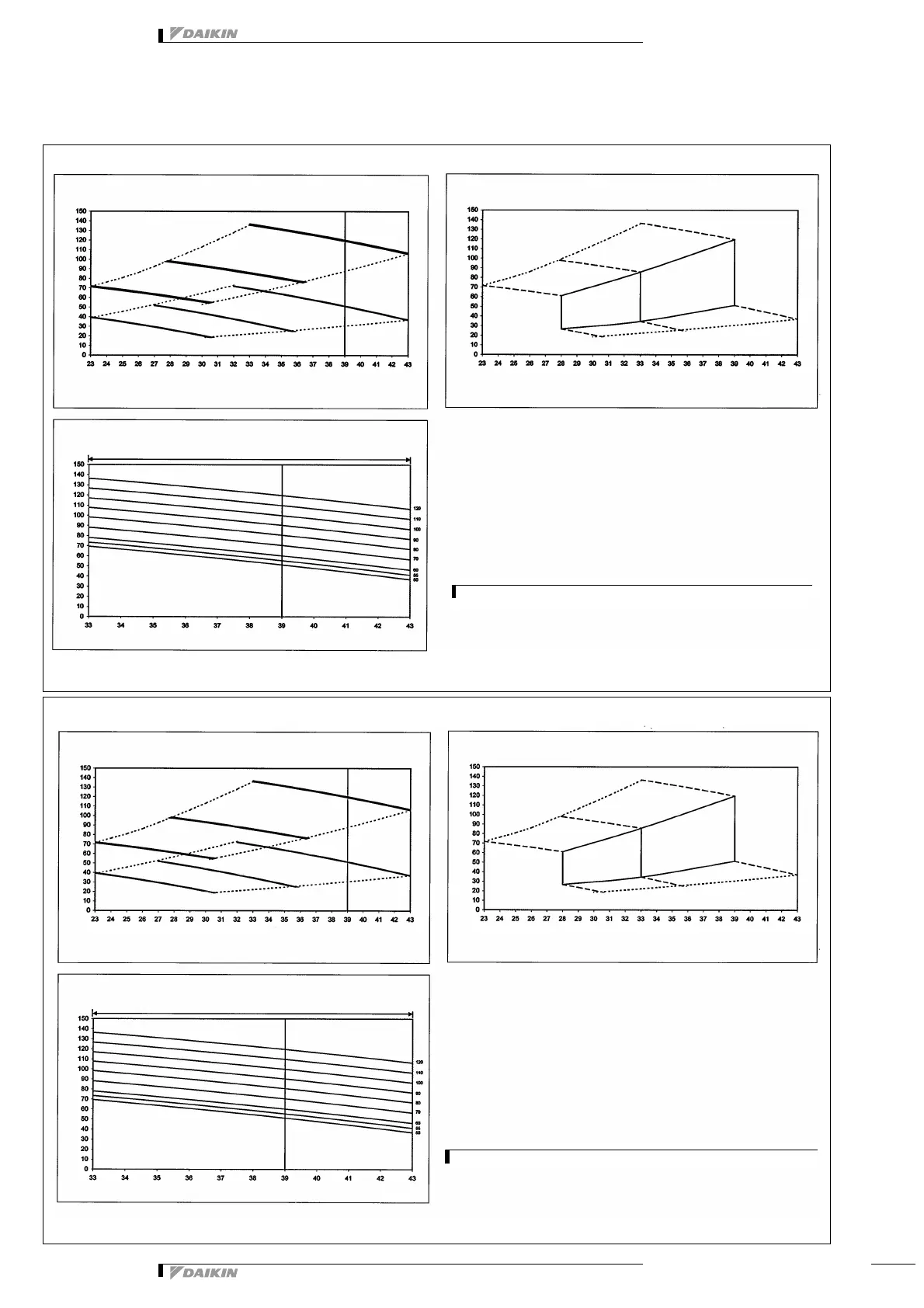

Fan characteristics (1)
Fan characteristics (3)
(airflow auto adjustment)
Fan characteristics (2)
(Field setting with remote control)
External static pressure [Pa]
External static pressure [Pa]
External static pressure [Pa]
Airflow [m
3
/min]Airflow [m
3
/min]
Airflow [m
3
/min]
Range of available air flow rate (H)
L
M
H
Upper limint of ESP by
airflow auto adjustment
Upper limint of ESP by
airflow auto adjustment
Upper limint of ESP
Lower limit of ESP
Upper limint of ESP
(max ESP )
Lower limit of ESP
(std ESP)
Lower limit of ESP
(max ESP)
Upper limint of ESP
(std ESP )
L (max ESP)
M (max ESP)
H (max ESP)
L (std ESP)
H (std ESP)
M (std ESP)
NOTES
1 Fan characteristics as shown are in “fan only” mode.
2 ESP: External static pressure
FBQ125C
3TW31268-1
Fan characteristics (1) Fan characteristics (3)
(Airflow auto adjustment)
Airflow [m³/min]
Airflow [m³/min]
Fan characteristics (2)
(Field setting with remote control)
Range of available air flow rate (H)
Airflow [m³/min]
NOTES
1 Fan characteristics as shown ar in “fan only” mode.
2 ESP: External static pressure
Upper limit of ESP
(max. ESP)
H (max. ESP)
M (max. ESP)
L (max. ESP)
Lower limit of ESP
(max. ESP)
H (std ESP)
M (std ESP)
L (std ESP)
Lower limit of ESP
(std. ESP)
Upper limit of ESP
(std. ESP)
Upper limit of ESP
Upper limit of ESP by
airflow auto adjustment
Lower limit of ESP by
airflow auto adjustment
Lower limit of ESP
External static pressure [Pa]
External static pressure [Pa]
H
M
L
External static pressure [Pa]
