Indoor Unit Installation
4-2. Installation
Exposed installation

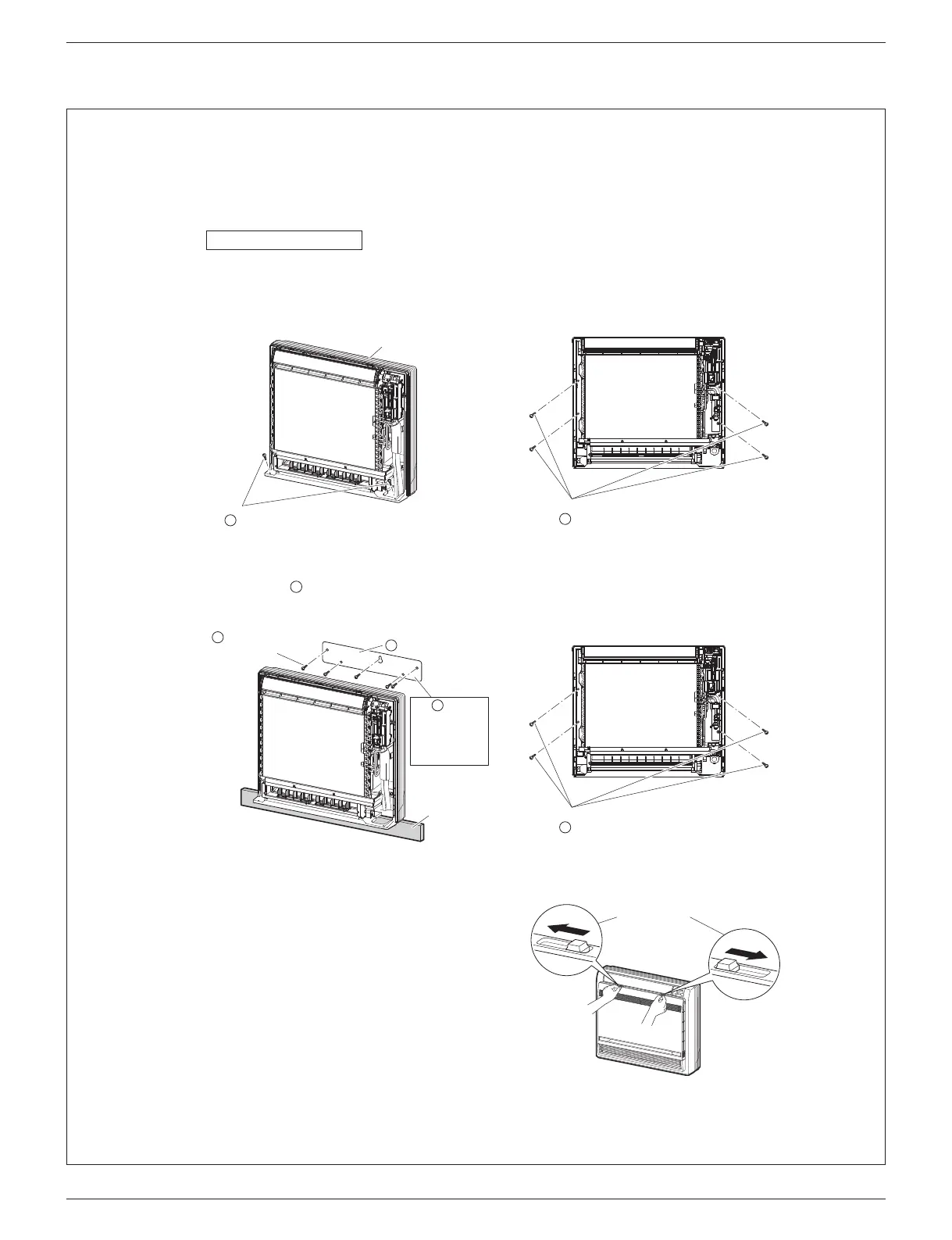

1) Secure the indoor unit
[Floor Installation]
• Secure the indoor unit using 6 screws. (2 screws for oor and 4 screws for rear wall)
Casing
2 screws
Indoor unit fixing screws
3/16” × 1” (M4 × 25mm)
H
4 screws
Indoor unit fixing screws
3/16” × 1” (M4 × 25mm)
H
[Wall Installation]
• Secure the
A
mounting plate using 5 screws.
• Secure the indoor unit using 4 screws for rear wall.
Mounting plate
A
Molding
The mounting
plate should be
installed on a wall
which can support
the weight of the
indoor unit.
A
5 screws
Indoor unit fixing screws
3/16” × 1” (M4 × 25mm)
H
4 screws
Indoor unit fixing screws
3/16” × 1” (M4 × 25mm)
H
2) Once refrigerant piping and drain piping connections are complete, fill in the gap of the through hole with putty.
Any gaps will result in the accumulation of condensation on the refrigerant pipe and drain pipe, as well as
allowing the intrusion of insects and dirt.
3) Attach the left, right and upper casings in their original
positions using 7 screws.
4) Attach the front grill in its original position using 4 screws.
5) Attach the front panel in its original position.
• Attach the string to the right, inner-side of the front grille.
• Close the front panel and slide until the 2 stoppers click
outside.
Slide the stoppers
