Daikin FDMQ-R Series User Manual

16
FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
27-9/16 (700mm)
UP/DOWN (AUTOMATIC)RIGHT/LEFT (MANUAL)
COOL, DRY HEAT
40°
25°
90°
90°
45°
7/8 (21.5mm) 2-5/16 (58.5mm)
45°
20°
20°
90°
90°
45°
7-7/16 (189mm)
45°
ARC466A21

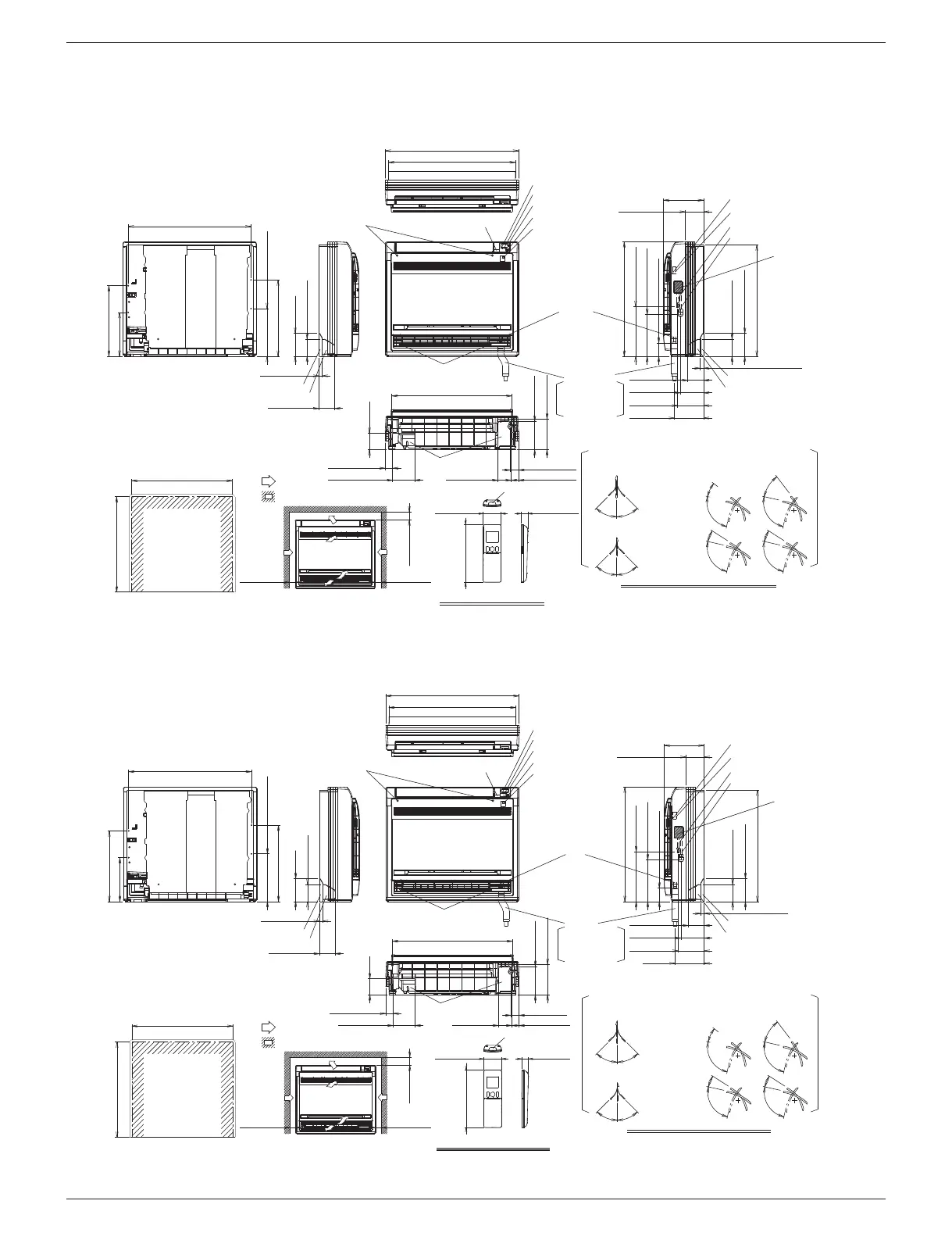

NOTE) 1. THE MARK (→) SHOWS PIPING DIRECTION
25-3/8 (644mm)
MAIN UNIT FIXING SCREW
14-9/16 (370mm)
9-1/16 (230mm)
9-13/16 (250mm)
15-3/4 (400mm)
4-3/4 (120.5mm)
3-9/16 (90mm)
11/16 (17mm)
HOLE FOR SPLINT
HOLE FOR PIPING
3-1/4 (82mm)
(WALL HOLE)
26-3/8 (670mm) ~ 27-3/16 (690mm)
(WALL HOLE)
23-1/16 (585mm) ~ 23-7/16 (595mm)
WALL HOLE FOR HALF CONCEALED
AIRFLOW
REQUIRED SPACE
1-15/16
(50mm) MIN
(FOR MAINTENANCE
AND PERFORMANCE)
1-15/16
(50mm) MIN
WIRELESS REMOTE CONTROLLER
(FOR MAINTENANCE
AND PERFORMANCE)
2-3/4 (70mm) (FOR PERFORMANCE)
SIGNAL TRANSMITTER
HOLE
FOR PIPING
2-3/4 (70mm)
3-3/8 (85mm)
1-1/2 (38.5mm)
4-1/2 (115mm)
24-13/16 (630mm)
FIXED SCREWS FOR MAIN UNIT
1-3/4 (44mm)
1-1/2 (38.5mm)
FIXED SCREWS FOR FRONT PANEL
5-7/8 (149mm)
6-5/16 (160mm)
DRAIN HOSE
VP20
I.D. φ13/16 (φ20mm)
O.D. φ1 (φ26mm)
L8-11/16 (220mm)
DRAIN
SOCKET
MODEL NAME
LABEL
FIXED SCREWS FOR FRONT GRILLE
(INSIDE)
26-1/4 (666mm) (HALF CONCEALED)
OPERATION LAMP
TIMER LAMP
SIGNAL RECEIVER
INDOOR UNIT ON/OFF SWITCH
AIR OUTLET
SELECTION
SWITCH
(INSIDE)
3-3/4 (95mm)
(HALF CONCEALED)
8-1/4 (210mm)
ROOM TEMP. THERMISTOR
TERMINAL BLOCK
WITH GROUND TERMINAL
LIQUID PIPE (φ1/4 (φ
6.4mm CuT))
GAS PIPE (φ1/2 (φ12.7mm CuT))
NAME PLATE
3-9/16 (90mm)
4-3/4 (120.5mm)
23 (584mm)
(HALF CONCEALED)
23-5/8 (600mm)
10-1/4 (261mm)
8-5/8 (218.5mm)
2-3/4 (70mm)
11/16 (17mm)
HOLE FOR SPLINT
HOLE FOR PIPING
3-1/4 (82mm)
4-3/4 (121mm)
5-3/8 (136mm)
6 (152mm)
UPPER AIR OUTLET
LOWER AIR OUTLET
UPWARD
AIRFLOW LIMIT
[OFF]
UPWARD
AIRFLOW LIMIT
[ON]
ADJUSTING THE AIRFLOW DIRECTION
↓ ↓
←
↑ ↑
→
C: 3D091774A
FVXS15NVJU
27-9/16 (700mm)
OPERATION LAMP
TIMER LAMP
8-1/4 (210mm)
ROOM TEMP. THERMISTOR
SIGNAL RECEIVER
3-3/4 (95mm)
(HALF CONCEALED)
INDOOR UNIT ON/OFF SWITCH
25-3/8 (644mm)
LIQUID PIPE (φ1/4 (φ
6.4mm CuT))
MAIN UNIT FIXING SCREW
GAS PIPE (φ3/8 (φ9.5mm CuT))
NAME PLATE
9-13/16 (250mm)
8-5/8 (218.5mm)
10-1/4 (261mm)
23-5/8 (600mm)
2-3/4 (70mm)
23 (584mm)
4-3/4 (120.5mm)
3-9/16 (90mm)
3-9/16 (90mm)
15-3/4 (400mm)
14-9/16 (370mm)
9-1/16 (230mm)
4-3/4 (120.5mm)
11/16 (17mm)
FIXED SCREWS FOR FRONT PANEL
11/16 (17mm)
3-1/4 (82mm)
DRAIN HOSE
HOLE FOR SPLINT
HOLE FOR SPLINT
4-3/4 (121mm)
24-13/16 (630mm)
HOLE FOR PIPING
HOLE FOR PIPING
5-3/8 (136mm)
FIXED SCREWS FOR MAIN UNIT
3-1/4 (82mm)
6-5/16 (160mm) 5-7/8 (149mm)
6 (152mm)
3-3/8 (85mm)
UP/DOWN (AUTOMATIC)RIGHT/LEFT (MANUAL)
1-1/2 (38.5mm)
COOL, DRY HEAT
1-3/4 (44mm)
UPPER AIR OUTLET
2-3/4 (70mm)4-1/2 (115mm) 1-1/2 (38.5mm)
26-3/8 (670mm)~27-3/16 (690mm)
AIR FLOW
40°
(WALL HOLE)
25°
SIGNAL TRANSMITTER
REQUIRED SPACE
90°
90°
45°
7/8 (21.5mm) 2-5/16 (58.5mm)
45°
LOWER AIR OUTLET
20°
20°
2-3/4 (70mm)
90°
90°
45°
7-7/16 (189mm)
45°
ADJUSTING THE AIR FLOW DIRECTION
UPWARD
AIR FLOW LIMIT
[OFF]
UPWARD
AIR FLOW LIMIT
[ON]
TERMINAL BLOCK
WITH GROUND TERMINAL
(HALF CONCEALED)
VP20
I.D. φ13/16 (φ20mm)
O.D. φ1 (φ26mm)
L8-11/16 (220mm)
DRAIN
SOCKET
AIR OUTLET
SELECTION
SWITCH
(INSIDE)
↑
→
26-1/4 (666mm) (HALF CONCEALED)
MODEL NAME
LABEL
FIXED SCREWS FOR FRONT PANEL
(INSIDE)
↑
←
↓
↓
HOLE
FOR PIPING
(FOR PERFORMANCE)
ARC466A21
WIRELESS REMOTE CONTROLLER
1-15/16
(50mm) MIN
(FOR MAINTENANCE
AND PERFORMANCE)
(FOR MAINTENANCE
AND PERFORMANCE)
1-15/16
(50mm) MIN
23-1/16 (585mm)~23-7/16 (595mm)
(WALL HOLE)
WALL HOLE FOR HALF CONCEALED
NOTE) 1. THE MARK (→) SHOWS PIPING DIRECTION
3D091758
FVXS09/12NVJU
