FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
3P572321-4B
3

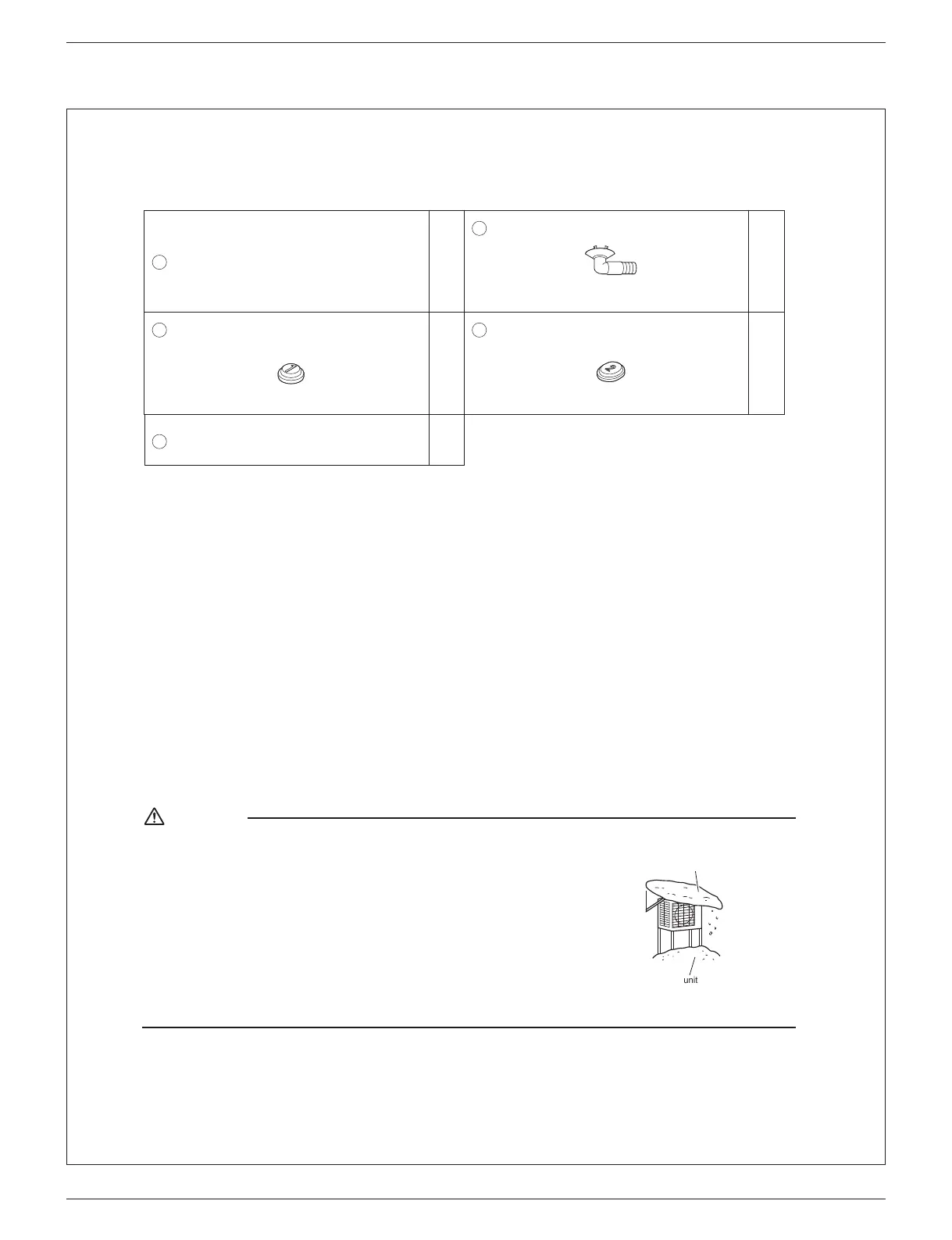

Accessories
1
Installation manual
A
This is at the bottom of the packaging.
1
Drain socket
B
6
1
3
Drain cap (1)
C
Drain cap (2)
D
Warranty
E
Precautions for Selecting a Location
1) Chooseaplacesolidenoughtobeartheweightandvibrationoftheunit,wheretheoperatingsoundwillnotbeamplied.
2) Choose a location where the air discharged from the unit or the operating sound will not cause a nuisance to the neighbors of
the user.
3) Avoid locations, such as near bedrooms, where the operating sound may cause disturbance.
4) Theremustbesufcientspacetocarrytheunitintoandoutofthesite.
5) Theremustbesufcientspaceforairpassageandnoobstructionsaroundtheairinletandtheairoutlet.
6) Thesitemustnotbepronetoammablegasleaksinthesurroundingarea.
7) In coastal areas or other places with a salty atmosphere or one containing sulfate gas, corrosion may shorten the life of the air
conditioner.
8) Sincewaterwillowfromthedrainoftheoutdoorunit,donotplaceundertheunitanythingwhichmustbekeptawayfrom
moisture.
NOTE
Cannot be installed suspended from a ceiling or stacked.
CAUTION
When operating the air conditioner in a low outdoor ambient temperature, be sure to
follow the instructions described below.
• To preventexposuretowind,installtheoutdoorunitwithitssuction side facing the
wall.
• Neverinstalltheoutdoorunitatasitewherethesuctionsidemaybeexposed
directly to wind.
• To preventexposuretowind,itisrecommendedtoinstallabafeplateontheair
discharge side of the outdoor unit.
• In heavy snow areas, select an installation site where the snow will not affect the unit.
• If there is a likelihood of snow accumulating on the outdoor unit, attach a snow
protection hood.
• In high humidity areas or heavy snow areas, it is recommended to attach a drain pan
heater to prevent ice build-up from the bottom frame.
• Construct a large canopy.
• Construct a pedestal.
Install the unit high enough off
the ground to prevent burying
in snow.
01_EN_3P572321-4B.indd 3 2019/10/17 14:46:58
