FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
1P398933-1C
r 4GOQXCNOGVJQF
1) 2NCEG[QWTƂPIGTUKPVJGKPFGPVCVKQPUQPVJGOCKPWPKV
(one each on the left and right sides), and open the
panel until it stops.
2) Continue to open the front panel further while sliding the
panel to the left and pulling it toward yourself in order to
disengage the rotating shaft on the left side.
To disengage the rotating shaft on the right side, slide
the panel to the right while pulling it toward yourself.
r +PUVCNNCVKQPOGVJQF
Align the rotating shaft of the front panel with the grooves,
and push all the way in. Then close slowly.
Push both the sides and the center of the lower surface of
VJGRCPGNƂTON[
r +PUVCNNCVKQPOGVJQF
1) +PUVCNNVJGHTQPVITKNNGCPFƂTON[GPICIGVJGWRRGT
hooks (3 locations).
2) Insert 2 screws of the front grille.
3) +PUVCNNVJGCKTƂNVGTVJGPOQWPVVJGHTQPVRCPGN
< 9JGPVJGTGKUPQYQTMURCEGDGECWUGVJG
WPKVKUENQUGVQEGKNKPI>
&KUGPICIGVJGƃCRJQTK\QPVCNDNCFGCPFRWNNVJGNQYGT
part of the front grille toward yourself to remove it.
+HKVKUFKHƂEWNVVQTGOQXGRNCEGDQVJJCPFUWPFGTVJG
center of the front grille, and while pushing up, pull it
toward yourself.
r 4GOQXCNOGVJQF
1) Remove front panel.
2) 4GOQXGVJGCKTƂNVGT
3) Remove the screws (2) from the front grille.
4) &KUGPICIGJQQMUVJGNQECVKQPECPDGKFGPVKƂGFD[
mark) at the top of the grille.

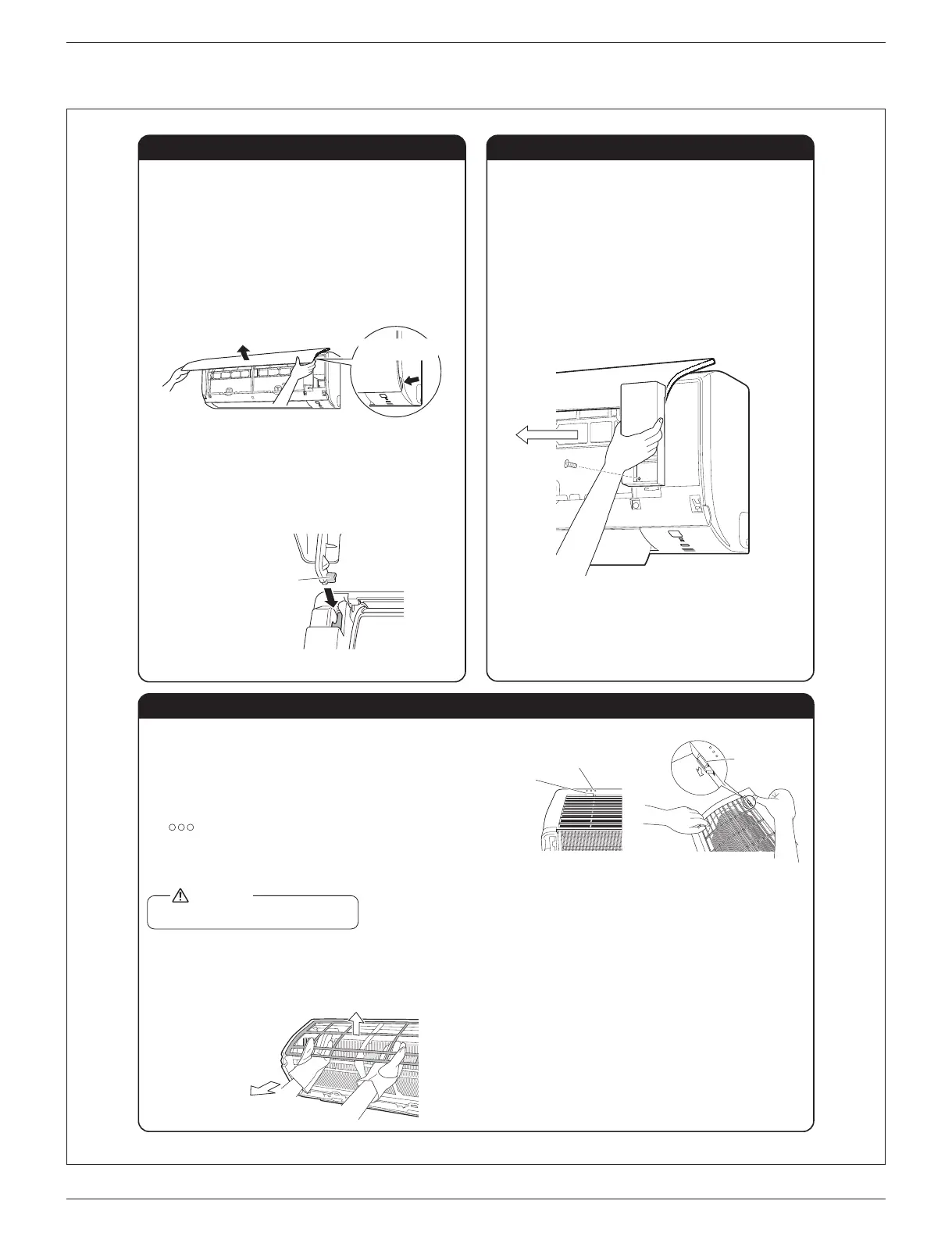

4GOQXCNCPF+PUVCNNCVKQPQH(TQPV2CPGN
4GOQXCNCPF+PUVCNNCVKQPQH(TQPV)TKNNG
Be sure to wear protection gloves.
CAUTION
1RGPKPI5GTXKEG.KFQH+PFQQT7PKV
The service lid is of removable type.
r 1RGPKPIOGVJQF
1) Remove the single screw of the service lid.
2) Pull out the service lid frontward.
Rotating shaft
Push the rotating shaft
of the front panel into
the groove.
1) Push up.
2) Pull toward yourself.
{{{ mark area
(3 locations)
Hook
Push
down.
Hook
Indentations on
the main unit
