Drain pan heater
A
M4 piercing screw
B
Binding band
C
Sealing material
D
Installation manual
(multi-language)
E
Electric wiring
diagram label
F
Information label
G
Appearance of the drain pan heater may differ from some
models.
Accessories
Tools Required for Installation

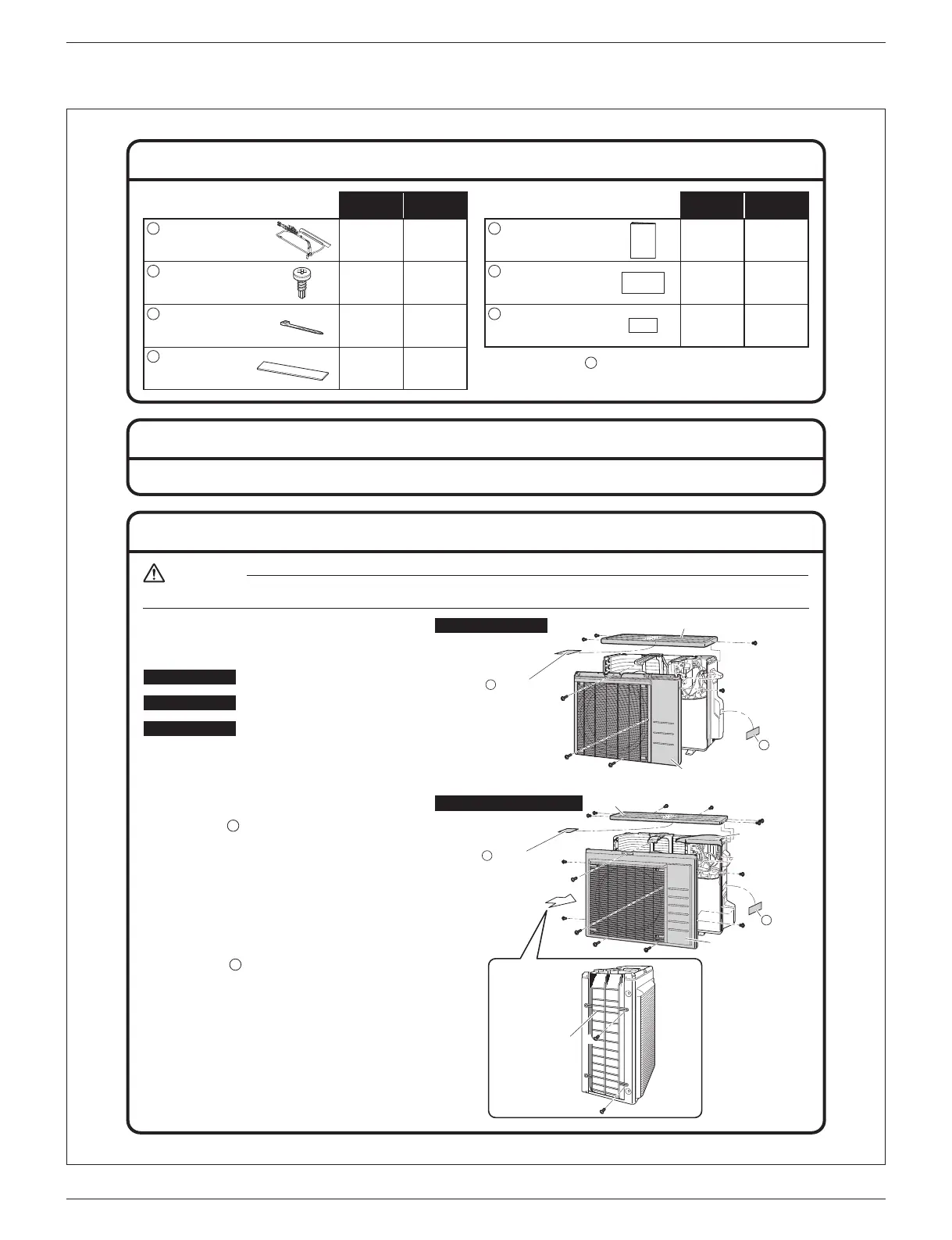

Installation Procedure (1)
r Electric drill r
I
1/8 inch (
I
3.2mm) drill r Phillips screwdriver r0ippers
1. Remove each component of
the outdoor unit.
1) Remove the top plate.
2) AfƂx the electric wiring diagram label
where there is enough space available on
the back of the top plate.
3) Remove the screws from the protective
wire mesh if one is Ƃtted. (2 screws)
(For type B and C models only)
4) Remove the front plate.
5) Remove the anti-drip cover.
(For type B and C models only)
6) AfƂx the information label near the
manufacture’s label.
r The appearance of the outdoor unit and
the number of screws may differ from some
models.
r Screw types for each component are
indicated as below.
0o icon: Hexagon tapping screw
U : Truss head tapping screw
F
G
r Be sure to check that the power supply of the product is turned off.
WARNING
Type C models
Type A models
: R:/12 R:0/12 R:L/12
Type B models
: R:15/18/24 R:018/24 R:L15
: 2/3/4M:S 2/3M:L R:3/36
Some stages in the installation procedure differ by
model of outdoor unit. Refer to the instructions for the
relevant model.
For type A models
For type B and C models
A
Front plate
Front plate
Anti-drip cover
Electric wiring
diagram label
F
Electric wiring
diagram label
F
Protective
wire mesh
U
Top plate
Top plate
Information
label
G
Information
label
G
A
