Si041264EC Swing Motor / PCBs
Removal Procedure 9
6. Swing Motor / PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

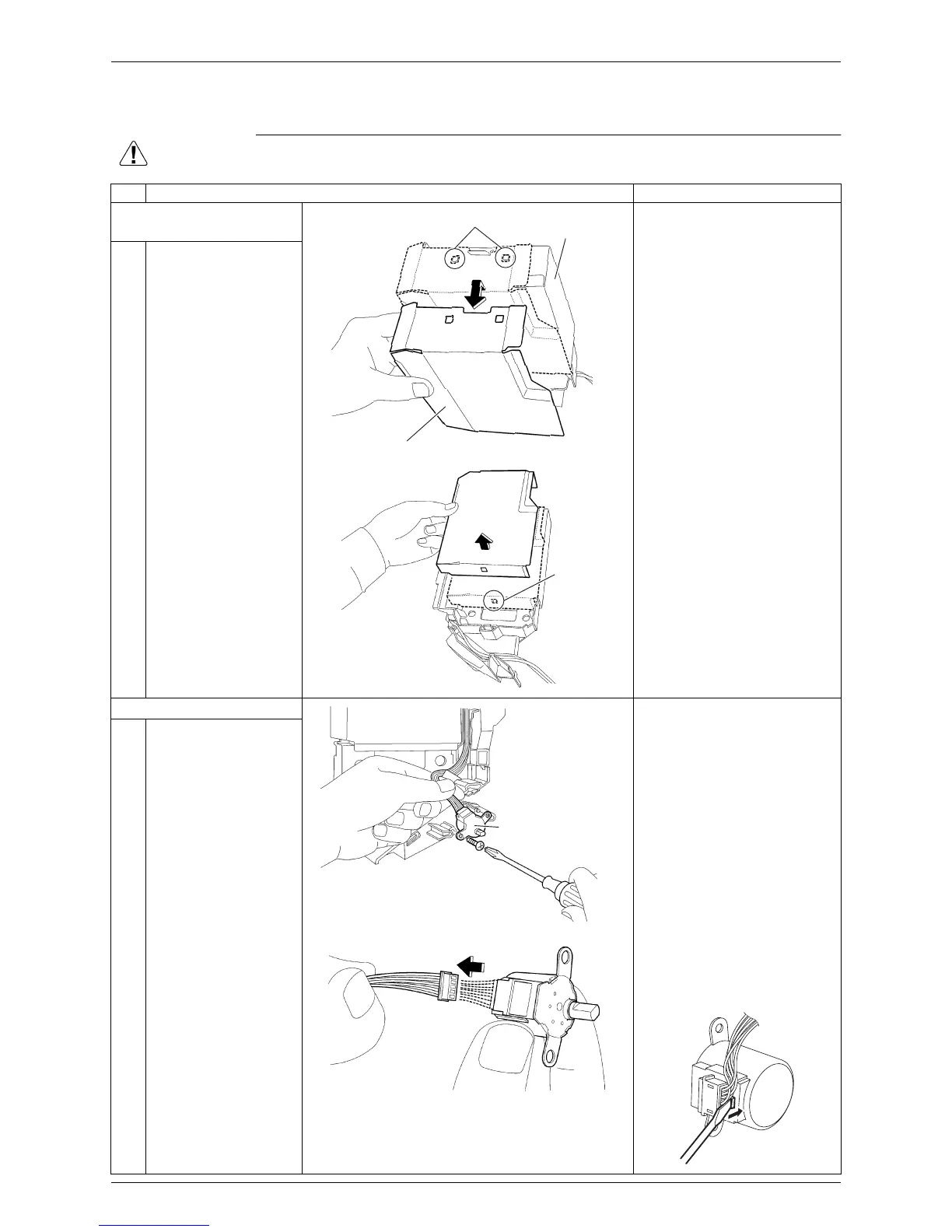

Step Procedure Points
1. Remove the shield plate
(1).
1 Unfasten the 2 hooks at
the top of the shield
plate (1).
2 Unfasten the hook at
the bottom and remove
the shield plate (1).
2. Remove the swing motor.
1 Remove the screw of
the swing motor.
2 Disconnect the
connector.

The connector of the swing
motor has a hook.
Press the hook with a flat
screwdriver to unfasten it.
Electrical box
Shield plate (1)
Hook
(R23306)
Hook
(R16650)
(R11650)
Swing motor
(R8037)
(R14847)
