Electrical Box / Vertical Blades Si041264EC

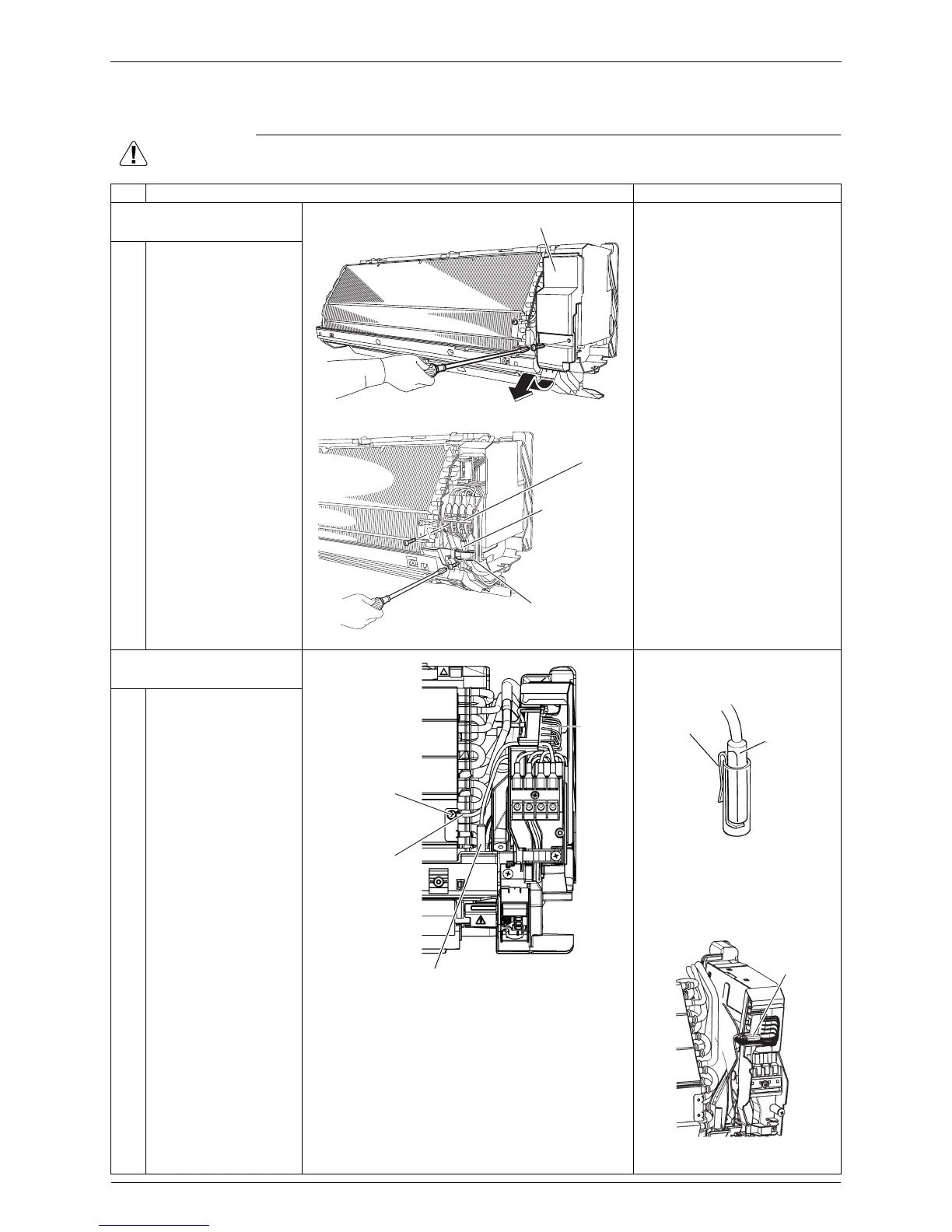

6 Removal Procedure
5. Electrical Box / Vertical Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Disconnect the
connecting wires.
1
2
Remove the screw of
the service cover.
Pull out the service
cover in the direction of
the arrow.
3
4
Remove the screw and
remove the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wires.
2. Remove the electrical
box.

Take care not to lose the clip
of the thermistor.
[S200]: fan motor

Release the fan motor
harnesses from the hook.
1
2
3
Remove the screw and
disconnect the earth /
ground wire.
Pull out the indoor heat
exchanger thermistor.
Disconnect the
connector [S200].
(R18190)
Service cover
(R18237)
Wire
fixture
Connecting
wires
Terminal board
Screw
(R20664)
Indoor heat exchanger thermistor
[S200]
Earth / ground
wire
Clip
(R11268)
Thermistor
(R14602)
Hoo
k
