Si041264EC Horizontal Blade
Removal Procedure 3

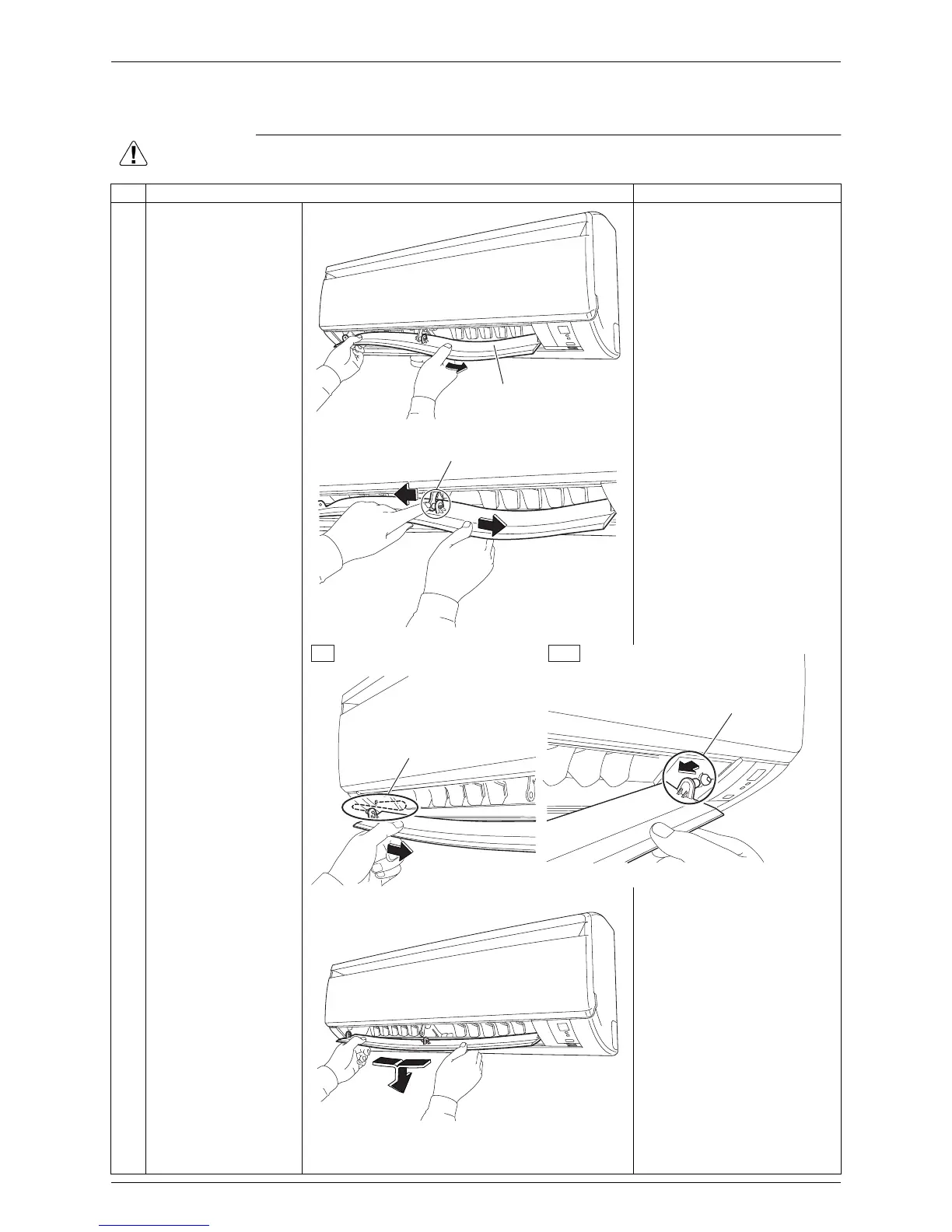

2. Horizontal Blade
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Release the center
shaft while bending the
horizontal blade
slightly.
Installation procedure
1. Fit the right shaft of the
horizontal blade first. Make
sure to rotate the horizontal
blade so the shaft fits in the
correct position.
2. Fit the horizontal blade to the
center and left shafts.
2
3
Release the left shaft.
Release the right shaft.
4 Remove the horizontal
blade.
(R18188)
Horizontal blade
(R23355)
Shaft
(R23349)
Shaft
Left
Right
Shaft
(R17333)
To Next Page
