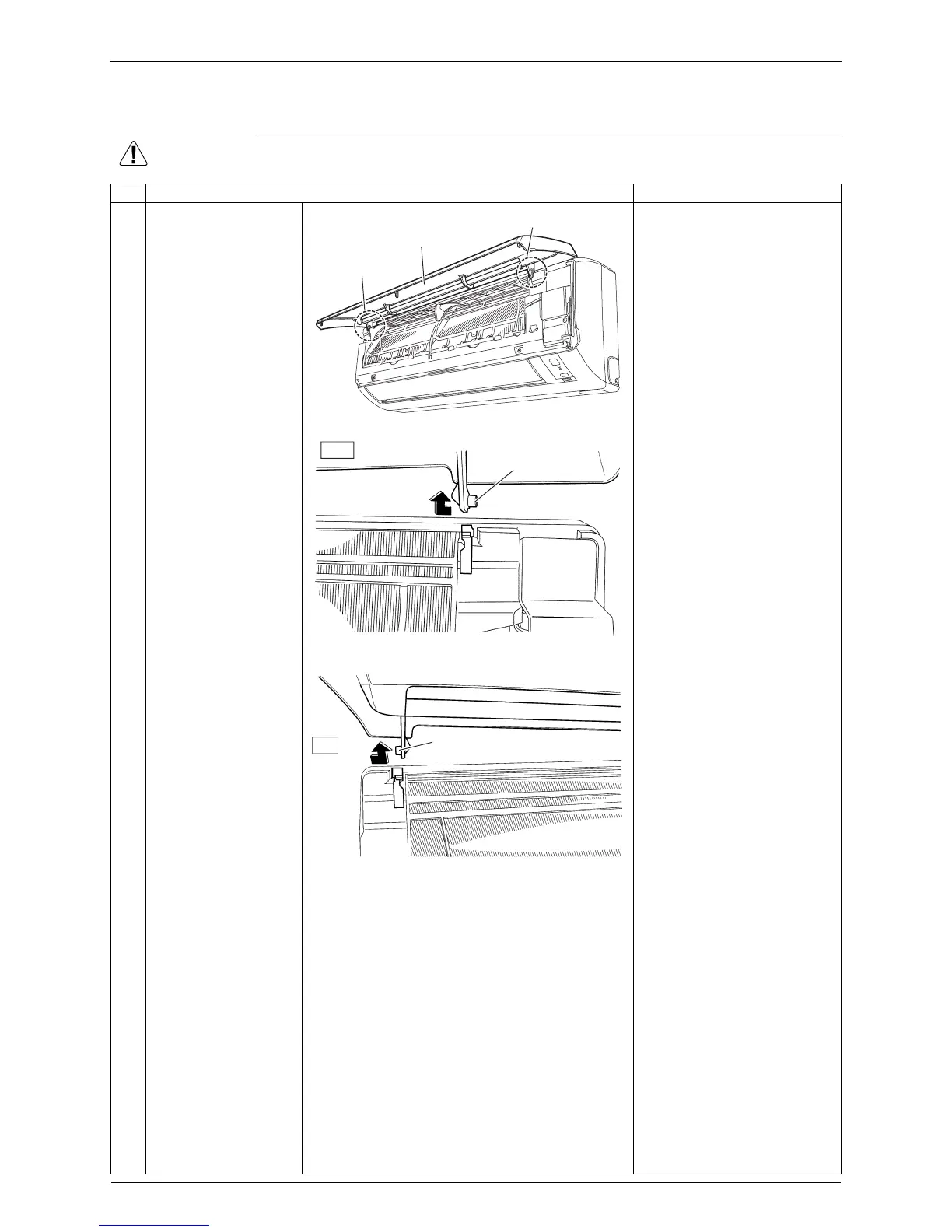

Front Panel Si041264EC
4 Removal Procedure
3. Front Panel
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Open the front panel.
2 Release the right rotary
shaft.
The rotary shaft on each
side can be released by
sliding each shaft inward.
3 Release the left rotary
shaft and remove the
front panel.
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
Left side
Front panel
Right side
(R11627)
Right
Rotary shaft
(R11628)
Left
Rotary shaft
(R11629)
To Next Page
