Si041264EC Swing Motor / PCBs
Removal Procedure 11

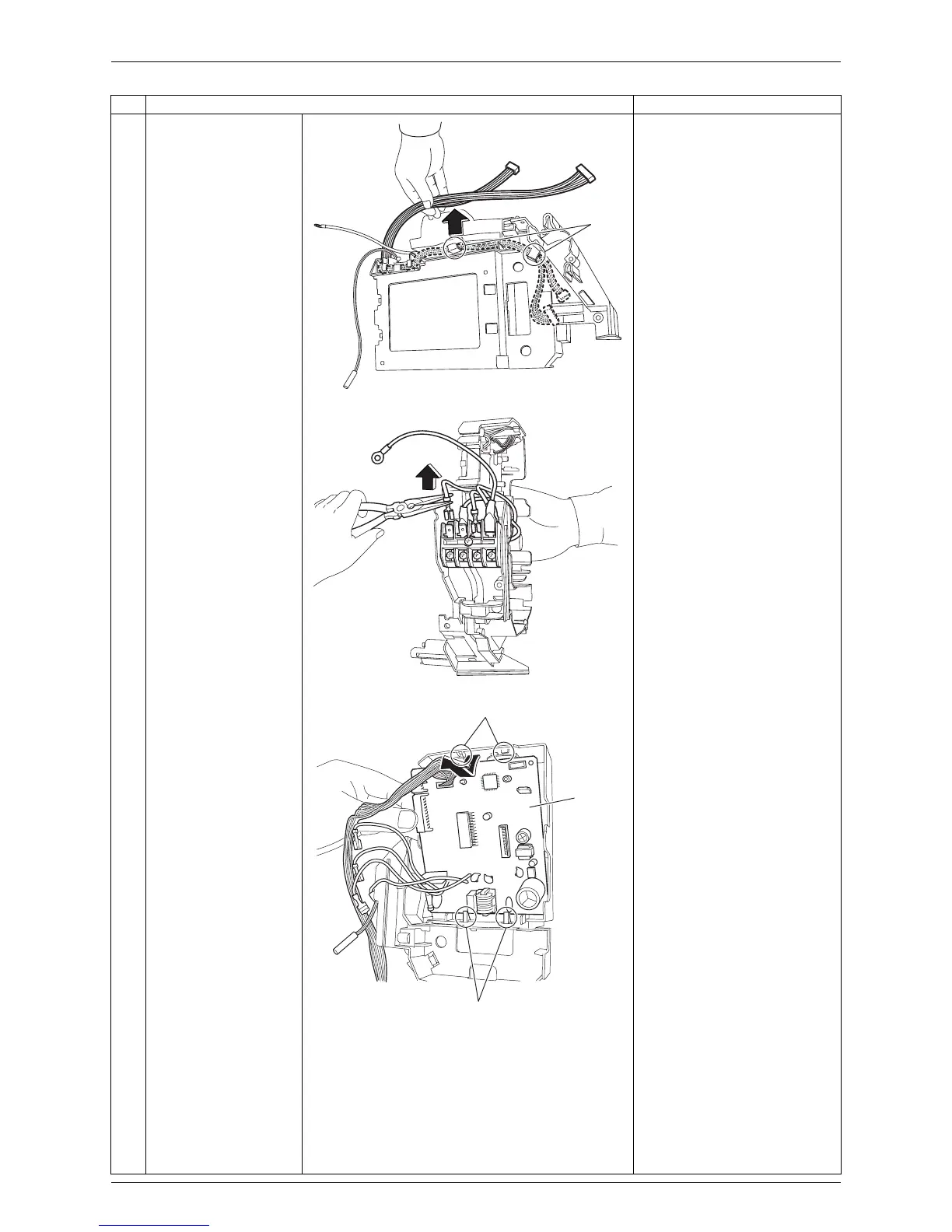

3 Release the harnesses
from the 2 hooks.
4 Disconnect the
terminals from the
terminal board.
5 Unfasten the 4 hooks.
Release the upper part
of the control PCB and
then pull up to remove.
Step Procedure Points
(R18248)
Hook
(R14609)
(R11943)
Control
PCB
Hook
Hook
