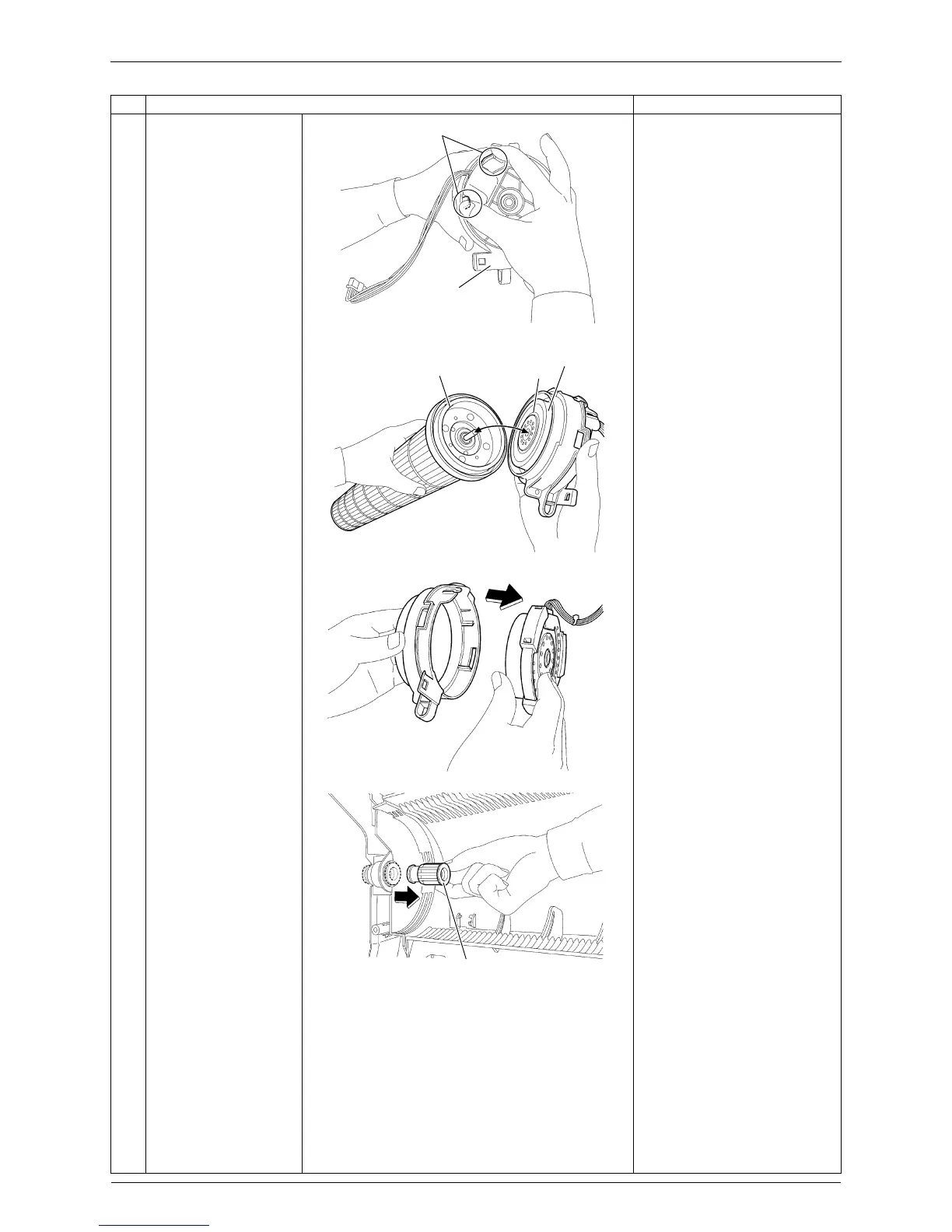

Fan Rotor / Fan Motor Si041264EC
16 Removal Procedure
4 Unfasten the 2 hooks of
the motor cover.
5 Pull out the fan motor
from the fan rotor and
remove it.
The magnet of the fan motor
is attached to the fan rotor.
Be careful not to attract
metal waste to the magnet.
Keep away from other
materials that can be
affected by magnetic force.
6 Remove the bearing on
the left side.
Step Procedure Points
(R8051)
Hook
Motor cover
Magnet
Coil
Fan motor
(R8052)
(R8053)
(R18196)
Bearing
To Next Page
