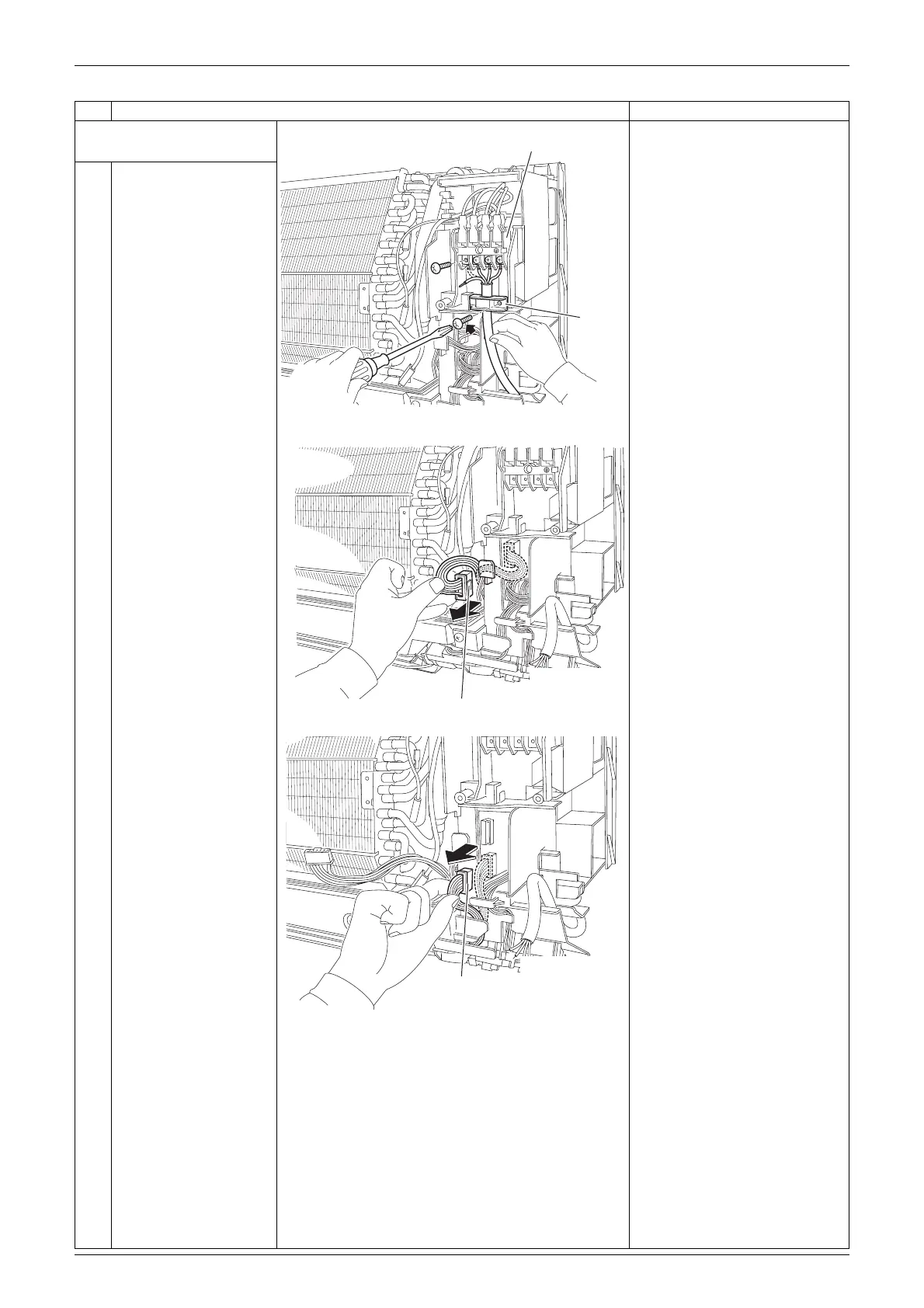

Si041144 Removal of Electrical Box
Removal Procedure 9
4. Remove the electrical
box.
1
Remove the 4 screws
and disconnect the
connection wires on the
terminal board.
Remove the screw and
remove the wire
retainer.
2
Disconnect the
connector for the fan
motor [S1] and release
the harness from the
hook.
3
Disconnect the
connector for the swing
motors [S41].
Step Procedure Points
1
2
3
(R16277)
Terminal board
Wire
retainer
1
2
3
(R16278)
[S1]
(R16279)
[S41]
