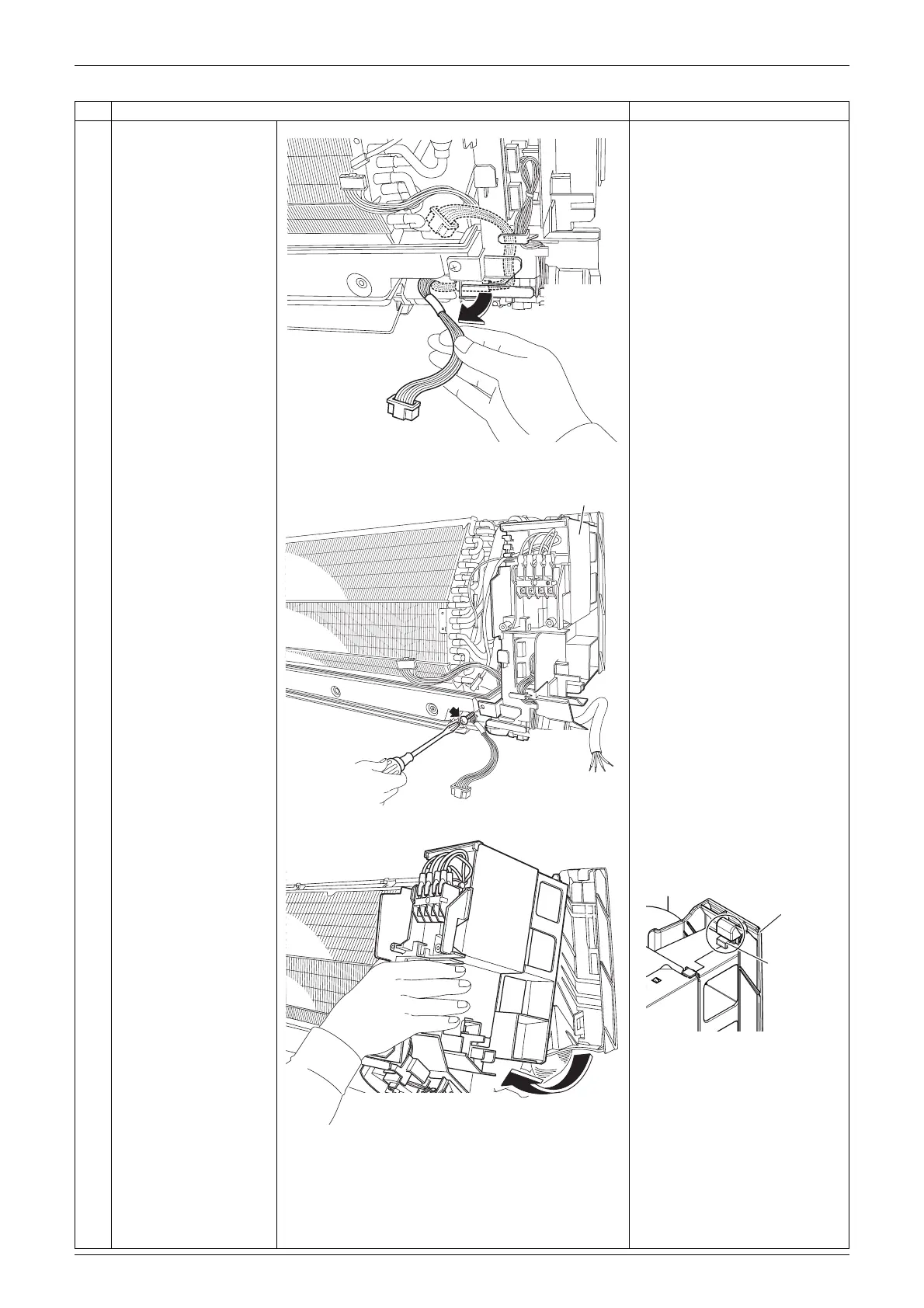

Removal of Electrical Box Si041144
10 Removal Procedure
4
Release the harness
from the hooks.
5
Remove the screw of
the electrical box.
6
Lift up the electrical box
from the bottom frame
and remove it.

Fit the back hook of the
electrical box to the bottom
frame when reassembling.
Step Procedure Points
(R16280)
1
2
3
(R16281)
Electrical box
(R16282)
(R9647)
Bottom frame
Hook
