Removal of PCBs Si041144

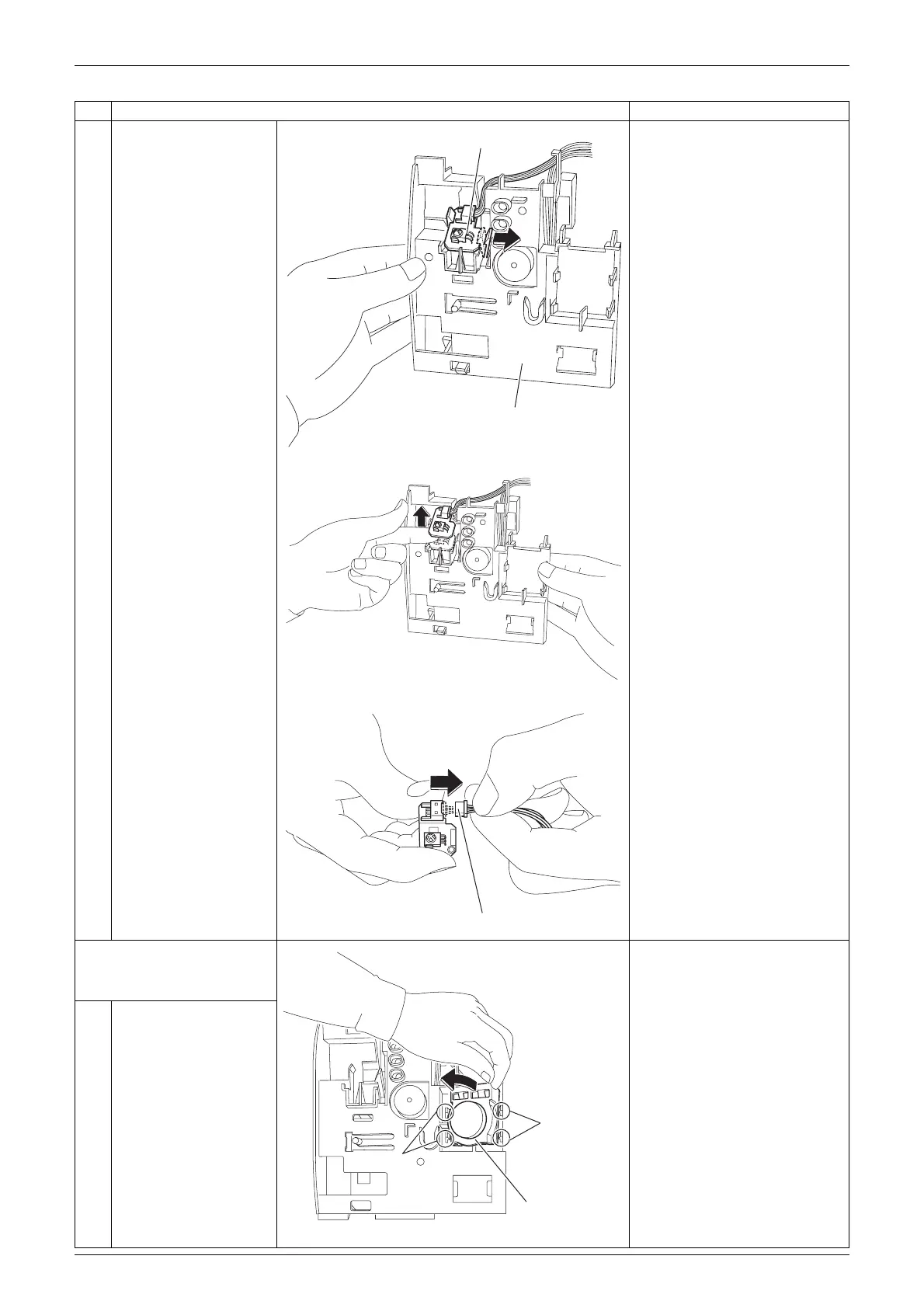

14 Removal Procedure
10
Unfasten the hook on
the right of the signal
receiver PCB.
(Then the signal
receiver PCB is lifted
up.)
11
Remove the signal
receiver PCB.
12
Disconnect the
connector.
[S48] : to control PCB
2. Remove the
INTELLIGENT EYE
sensor PCB.

Some models have no
INTELLIGENT EYE sensor
PCB.
1
Unfasten the 2 hooks
on the right and then
the 2 hooks on the left.
Remove the
INTELLIGENT EYE
sensor ASSY.
Step Procedure Points
(R16513)
Signal receiver PCB
Signal receiver unit
(R16514)
(R9522)
[S48]
(R9523)
Hook
Hook
INTELLIGENT EYE
sensor ASSY
