Si041144 Removal of PCBs
Removal Procedure 15
2

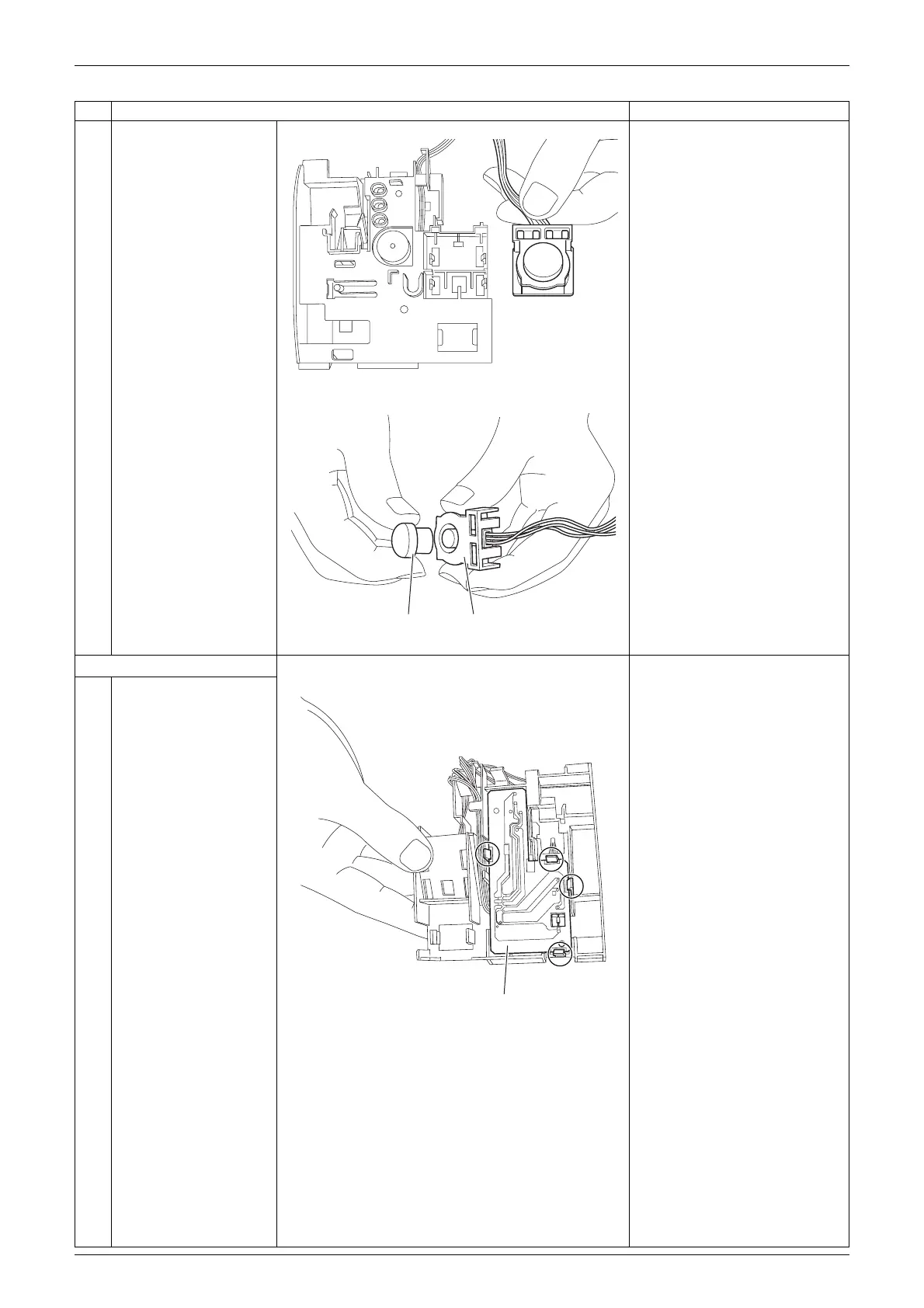

Remove the sensor
from the shield plate.

When reassembling, set the
sensor at the position where
it “clicks”. Otherwise, the
sensor is not completely set.
3. Remove the display PCB.
1
Unfasten the 4 hooks.
Step Procedure Points
(R9524)
(R9525)
Sensor Shield plate
(R9528)
Display PCB
