Si041144 Removal of Horizontal Blades / Swing Motors
Removal Procedure 21

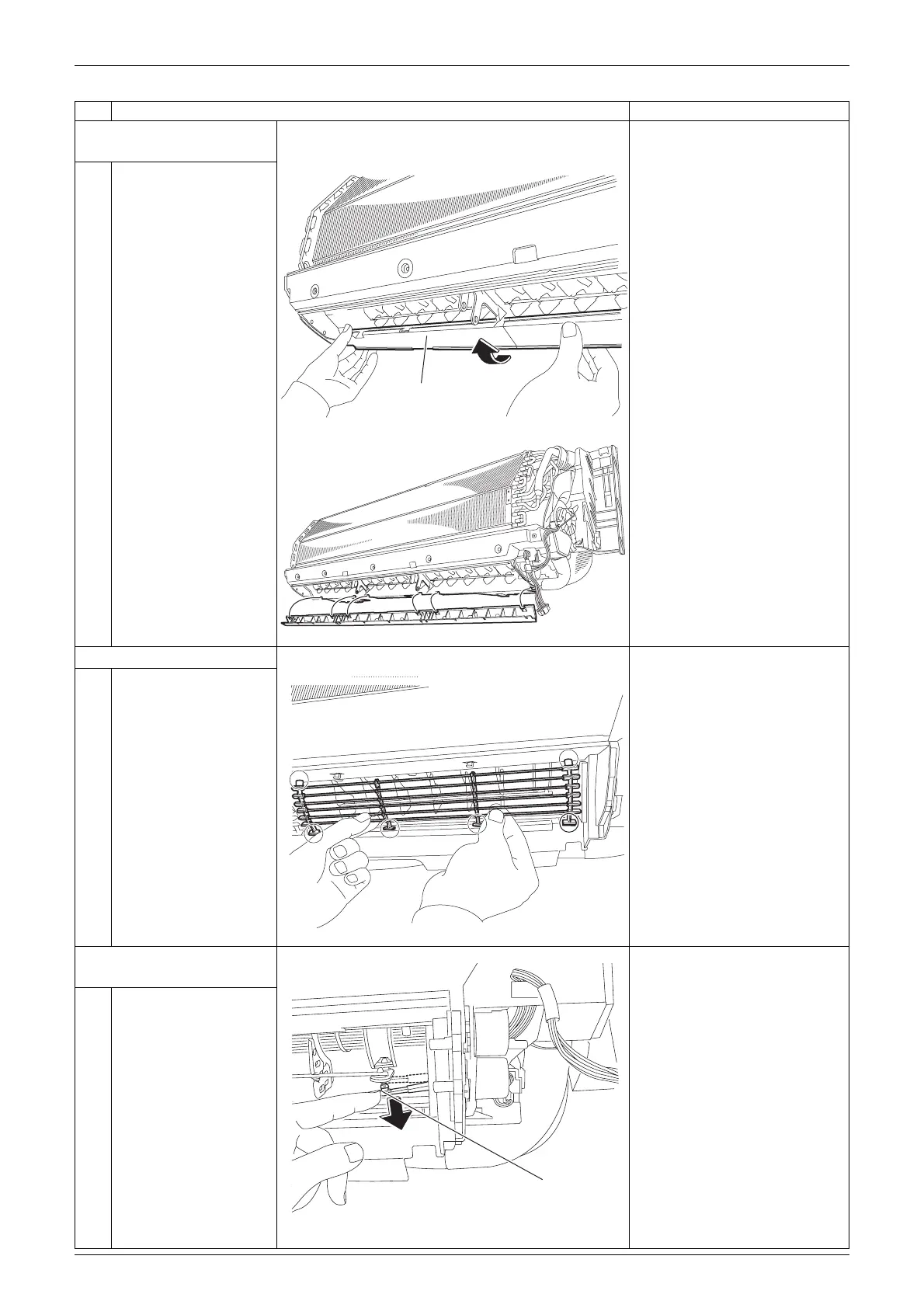

2. Remove the air outlet
ASSYs.
1
Remove the air outlet
ASSYs by pushing the
2 hooks at the back of
each.

The 3 air outlet ASSYs are
bound with sealing
materials.
3. Remove the fan guards.
1
Unfasten the 4 lower
hooks and the 2 upper
hooks and remove the
fan guard.

Remove the other 2 fan
guards likewise.

Some models have no fan
guard.
4. Remove the swing motors
for horizontal blades.
1
Release the interlock
rod.
Step Procedure Points
Air outlet ASSY
(R16519)
(R16520)
(R16689)
(R9546)
Interlock rod
