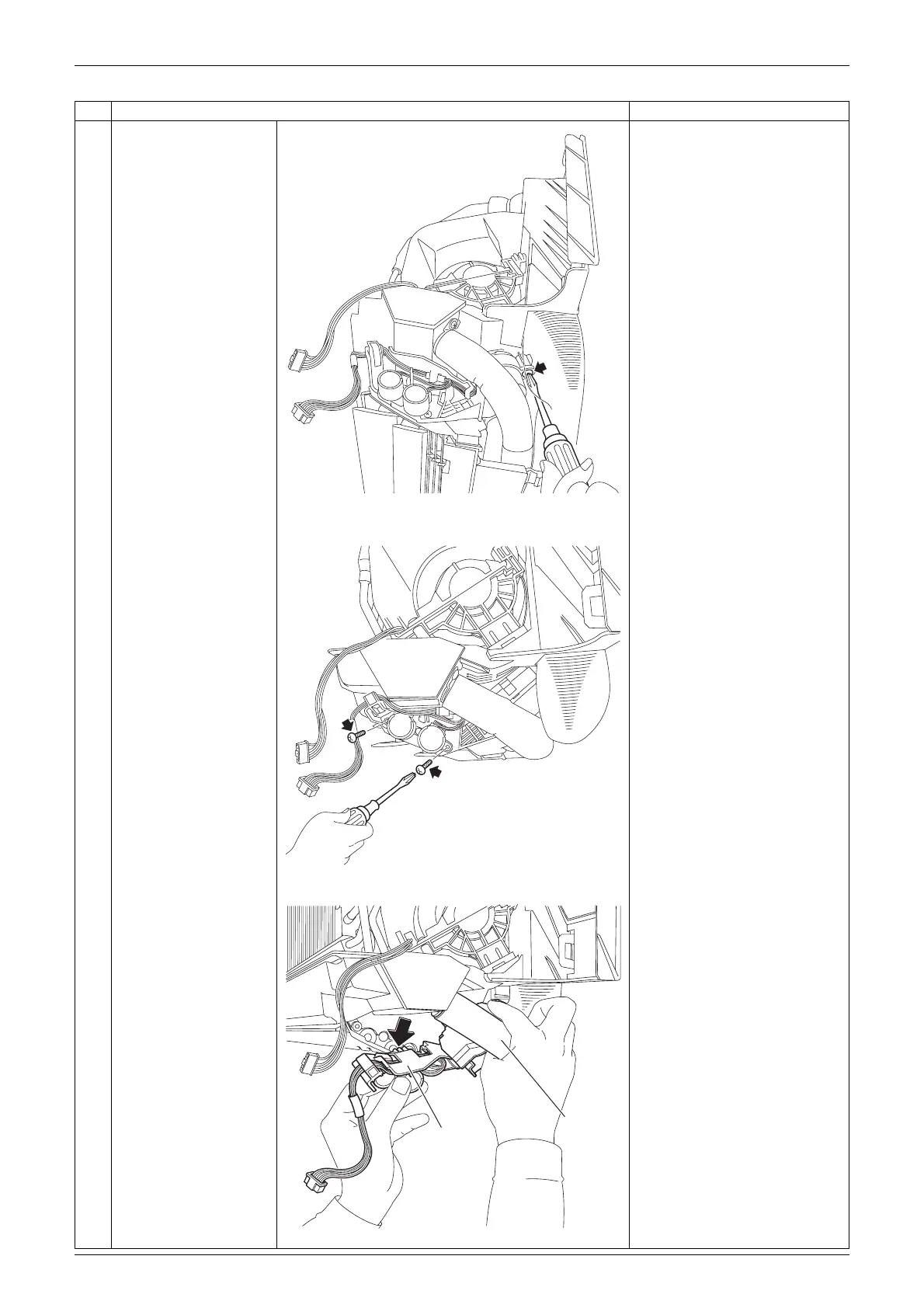

Removal of Horizontal Blades / Swing Motors Si041144
22 Removal Procedure
2
Remove the screw at
the rear of the indoor
unit.
3
Remove the 2 screws
(front and rear).
4
Pull out the drain hose,
then remove the swing
motor unit.
Step Procedure Points
(R16296)
(R16297)
(R16298)
Drain hose
Swing motor
unit
