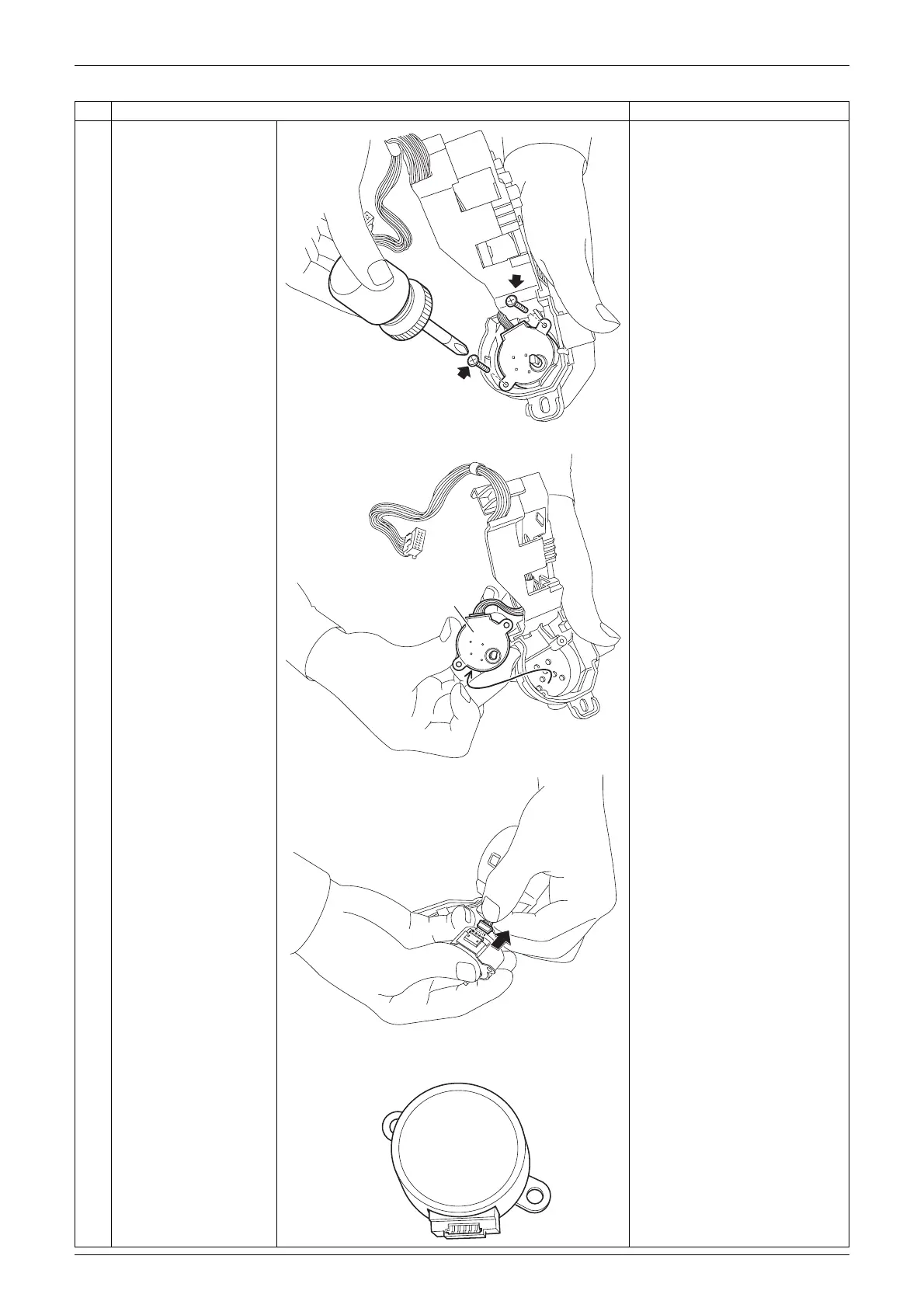

Removal of Horizontal Blades / Swing Motors Si041144
26 Removal Procedure
4
Remove the 2 screws.
5
Remove the swing
motor for the vertical
blade.
6
Disconnect the
connector.
Step Procedure Points
(R9556)
(R9557)
Swing motor for
vertical blade
(R9558)
