Daikin FTKM25PVM Removal Procedure

Si041551EB PCBs
Removal Procedure 9
5
6

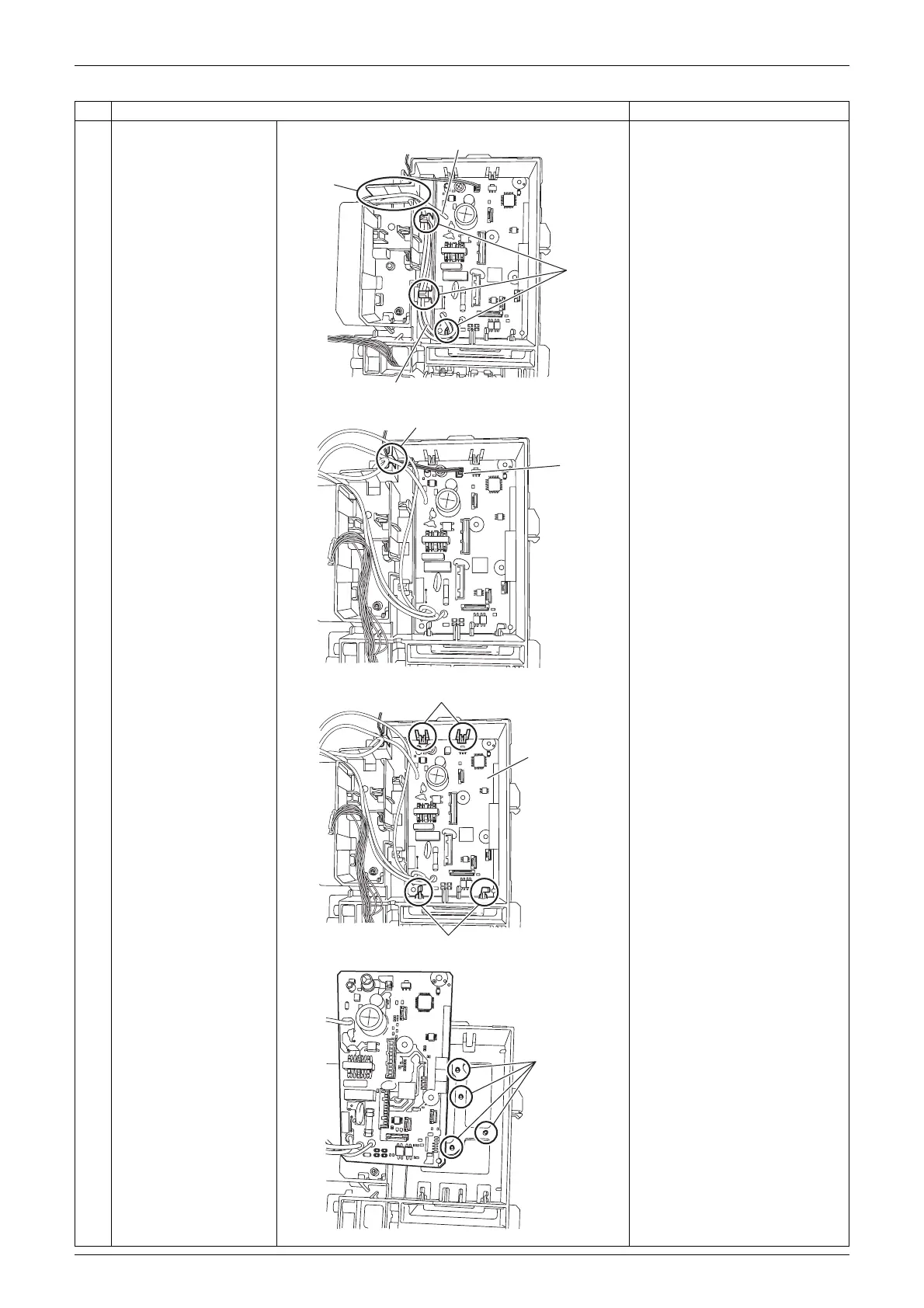

Release the earth/
ground wire (green)
from the groove.
Release the terminal
board harness from the
groove and the 3
hooks.
7 Remove the connector
[S32] and release the
harness from the slit.
[S32]: thermistor
8 Unfasten the 4 hooks
and remove the control
PCB.

When reassembling, be sure
to fit the control PCB to the 4
projections.
Step Procedure Points
Groove
Earth/ground wire (green)
Hook
Terminal board harness
(R22258)
Slit
[S32]
(R24245)
Hook
Hook
Control PCB
(R22259)
Projection
(R22260)
