Daikin FTKM25PVM Removal Procedure

Fan Rotor / Fan Motor Si041551EB
18 Removal Procedure
8. Fan Rotor / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

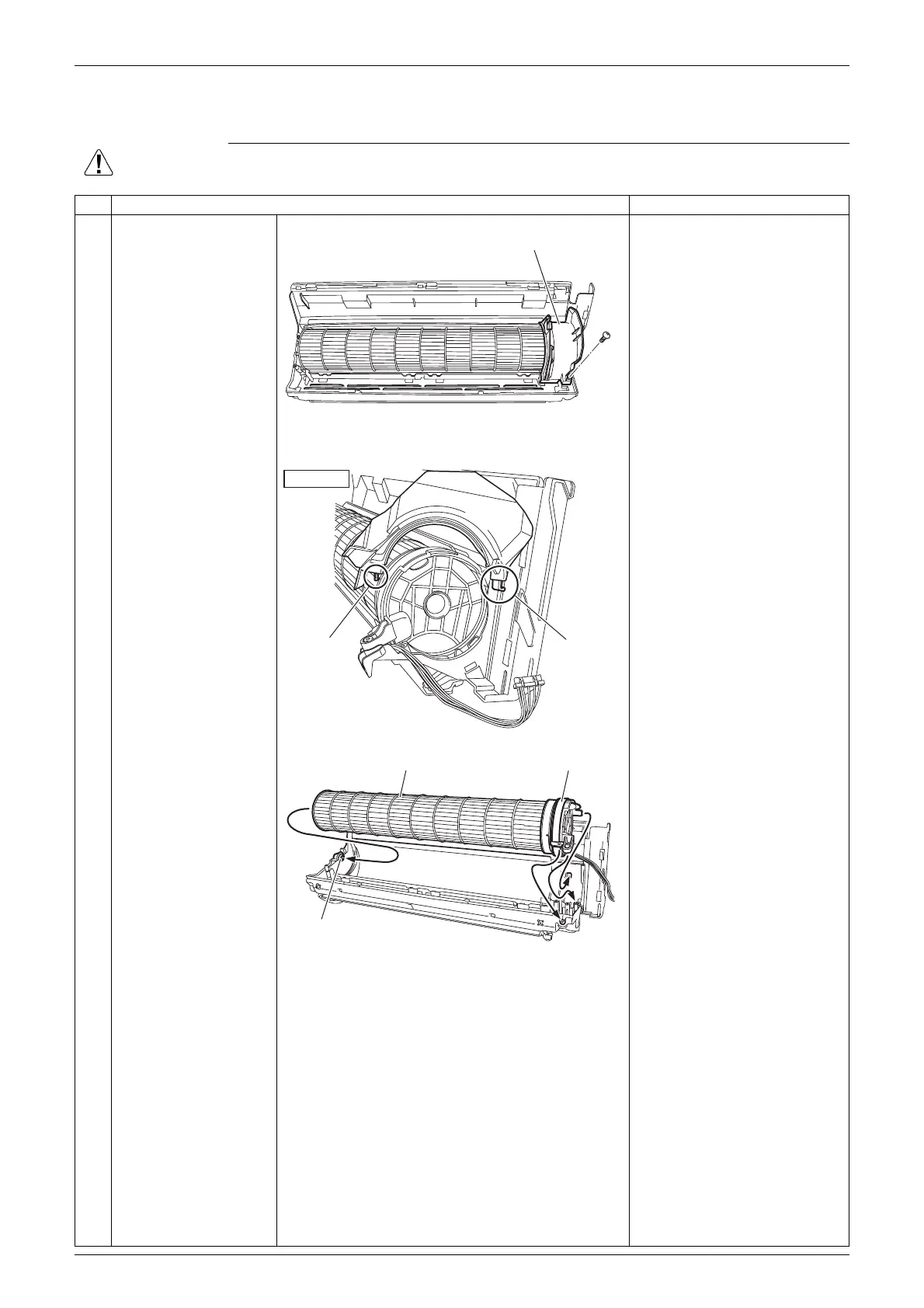

Step Procedure Points
1 Remove the screw of
the right side plate.
2 Unfasten the 2 hooks
and remove the right
side plate.
3 Remove the fan rotor/
fan motor.

When reassembling, make
sure the bushing and the 3
projections are fastened.
Right side plate
(R21039)
Hook
Hook
Right view
(R24355)
Fan motorFan rotor
Bushing
(R21860)
