Drain Pan / Swing Motors / Vertical Blade ASSYs Si041551EB
12 Removal Procedure

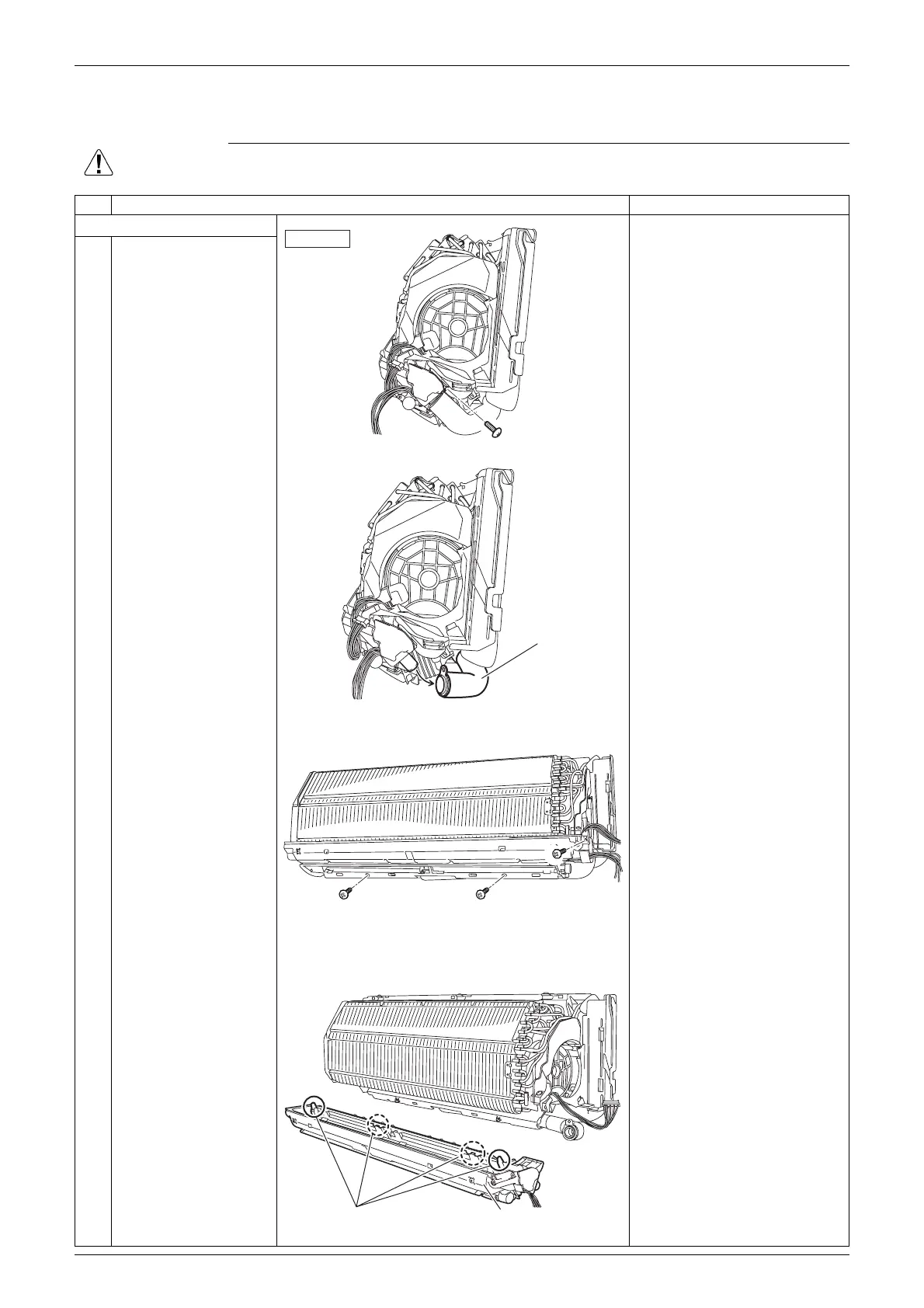

6. Drain Pan / Swing Motors / Vertical Blade ASSYs
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the drain pan.
Use a short screwdriver from
the back.
1 Lift up the indoor unit
and remove the screw.
2 Disconnect the drain
hose.
Hold the indoor unit up with a
piece of wood.
Place a plastic sheet around
the drain pan to prevent
wetting the floor with
remaining drain.
3 Remove the 3 screws.
4 Unfasten the 4 hooks
and remove the drain
pan.
Right view
(R24352)
Drain hose
(R22082)
(R22083)
Hook
Drain pan
(R22084)
To Next Page
