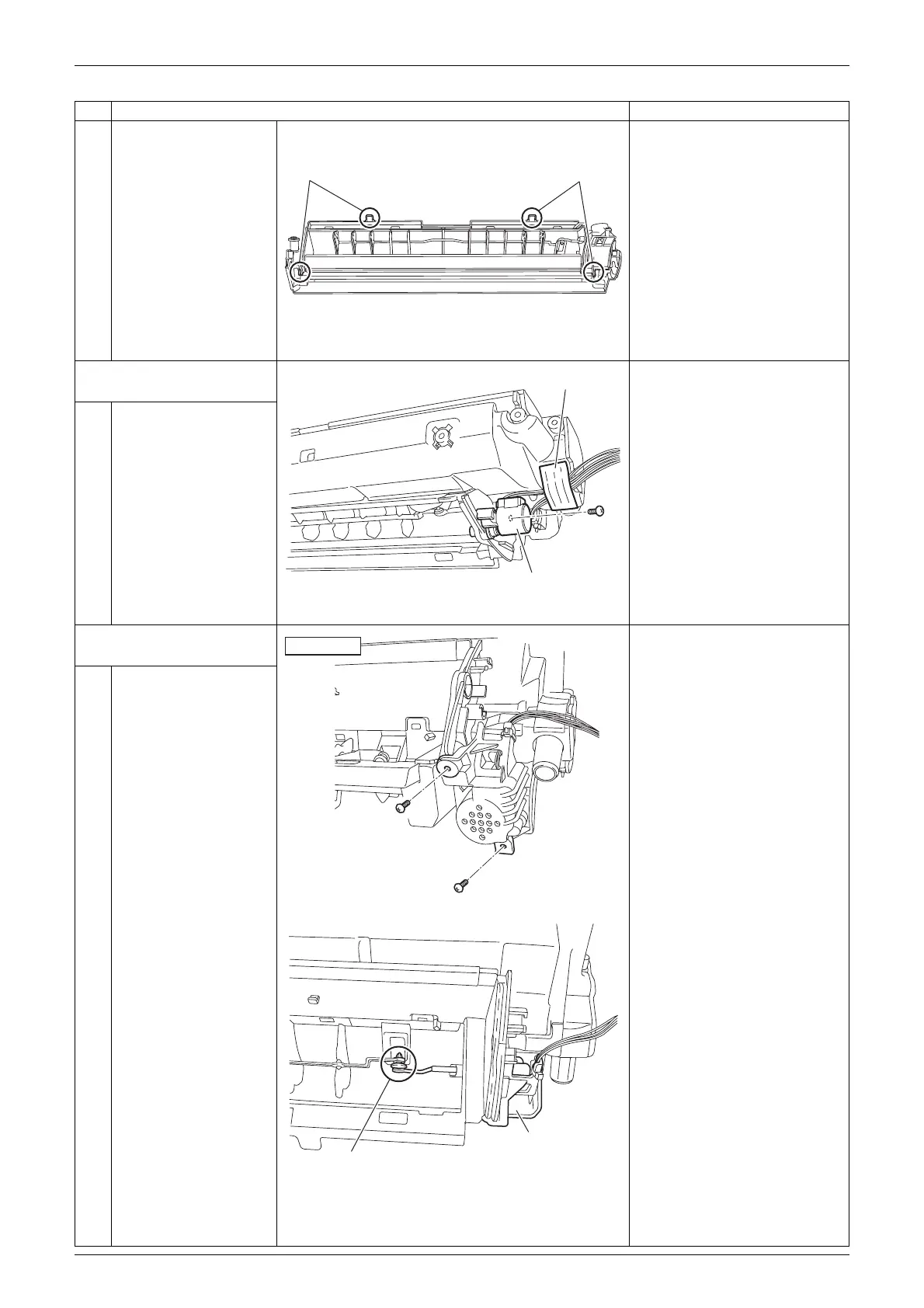

Daikin FTKM25PVM Removal Procedure

Si041551EB Drain Pan / Swing Motors / Vertical Blade ASSYs
Removal Procedure 13

When reassembling, make
sure that all the 4 hooks are
fastened.
2. Remove the swing motor
for horizontal blade.
1
2
Remove the filament
tape.
Remove the screw, and
then the swing motor
for horizontal blade.
3. Remove the swing motor
for vertical blades.

Some models do not have
the swing motor for vertical
blades.
1 Remove the 2 screws.
2 Release the shaft of the
vertical blade ASSY
from the swing motor
shaft with a flat
screwdriver and
remove the swing motor
ASSY.
Step Procedure Points
Hook Hook
(R22085)
Filament tape
Swing motor for
horizontal blade
(R22086)
Bottom view
(R24353)
Swing motor ASSY
Shaft
(R22088)
