Air Filters / Front Panel Si041551EB
2 Removal Procedure

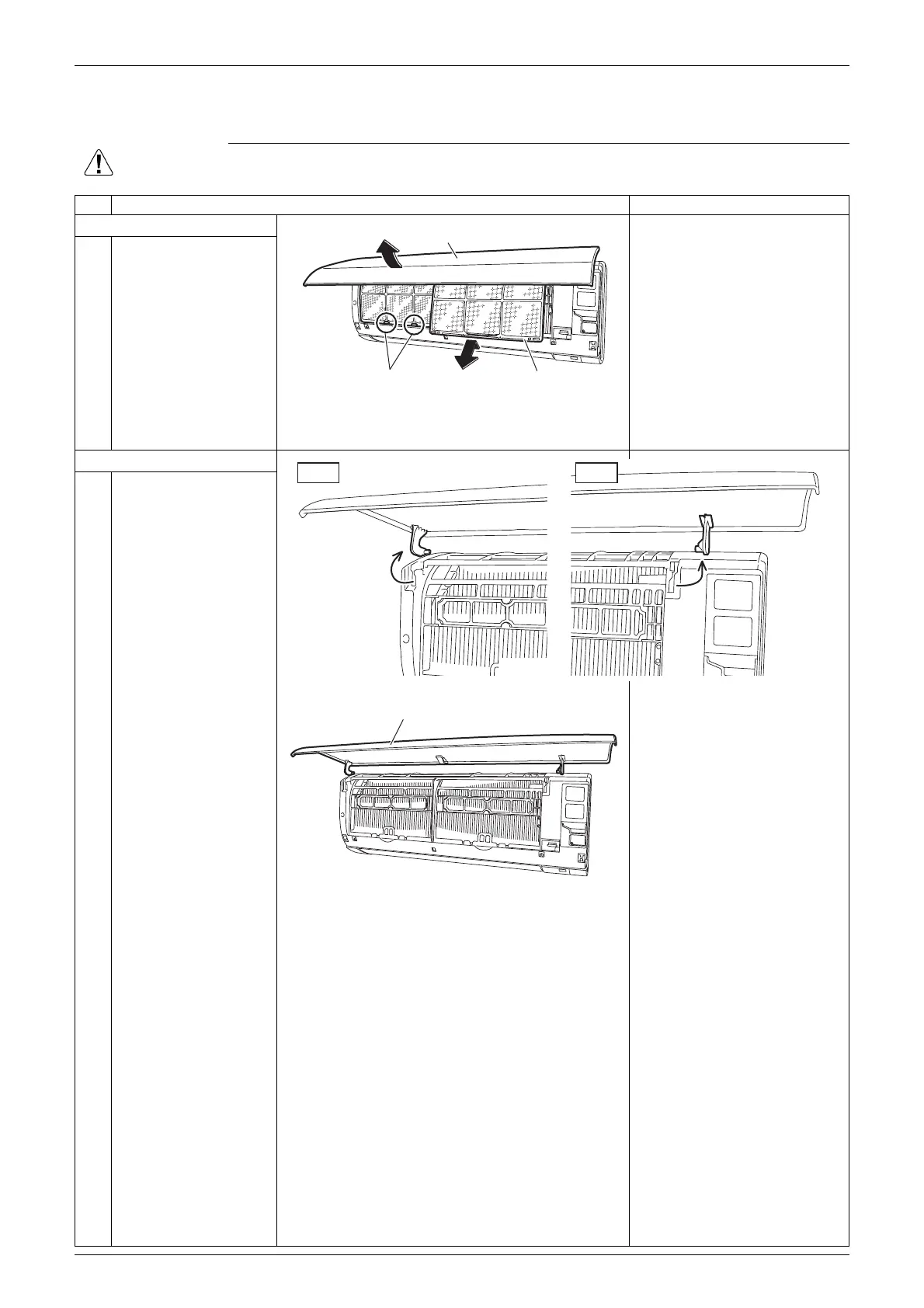

1. Air Filters / Front Panel
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the air filters.
The air filter is not marked
for difference between the
right and left sides.
When reassembling, insert
the air filter along the guides.
Insert the air filter with the
“FRONT” mark faced up.
Be sure to insert the 2 hooks
when installing the air filter.
1
2
Open the front panel.
Unfasten the 2 hooks
and pull out the air filter.
2. Remove the front panel.
1 Release the left and
right shafts.
2 Remove the front panel.
When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
in position.
Front panel
Hook Air filter
(R21000)
Left
(R23389)
Right
(R23390)
Front panel
(R21003)
To Next Page
