Daikin FTKM25PVM Removal Procedure

Horizontal Blade Si041551EB
4 Removal Procedure
3. Horizontal Blade
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

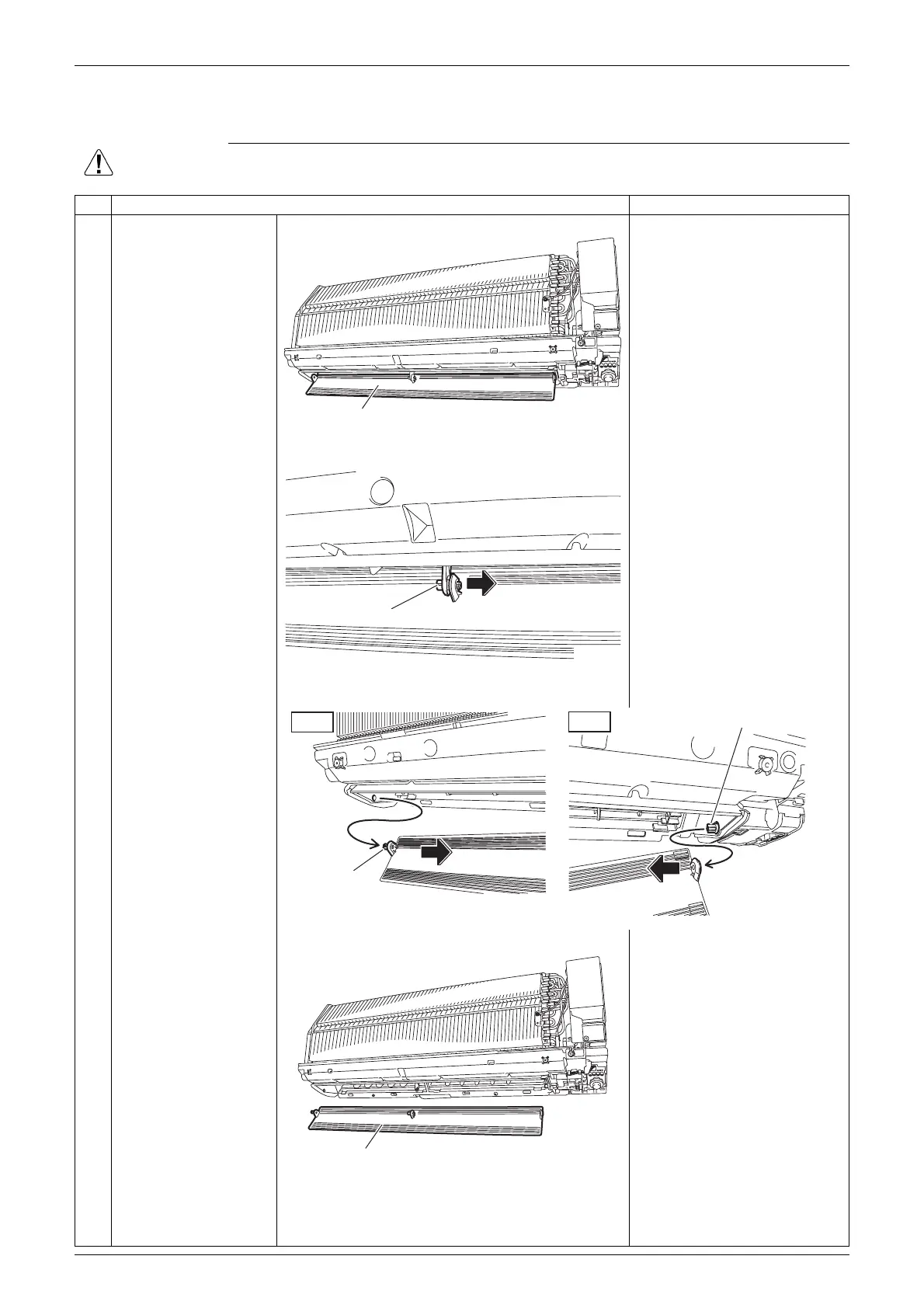

Step Procedure Points
1 Release the center
shaft while bending the
horizontal blade
slightly.

Reassembling procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
2
3
Release the left shaft.
Release the right shaft.
4 Remove the horizontal
blade.
Horizontal blade
(R22051)
Shaft
(R21007)
Shaft
Left
(R21008)
Shaft
Right
(R23391)
Horizontal blade
(R22052)
