Electrical Box Si041551EB

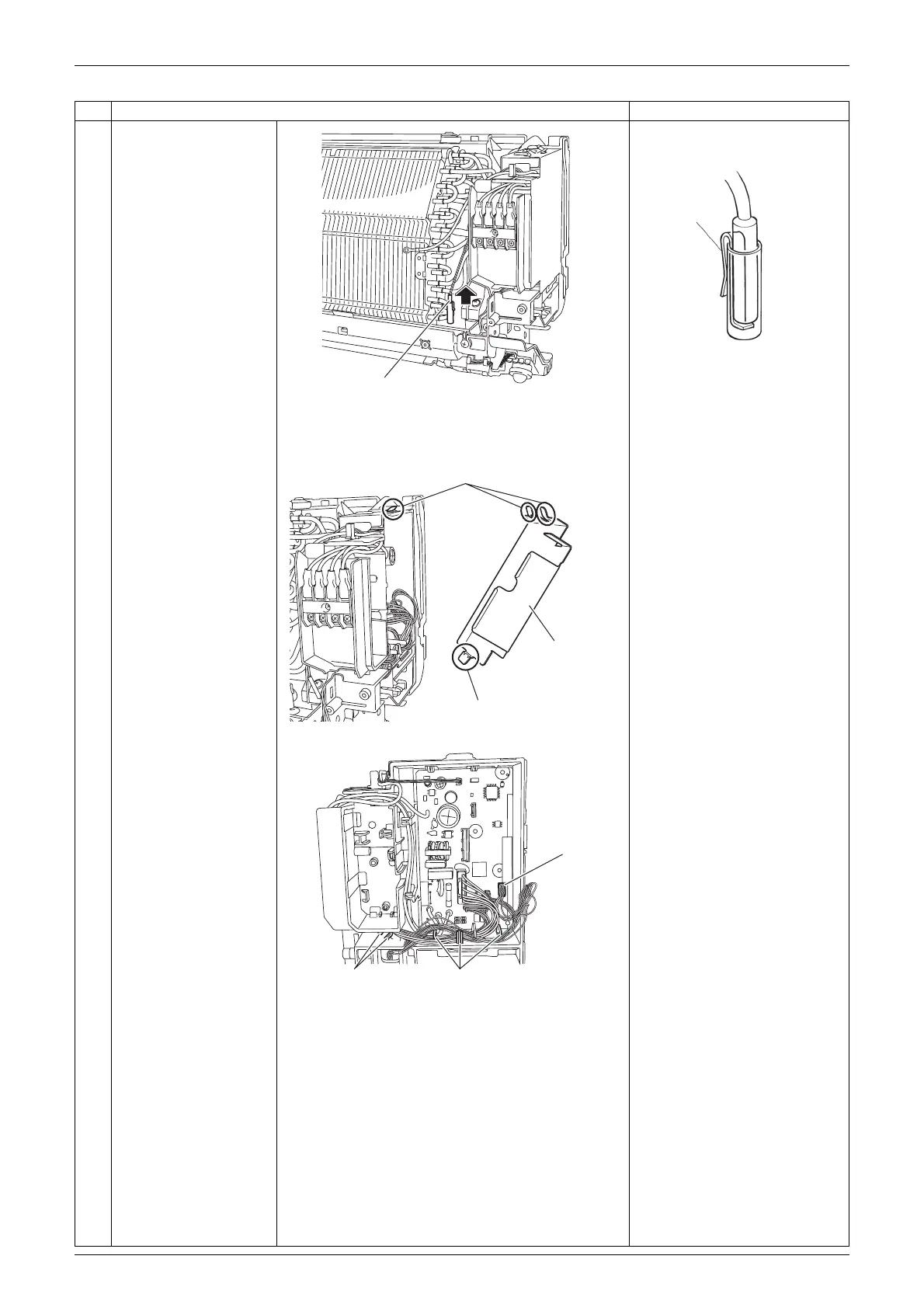

6 Removal Procedure
3 Pull out the indoor heat
exchanger thermistor.
Be careful not to lose the clip
of the thermistor.
The position of the indoor
heat exchanger thermistor
varies depending on the
model.
4 Unfasten the 4 hooks
and remove the
electrical box cover.
When reassembling, make
sure that the 4 hooks are
securely fastened.
5
6
Disconnect the
connector [S6].
Release the harnesses
from the 5 hooks.
[S6]: swing motor for horizontal
blade
Step Procedure Points
Indoor heat exchanger thermistor
(R22058)
(R11268)
Clip
Hook
Hook
Electrical box
cover
(R22059)
[S6]
Hook Hook
(R24243)
To Next Page
