Si041251EC PCBs
Removal Procedure 9
6. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

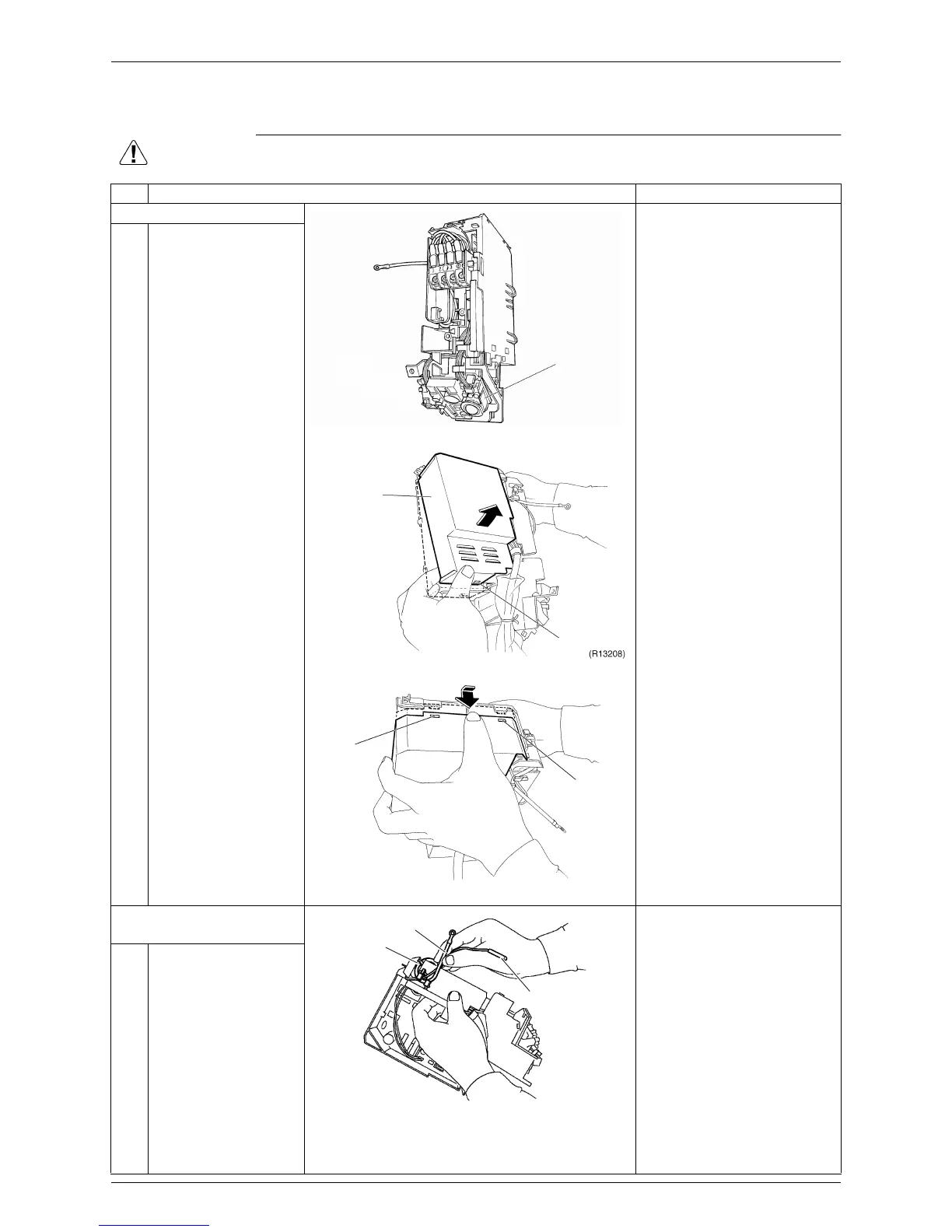

1. Remove the shield plate.
1
The figure shows the
appearance of the
electrical box.
2
Open the shield plate.
3
Push the upper center
of the shield plate and
unfasten the 2 hooks.
Remove the shield
plate.
2. Release the indoor heat
exchanger thermistor.
1
Release the indoor heat
exchanger thermistor
and the earth / ground
wire from the hooks.
Signal receiver unit
(R4350)
Shield plate
Hook
Hook
Hook
(R4352)
Earth / ground wire
Clamp
(R19206)
Indoor heat
exchanger
thermistor
