Si041251EC Horizontal Blades / Vertical Blade ASSYs

Removal Procedure 5

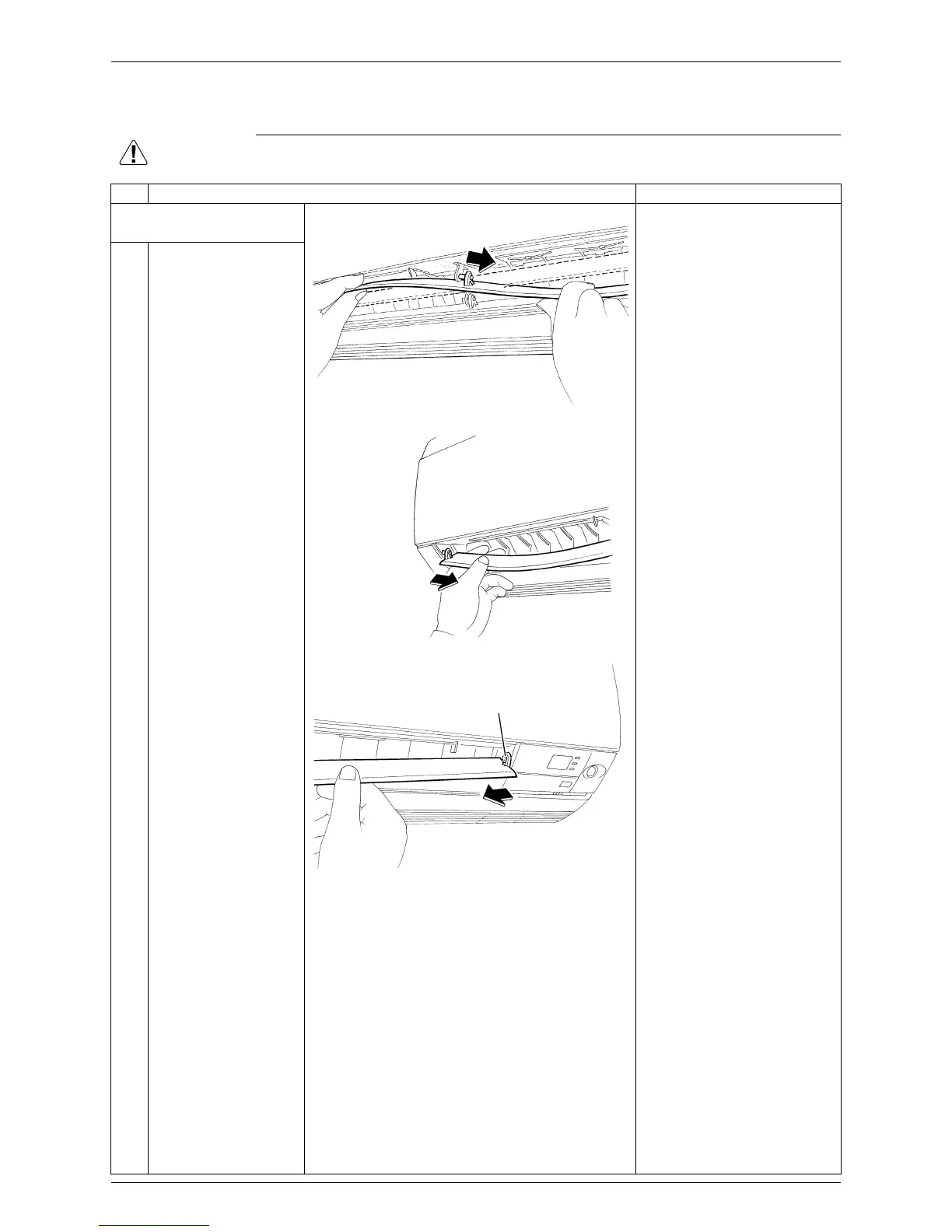

4. Horizontal Blades / Vertical Blade ASSYs

Warning



Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1. Remove the horizontal

blades.



When reassembling, mount

the large horizontal blade to

the upper position and the

small horizontal blade to the

lower position.

Do not install them in the

wrong place.

Unfasten the center

shaft while bending the

horizontal blade (upper)

slightly.

Unfasten the left shaft.

Unfasten the right shaft.

Remove the horizontal

blade (lower) in the

same way.



Installation procedure

1. Since the key pattern hook

is provided, rotate the blade

and fit it to the right shaft

first.

2. Fit the blade to the center

and left shafts.

(R4329)

(R4330)

Key alignment

(R4331)
