Daikin FTKV35NVM User Manual

Indoor Heat Exchanger Si041251EC
18 Removal Procedure
4

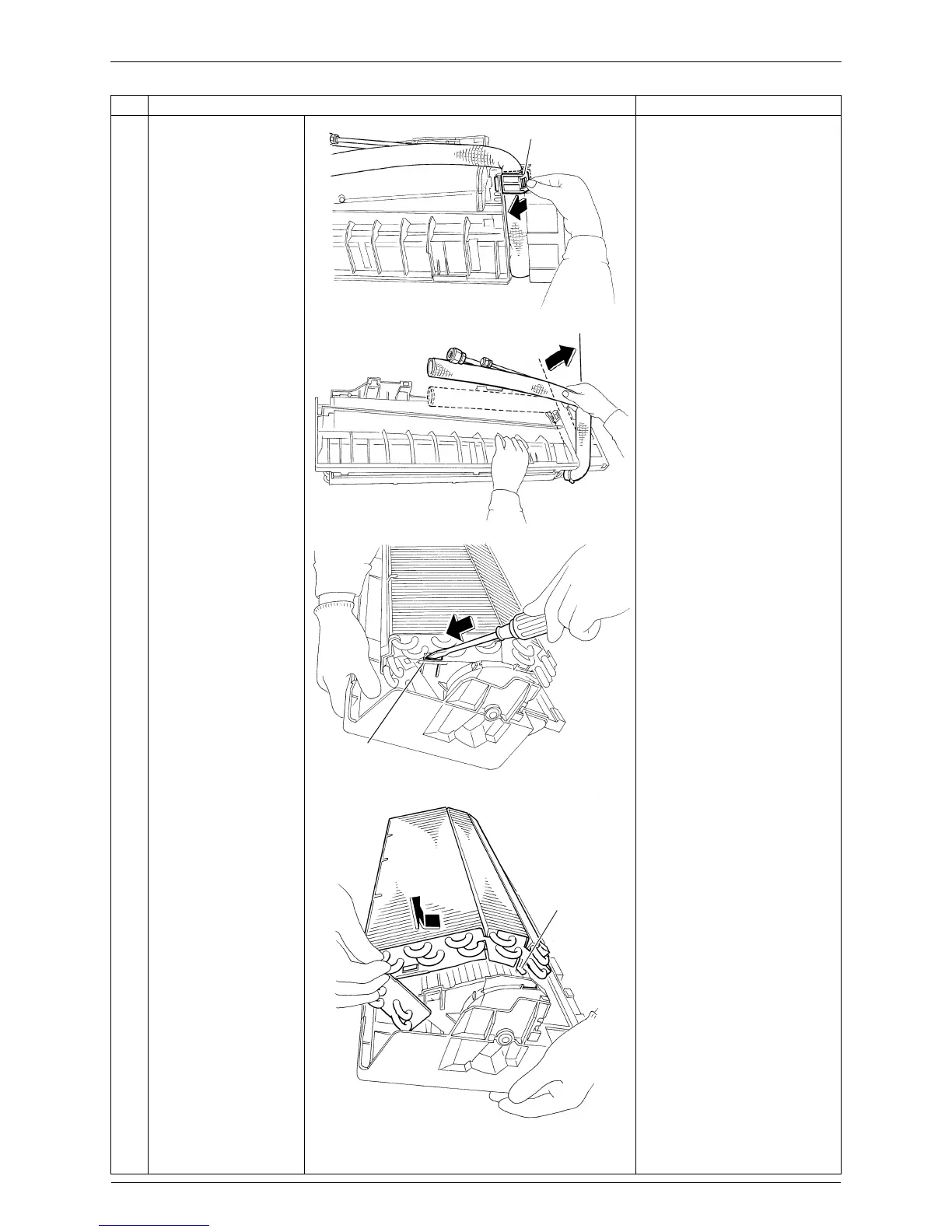

Unfasten the hook of
the piping fixture at the
back of the indoor unit
and pull out the piping.
5
Slightly widen the
auxiliary piping.
6
Unfasten the upper
hook (left) with a flat
screwdriver.
7
Unfastening the lower
hook (left), hold up the
indoor heat exchanger
by its left side and lift it
up.

When reassembling the
indoor heat exchanger,
make sure that the left
hooks are fastened.
Step Procedure Points
Piping fixture
(R4401)
(R17211)
(R17927)
Upper
hook (left)
Lower hook
(left)
(R17928)
