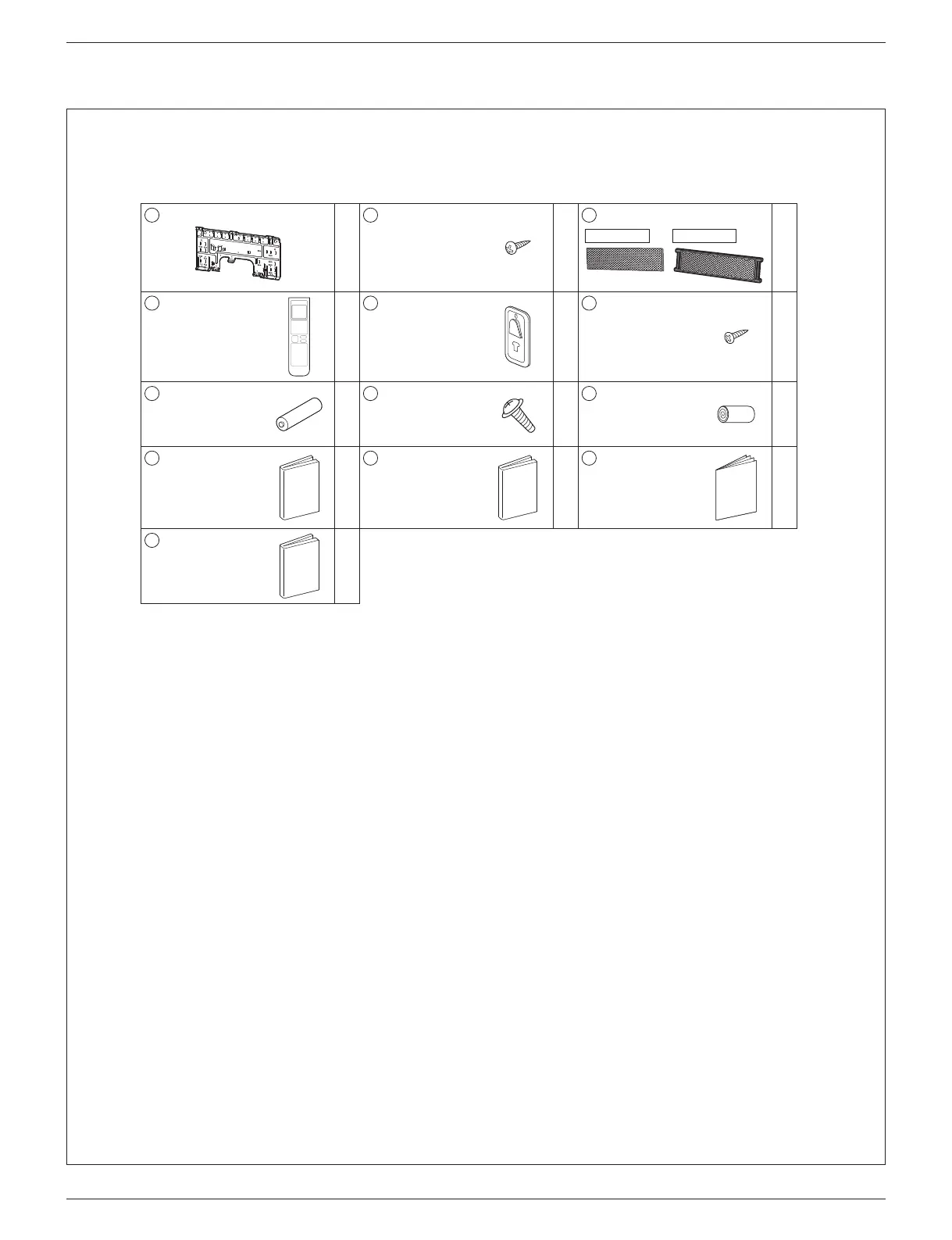

Accessories
A
Mounting plate
1
B
Mounting plate
xing screw
M4 × 1”
(M4 × 25mm)
7
C
Titanium apatite deodorizing lter
09/12 class 15 class
2
D
Wireless remote
controller
1
E
Remote controller
holder
1
F
Remote controller
holder
xing screw
M3 × 13/16”
(M3 × 20mm)
2
G
Dry battery AAA.
LR03 (alkaline)
2
H
Indoor unit xing
screw
M4 × 1/2”
(M4 × 12mm)
2
J
Insulation tape
1
K
Operation manual
1
L
Installation manual
1
M
Warranty
1
N
General safety
considerations
1
Choosing an Installation Site
• Before choosing the installation site, obtain user approval.
1. Indoor unit
• The indoor unit should be positioned in a place where:
1) the restrictions on the installation requirements specied in “Indoor Unit Installation Diagram” on page 4 are met,
2) both the air inlet and air outlet are unobstructed,
3) the unit is not exposed to direct sunlight,
4) Install so that drainage occurs easily,
5) the unit is away from sources of heat or steam,
6) there is no source of machine oil vapour (this may shorten the indoor unit service life),
7) cool/warm air is circulated throughout the room,
8) the unit is away from electronic ignition type uorescent lamps (inverter or rapid start type) as they may affect the
remote controller range,
9) the unit is at least 3.3ft (1m) away from any television or radio set (the unit may cause interference with the picture or
sound),
10) no laundry equipment is nearby.
2. Wireless remote controller
• Turn on all the uorescent lamps in the room, if any, and nd a location where the remote controller signals are properly
received by the indoor unit (within 23ft (7m)).
