ESIE16-02K | Part 5. Appendix 5.2. Wiring diagram
RA R32 Split & multi split M-Series
Page 110 31/05/21 | Version 1.1
5.2.2.11. RXJ50N

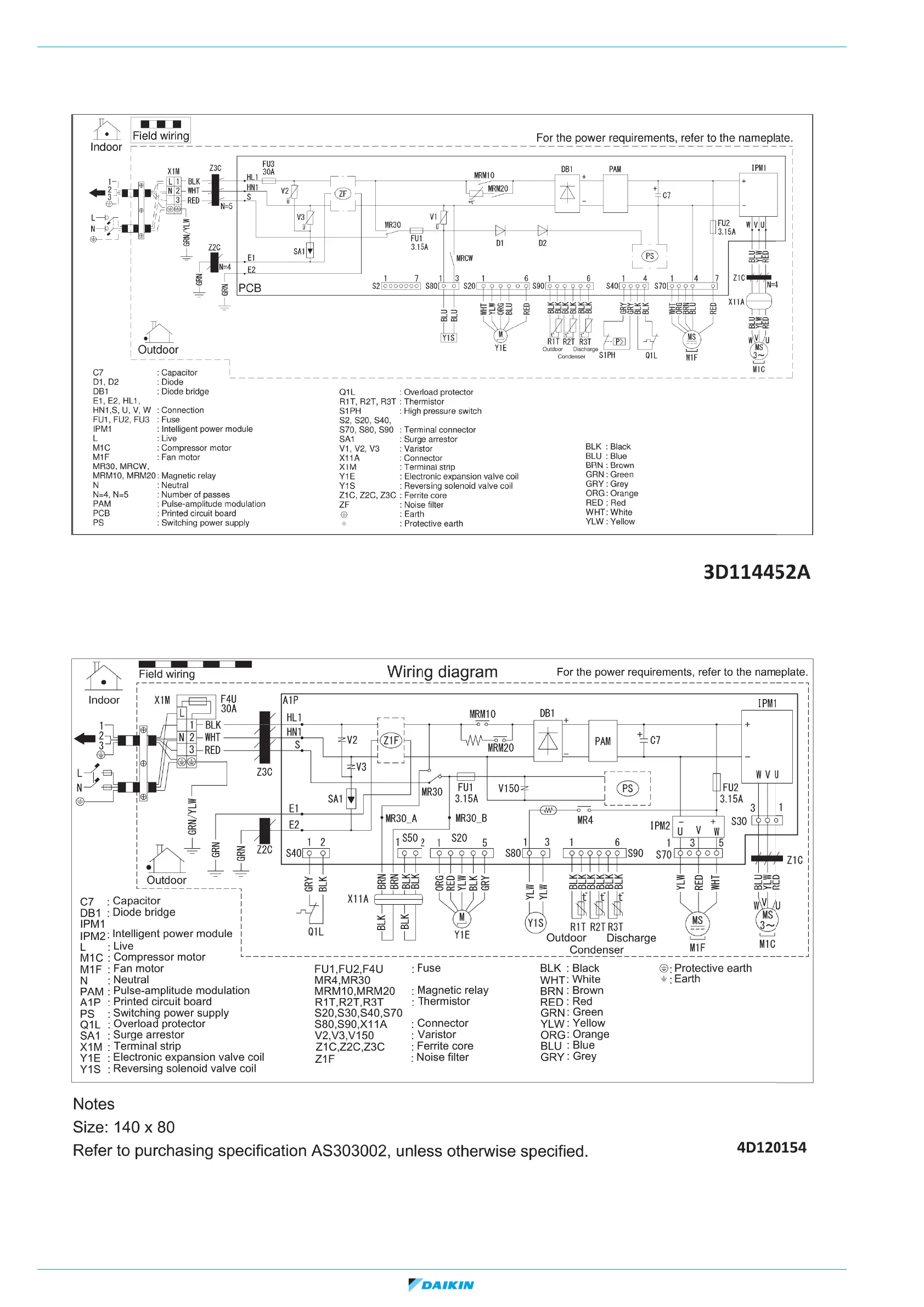

Figure 5-23: Wiring diagram - outdoor unit RXJ50N
5.2.2.12. RXM20-35N9, ARXM25-35N9
Figure 5-24: Wiring diagram - outdoor unit RXM20-35N9, ARXM25-35N9
