ESIE16-02K | Part 5. Appendix 5.3. Piping diagram
RA R32 Split & multi split M-Series
Page 124 31/05/21 | Version 1.1
5.3.2.11. RXJ50N

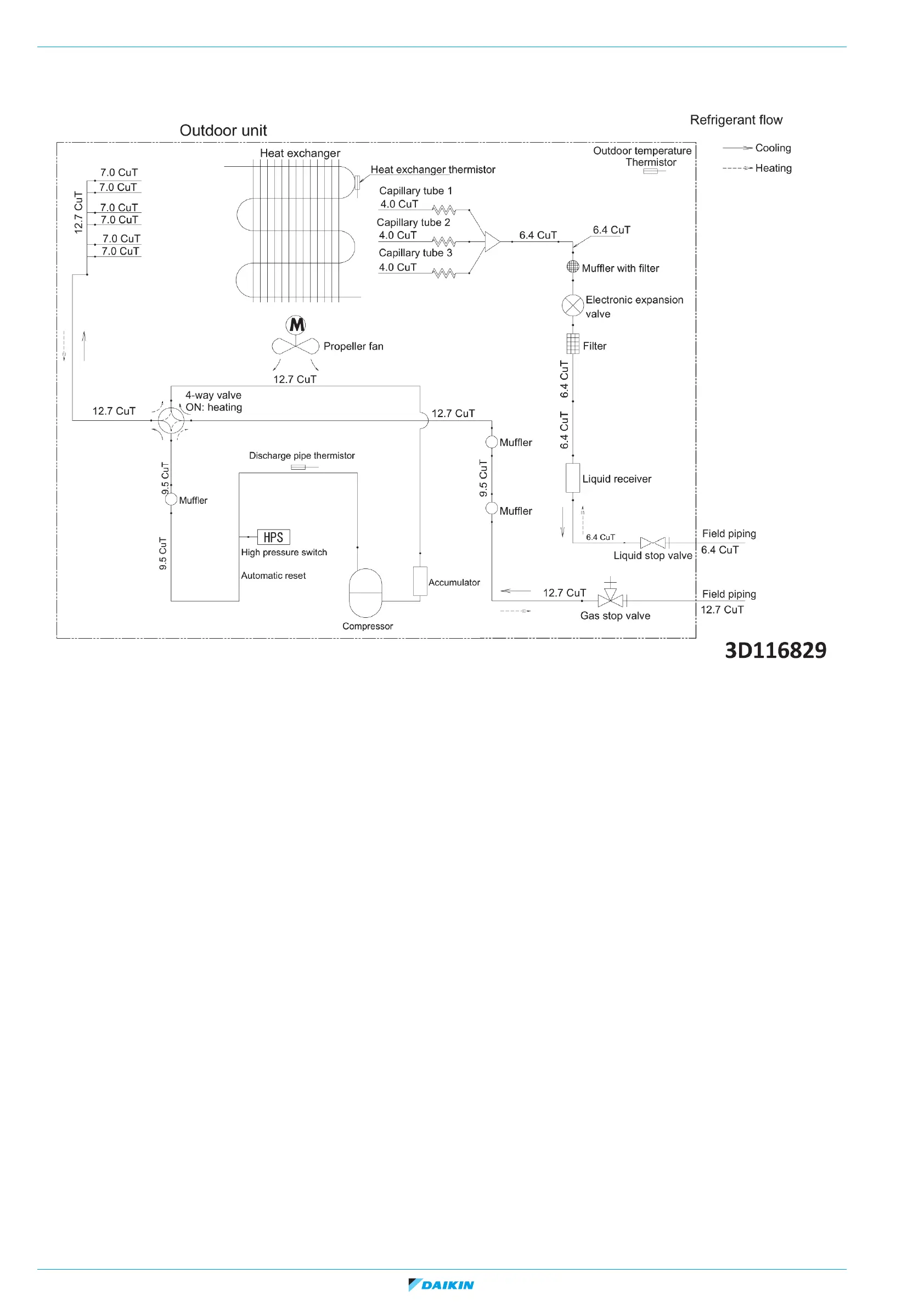

Figure 5-52: Piping diagram - outdoor unit RXJ50N
