ESIE16-02K
|
Part 5. Append
ix
5.2. Wiring diagram
RA R32 Split & multi split M-Series
Page 112
31/05/21
|
Version 1.1

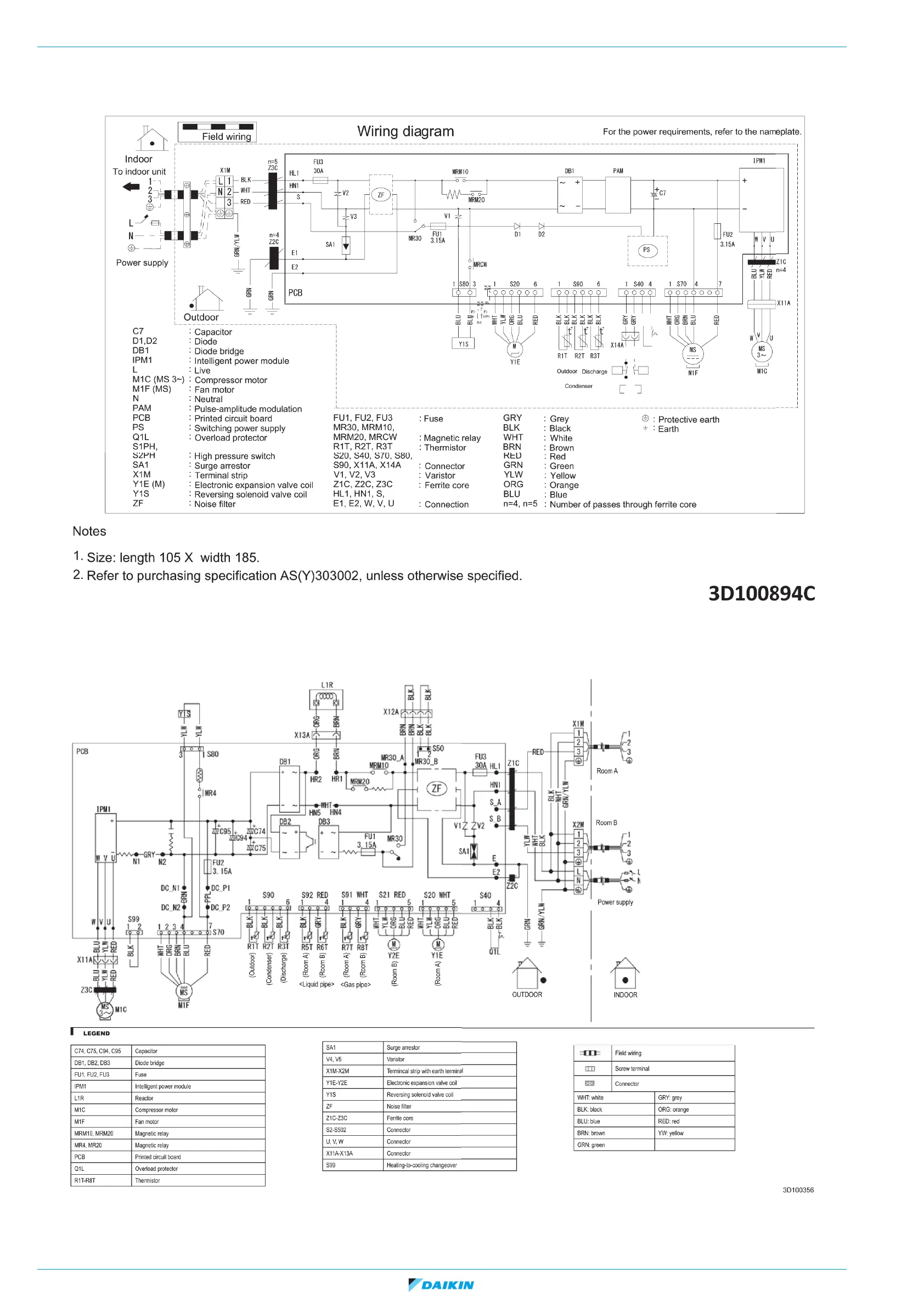

5.2.2.15. RXM71N
Figure 5-27: Wiring diag
ram - outdoor unit RXM71N
5.2.2.16. 2MXM40M
Figure 5-28: Wi
ring diagram - o
utdoor unit 2
MXM40M
111
