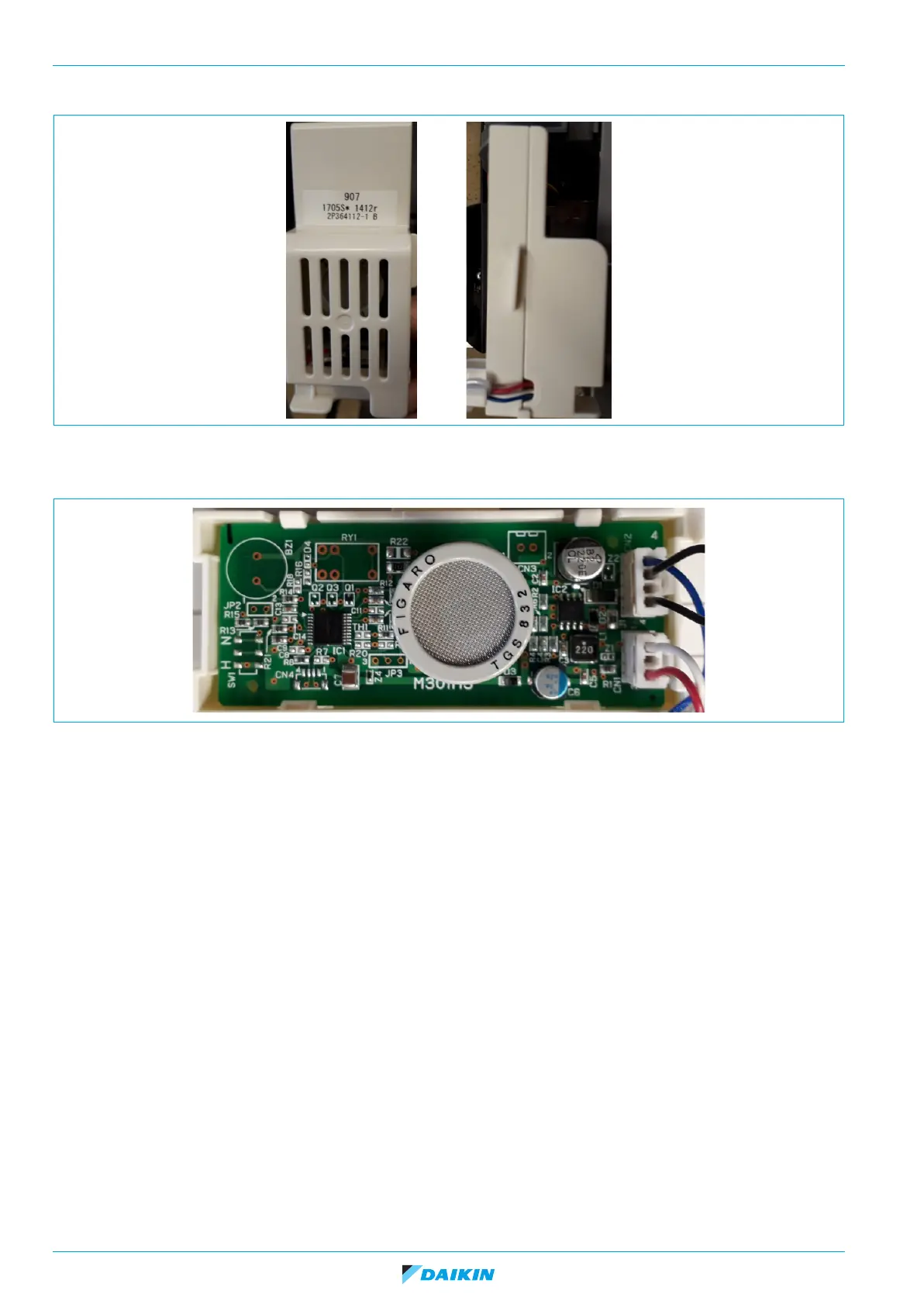

Figure 3-5: Removing casing of the sensor
4. Remove PCB connectors, put new PCB in casing.
Figure 3-6: Removing PCB connectors
Installation
1. Proceed in reverse order.
